Description
The SK40/SK50（SK40/SK50）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
SK50 High precision hydraulic mill chuck SK40 High precision hydraulic mill chuck SK50 High precision hydraulic mill chuck SK40 High precision hydraulic mill chuck
Specification
| SK50-HDC06-90L | 6 | 30 | 50 | 90 | 38.5 | 28 | 44 | M5- |
| SK50-HDC08-90L | 8 | 32 | 50 | 90 | 38.5 | 28 | 44 | M6- |
| SK50-HDC10-90L | 10 | 36 | 50 | 90 | 40.5 | 37 | 51 | M8- |
| SK50-HDC12-90L | 12 | 38 | 50 | 90 | 40.5 | 37 | 51 | M8- |
| SK50-HDC14-90L | 14 | 40 | 50 | 90 | 40.5 | 41 | 52 | M12- |
| SK50-HDC16-90L | 16 | 42 | 50 | 90 | 40.5 | 41 | 52 | M12- |
| SK50-HDC20-90L | 20 | 4 | 50 | 90 | 40.8 | 41 | 53 | M12- |
| SK50-HDC25-110L | 25 | 52 | 57 | 110 | 60 | 49 | 65 | M8- |
| SK50-HDC32-110L | 32 | 63 | 63 | 110 | 91 | 52 | 65 | M8- |
| SK40-HDC06-80.5L | 6 | 30 | 50 | 80.5 | 38 | 28 | 44 | M5- |
| SK40-HDC08-80.5L | 8 | 32 | 50 | 80.5 | 38 | 28 | 44 | M6- |
| SK40-HDC10-80.5L | 10 | 36 | 50 | 80.5 | 40 | 37 | 51 | M8- |
| SK40-HDC12-80.5L | 12 | 38 | 50 | 80.5 | 40 | 37 | 51 | M8- |
| SK40-HDC16-80.5L | 16 | 42 | 50 | 80.5 | 41 | 41 | 52 | M12- |
| SK40-HDC20-80.5L | 20 | 42 | 50 | 80.5 | 41 | 41 | 53 | M12- |
| SK50-HDC06-90L | 6 | 30 | 50 | 90 | 38.5 | 28 | 44 | M5- |
| SK50-HDC08-90L | 8 | 32 | 50 | 90 | 38.5 | 28 | 44 | M6- |
| SK50-HDC10-90L | 10 | 36 | 50 | 90 | 40.5 | 37 | 51 | M8- |
| SK50-HDC12-90L | 12 | 38 | 50 | 90 | 40.5 | 37 | 51 | M8- |
| SK50-HDC14-90L | 14 | 40 | 50 | 90 | 40.5 | 41 | 52 | M12- |
| SK50-HDC16-90L | 16 | 42 | 50 | 90 | 40.5 | 41 | 52 | M12- |
| SK50-HDC20-90L | 20 | 4 | 50 | 90 | 40.8 | 41 | 53 | M12- |
| SK50-HDC25-110L | 25 | 52 | 57 | 110 | 60 | 49 | 65 | M8- |
| SK50-HDC32-110L | 32 | 63 | 63 | 110 | 91 | 52 | 65 | M8- |
| SK40-HDC06-80.5L | 6 | 30 | 50 | 80.5 | 38 | 28 | 44 | M5- |
| SK40-HDC08-80.5L | 8 | 32 | 50 | 80.5 | 38 | 28 | 44 | M6- |
| SK40-HDC10-80.5L | 10 | 36 | 50 | 80.5 | 40 | 37 | 51 | M8- |
| SK40-HDC12-80.5L | 12 | 38 | 50 | 80.5 | 40 | 37 | 51 | M8- |
| SK40-HDC16-80.5L | 16 | 42 | 50 | 80.5 | 41 | 41 | 52 | M12- |
| SK40-HDC20-80.5L | 20 | 42 | 50 | 80.5 | 41 | 41 | 53 | M12- |

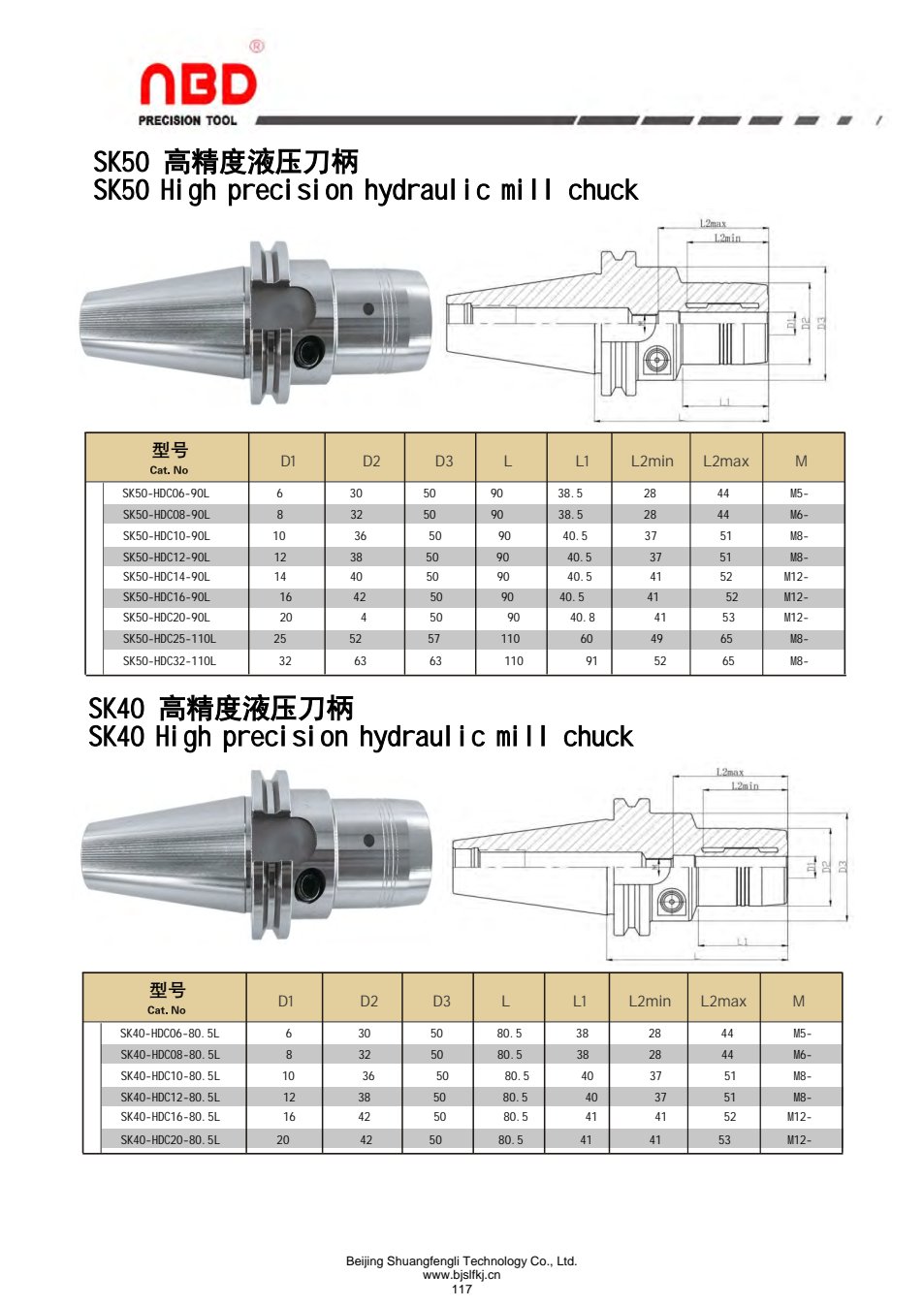

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
