BT-TER-B Rigid Tension-Comp Tapping Holder M3-M20

Tapping chuck/holder M2-M16 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 15 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: BT30-TER16-B-100 Category: Tags: , , , ,

Description

The BT-TER-B Rigid Tension-Comp Tapping Holder M3-M20 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M2-M16 with 15 catalogue models.

Features

  • 本体规格：JIS MAS 403 BT
  • Spindle Conicity Standard: JIS MAS 403 BT
  • Rigid function ensures machining center spindle rotate in
  • Can be replaced by ER collet for gripping cutting tool,Drill bit,
  • Don’t lock excessively of the clamping nut in case of damage,

Model Naming

Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

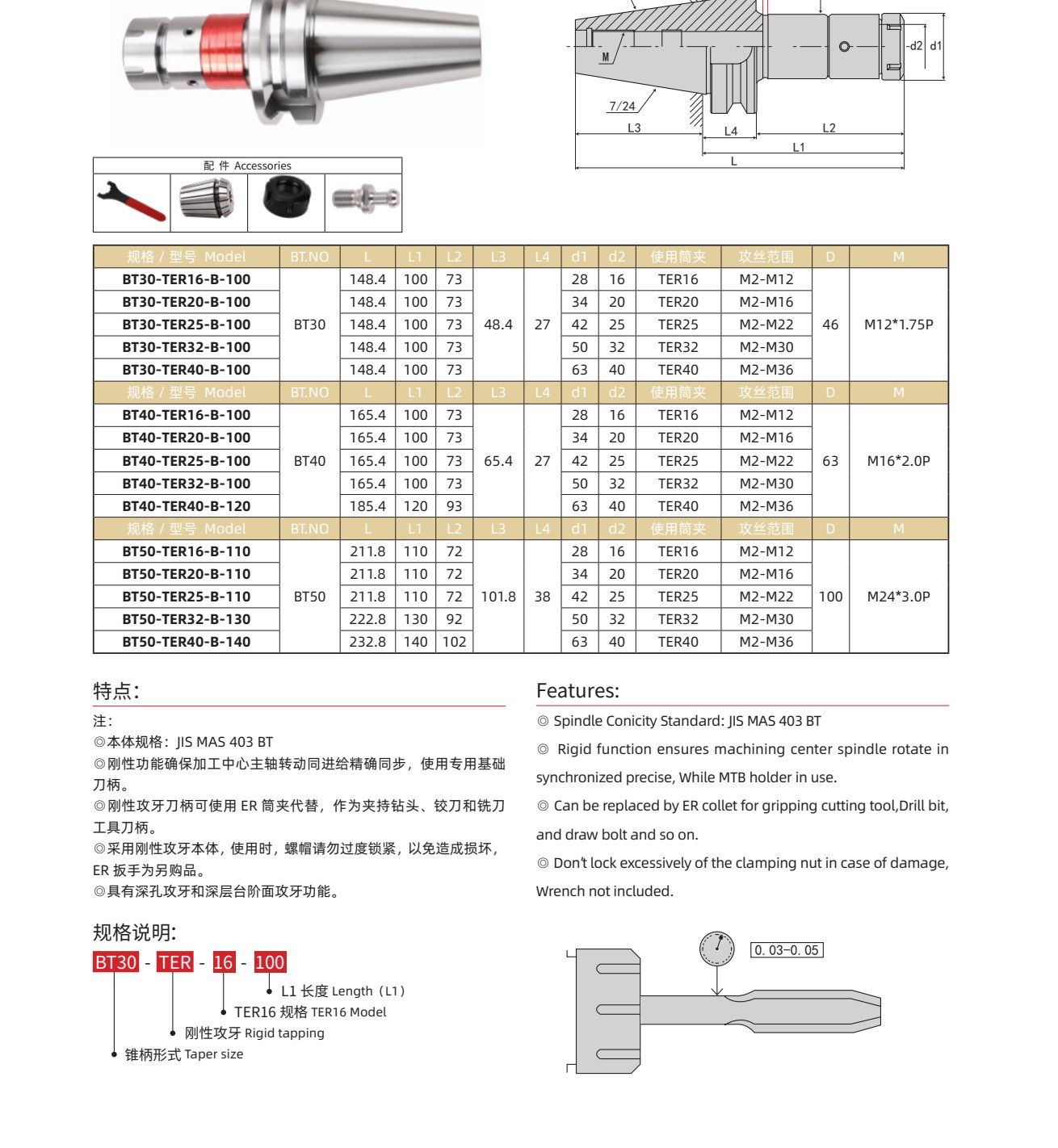

Specification

Model Spec Dimensions (mm)
BT30-TER16-B-100
BT30-TER20-B-100 148.4 100 73 34 20 TER20 M2-M16
BT30-TER25-B-100 148.4 100 73 42 25 TER25 M2-M22
BT30-TER32-B-100 148.4 100 73 50 32 TER32 M2-M30
BT30-TER40-B-100 148.4 100 73 63 40 TER40 M2-M36
BT40-TER16-B-100
BT40-TER20-B-100 165.4 100 73 34 20 TER20 M2-M16
BT40-TER25-B-100 165.4 100 73 42 25 TER25 M2-M22
BT40-TER32-B-100 165.4 100 73 50 32 TER32 M2-M30
BT40-TER40-B-120 185.4 120 93 63 40 TER40 M2-M36
BT50-TER16-B-110
BT50-TER20-B-110 211.8 110 72 34 20 TER20 M2-M16
BT50-TER25-B-110 211.8 110 72 42 25 TER25 M2-M22
BT50-TER32-B-130 222.8 130 92 50 32 TER32 M2-M30
BT50-TER40-B-140 232.8 140 102 63 40 TER40 M2-M36

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

BT30, BT40, BT50
Tapping Range

M2-M16
