SK-WF Tapping Chuck with Length Compensation M3-M33

Tapping chuck/holder M3-M12 for tapping with length compensation on machining centers and CNC mills. 8 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: SK30-WF12-67 Category: Tags: , , , , , ,

Description

The SK-WF Tapping Chuck with Length Compensation M3-M33 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tapping with length compensation on machining centers and CNC mills. Tapping range M3-M12 with 8 catalogue models.

Model Naming

Model = Shank size (e.g. BT30) + WF (length-compensation function code) + collet size (WF12/WF20/WF33) + L1 length.

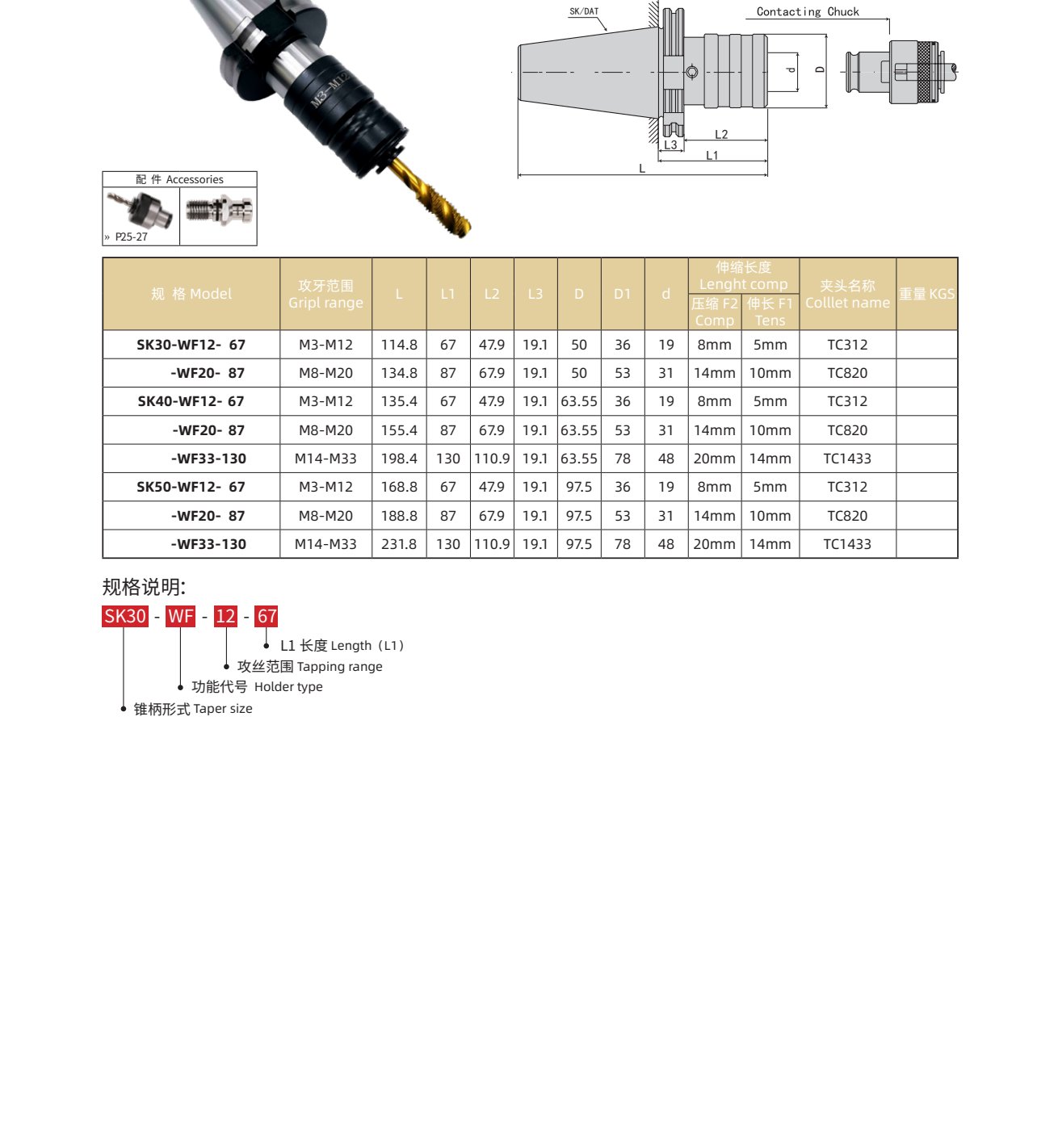

Specification

Model Spec Dimensions (mm)
SK30-WF12-67 M3-M12 114.8 67 47.9 19.1 50 36 19 8mm 5mm TC312
SK30-WF20-87 M8-M20 134.8 87 67.9 19.1 50 53 31 14mm 10mm TC820
SK40-WF12-67 M3-M12 135.4 67 47.9 19.1 63.55 36 19 8mm 5mm TC312
SK40-WF20-87 M8-M20 155.4 87 67.9 19.1 63.55 53 31 14mm 10mm TC820
SK40-WF33-130 M14-M33 198.4 130 110.9 19.1 63.55 78 48 20mm 14mm TC1433
SK50-WF12-67 M3-M12 168.8 67 47.9 19.1 97.5 36 19 8mm 5mm TC312
SK50-WF20-87 M8-M20 188.8 87 67.9 19.1 97.5 53 31 14mm 10mm TC820
SK50-WF33-130 M14-M33 231.8 130 110.9 19.1 97.5 78 48 20mm 14mm TC1433

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

C1433, C312, C820, SK30, SK40, SK50
Tapping Range

M3-M12
