MTB-GT Morse Taper (Pull-Stud) Tapping Chuck M3-M42
Tapping chuck/holder M3-M16 for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. 8 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The MTB-GT Morse Taper (Pull-Stud) Tapping Chuck M3-M42 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. Tapping range M3-M16 with 8 catalogue models.
Features
- Spindle conicity standard: MORSE TAPER(Drawing Thread
- Torque overload protection protects screw blank from
- Have floating, quick change and torque protection
- Used on drill machines, tapping machines, borers, lathes
- Tapping range: M3-M42.
Model Naming
Model = Shank size (e.g. BT30) + GT (tension-compression function code) + collet size (GT12/GT24/GT42 = tapping range M16/M30/M42 max) + L1 length.

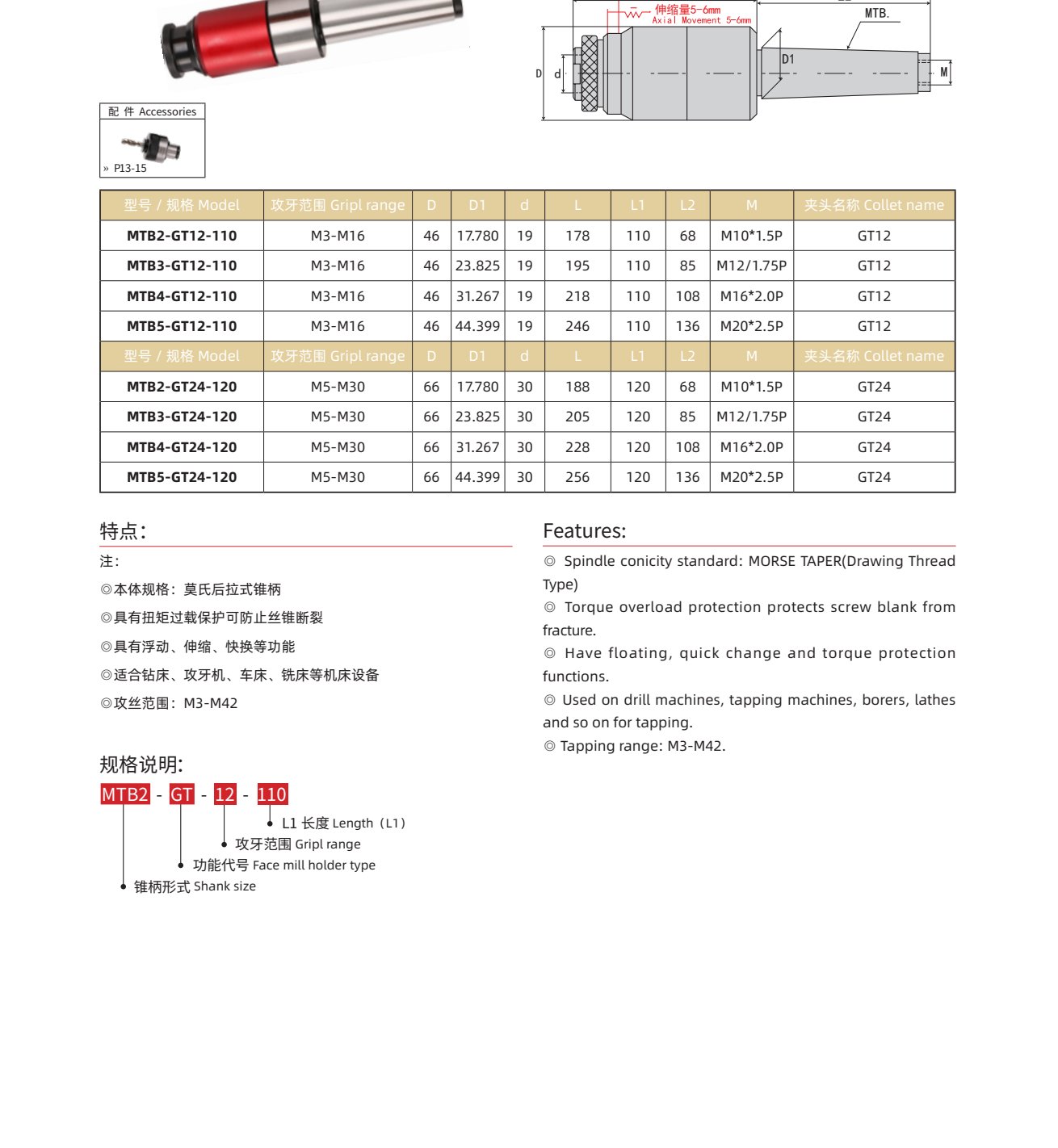

Specification
| Model | Spec | Dimensions (mm) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MTB2-GT12-110 | M3-M16 | 46 | 17.780 | 19 | 178 | 110 | 68 | M10*1.5P | GT12 |
| MTB3-GT12-110 | M3-M16 | 46 | 23.825 | 19 | 195 | 110 | 85 | M12/1.75P | GT12 |
| MTB4-GT12-110 | M3-M16 | 46 | 31.267 | 19 | 218 | 110 | 108 | M16*2.0P | GT12 |
| MTB5-GT12-110 | M3-M16 | 46 | 44.399 | 19 | 246 | 110 | 136 | M20*2.5P | GT12 |
| MTB2-GT24-120 | M5-M30 | 66 | 17.780 | 30 | 188 | 120 | 68 | M10*1.5P | GT24 |
| MTB3-GT24-120 | M5-M30 | 66 | 23.825 | 30 | 205 | 120 | 85 | M12/1.75P | GT24 |
| MTB4-GT24-120 | M5-M30 | 66 | 31.267 | 30 | 228 | 120 | 108 | M16*2.0P | GT24 |
| MTB5-GT24-120 | M5-M30 | 66 | 44.399 | 30 | 256 | 120 | 136 | M20*2.5P | GT24 |
All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Interface / Taper | MTB2, MTB3, MTB4, MTB5 |
|---|---|
| Tapping Range | M3-M16 |
