C-TER-A Straight Shank Rigid Tension-Comp Tapping Holder

Tapping chuck/holder M3-M10 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 13 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: C16-TER16-A-125 Category: Tags: , , , ,

Description

The C-TER-A Straight Shank Rigid Tension-Comp Tapping Holder is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M3-M10 with 13 catalogue models.

Model Naming

Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

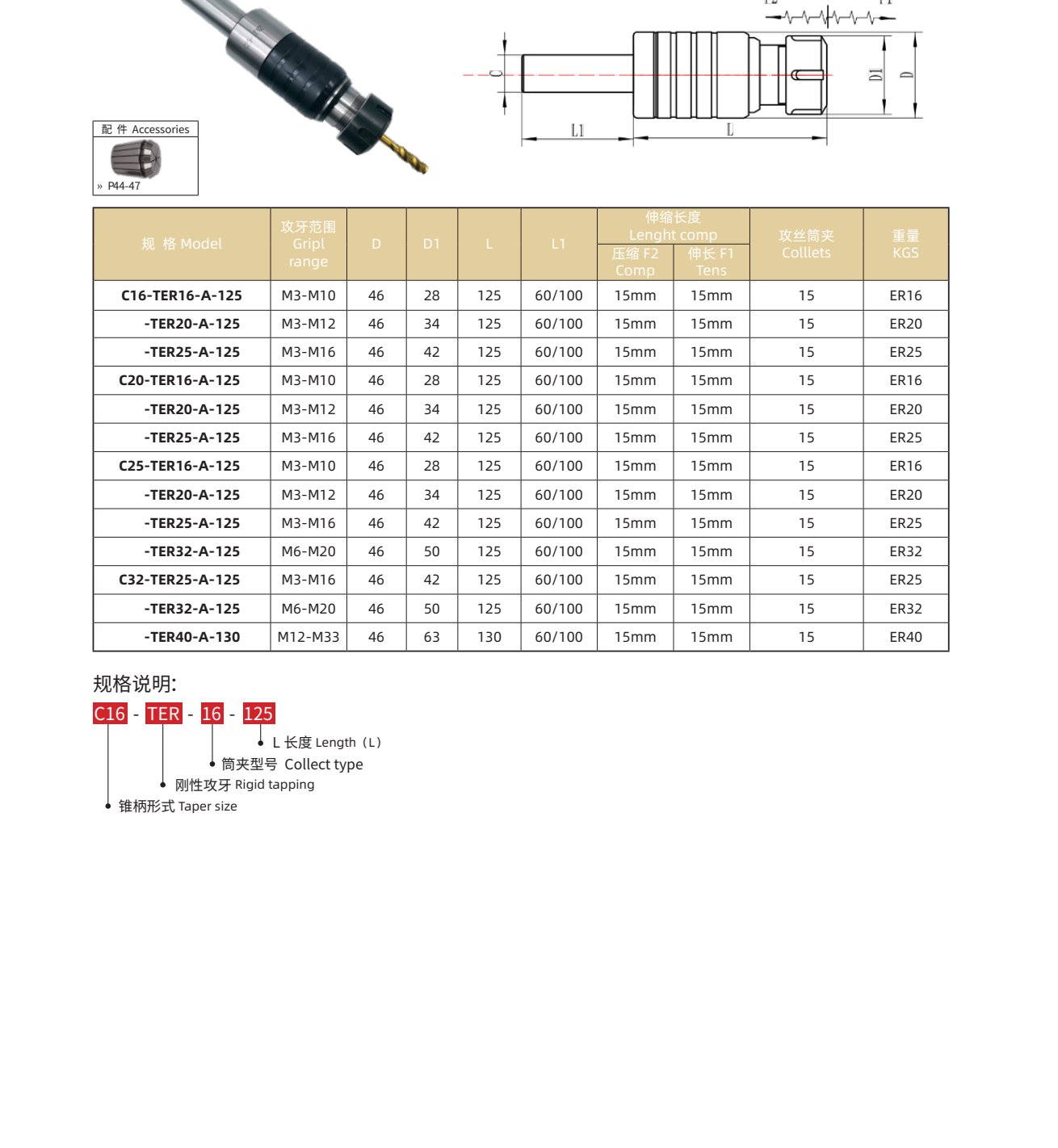

Specification

Model Spec Dimensions (mm)
C16-TER16-A-125 M3-M10 46 28 125 60/100 15mm 15mm 15 ER16
C16-TER20-A-125 M3-M12 46 34 125 60/100 15mm 15mm 15 ER20
C16-TER25-A-125 M3-M16 46 42 125 60/100 15mm 15mm 15 ER25
C20-TER16-A-125 M3-M10 46 28 125 60/100 15mm 15mm 15 ER16
C20-TER20-A-125 M3-M12 46 34 125 60/100 15mm 15mm 15 ER20
C20-TER25-A-125 M3-M16 46 42 125 60/100 15mm 15mm 15 ER25
C25-TER16-A-125 M3-M10 46 28 125 60/100 15mm 15mm 15 ER16
C25-TER20-A-125 M3-M12 46 34 125 60/100 15mm 15mm 15 ER20
C25-TER25-A-125 M3-M16 46 42 125 60/100 15mm 15mm 15 ER25
C25-TER32-A-125 M6-M20 46 50 125 60/100 15mm 15mm 15 ER32
C32-TER25-A-125 M3-M16 46 42 125 60/100 15mm 15mm 15 ER25
C32-TER32-A-125 M6-M20 46 50 125 60/100 15mm 15mm 15 ER32
C32-TER40-A-130 M12-M33 46 63 130 60/100 15mm 15mm 15 ER40

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

C16, C20, C25, C32
Tapping Range

M3-M10
