GT Inner-Taper Tension-Compression Tapping Chuck M3-M42

Tapping chuck/holder M3-M16 for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. 9 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: B12-GT12 Category: Tags: , , ,

Description

The GT Inner-Taper Tension-Compression Tapping Chuck M3-M42 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tension-compression tapping with torque overload protection on drill presses, tapping machines, lathes and mills. Tapping range M3-M16 with 9 catalogue models.

Features

  • Torque overload protection protects screw blank from
  • Have floating, quick change and torque protection
  • Used on drill machines, tapping machines, borers, lathes
  • Tapping range: M3-M42.

Model Naming

Model = Shank size (e.g. BT30) + GT (tension-compression function code) + collet size (GT12/GT24/GT42 = tapping range M16/M30/M42 max) + L1 length.

Specification

Model Spec Dimensions (mm)

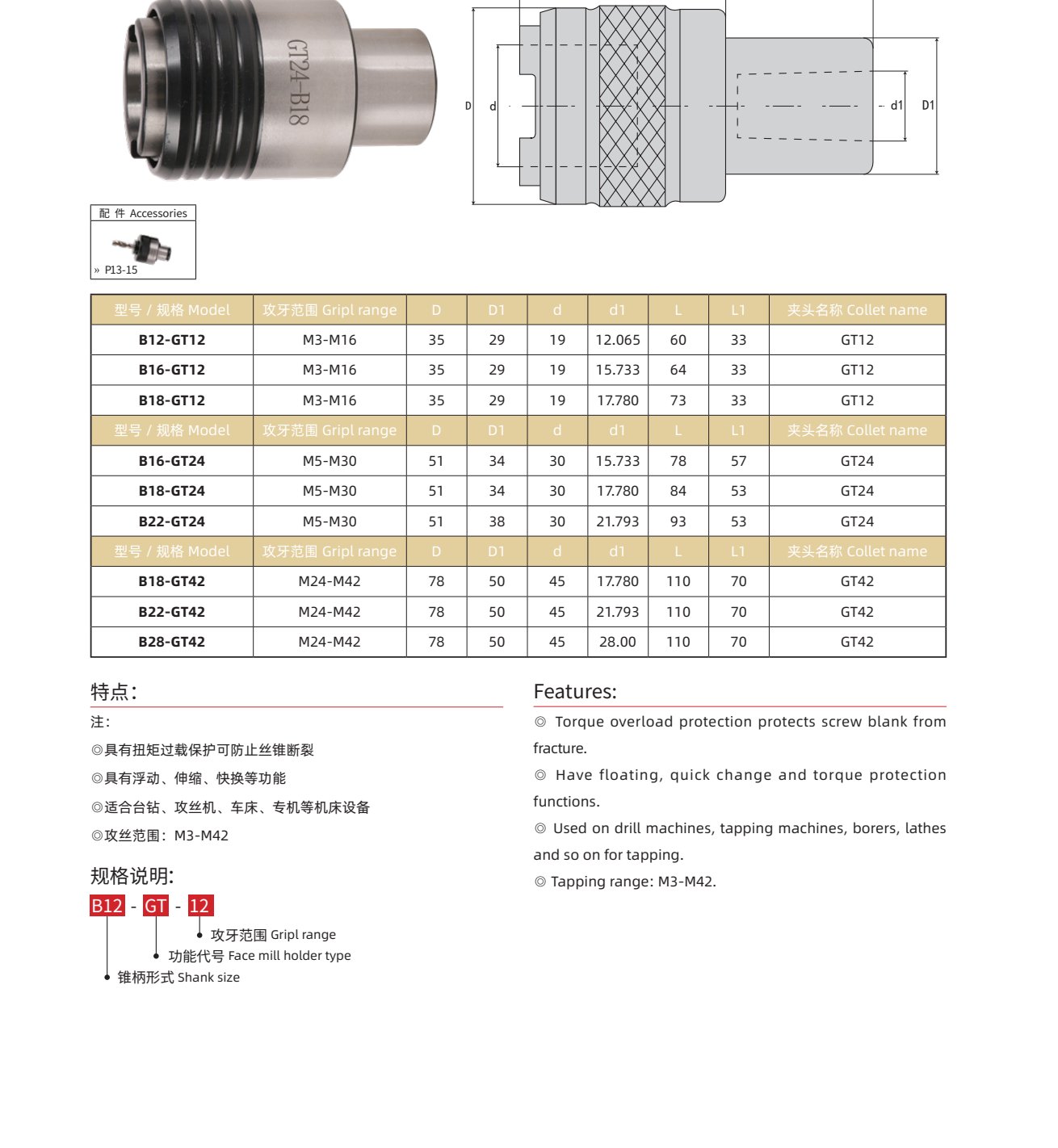

B12-GT12 M3-M16 35 29 19 12.065 60 33 GT12
B16-GT12 M3-M16 35 29 19 15.733 64 33 GT12
B18-GT12 M3-M16 35 29 19 17.780 73 33 GT12
B16-GT24 M5-M30 51 34 30 15.733 78 57 GT24
B18-GT24 M5-M30 51 34 30 17.780 84 53 GT24
B22-GT24 M5-M30 51 38 30 21.793 93 53 GT24
B18-GT42 M24-M42 78 50 45 17.780 110 70 GT42
B22-GT42 M24-M42 78 50 45 21.793 110 70 GT42
B28-GT42 M24-M42 78 50 45 28.00 110 70 GT42

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.
