HSK-WF Tapping Chuck with Length Compensation M3-M33

Tapping chuck/holder M3-M12 for tapping with length compensation on machining centers and CNC mills. 14 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK40A-WF12-80 Category: Tags: , , , , , ,

Description

The HSK-WF Tapping Chuck with Length Compensation M3-M33 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for tapping with length compensation on machining centers and CNC mills. Tapping range M3-M12 with 14 catalogue models.

Model Naming

Model = Shank size (e.g. BT30) + WF (length-compensation function code) + collet size (WF12/WF20/WF33) + L1 length.

Specification

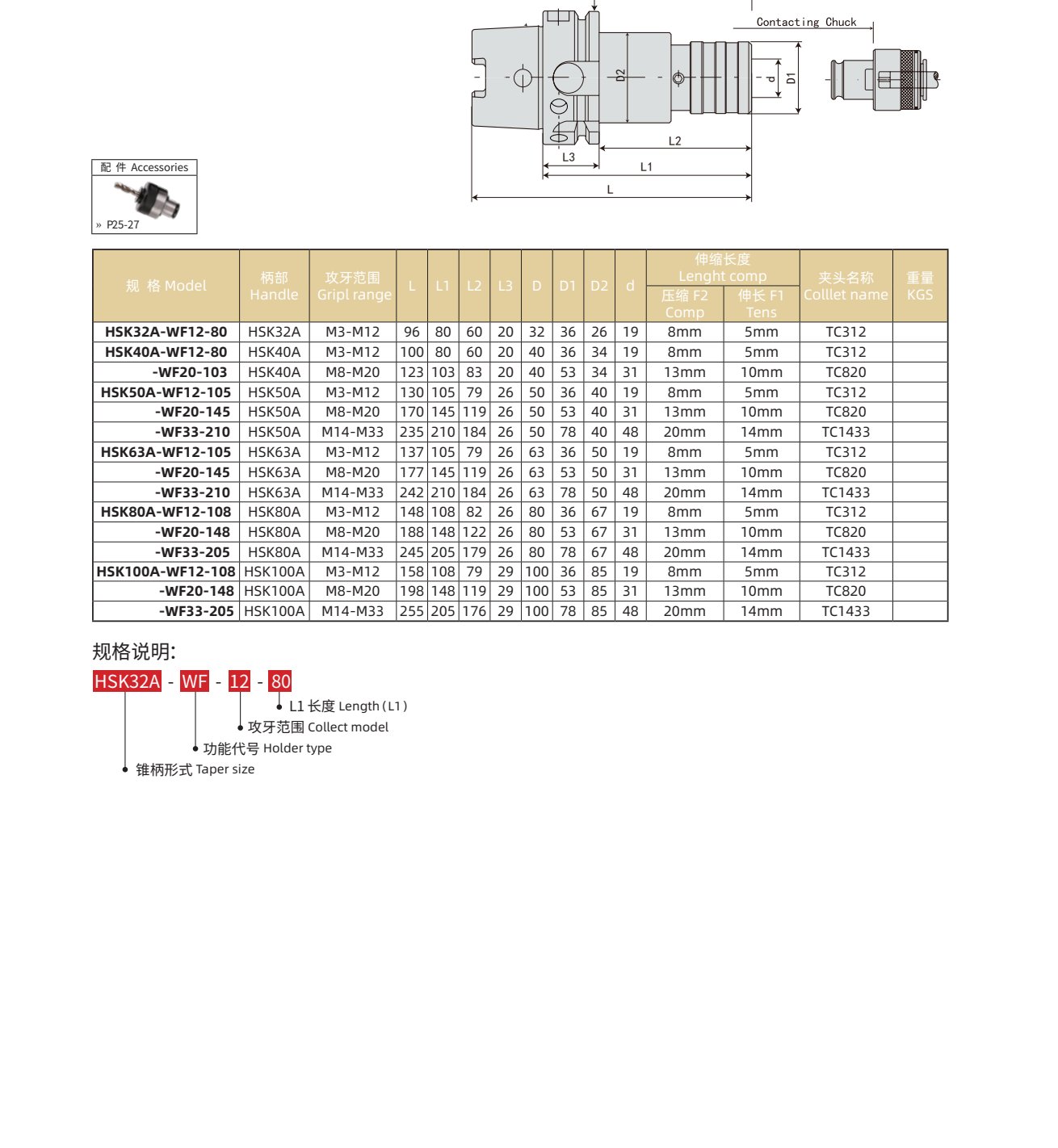

Model Spec Dimensions (mm)
HSK40A-WF12-80 HSK40A M3-M12 100 80 60 20 40 36 34 19 8mm 5mm TC312
HSK40A-WF20-103 HSK40A M8-M20 123 103 83 20 40 53 34 31 13mm 10mm TC820
HSK50A-WF12-105 HSK50A M3-M12 130 105 79 26 50 36 40 19 8mm 5mm TC312
HSK50A-WF20-145 HSK50A M8-M20 170 145 119 26 50 53 40 31 13mm 10mm TC820
HSK50A-WF33-210 HSK50A M14-M33 235 210 184 26 50 78 40 48 20mm 14mm TC1433
HSK63A-WF12-105 HSK63A M3-M12 137 105 79 26 63 36 50 19 8mm 5mm TC312
HSK63A-WF20-145 HSK63A M8-M20 177 145 119 26 63 53 50 31 13mm 10mm TC820
HSK63A-WF33-210 HSK63A M14-M33 242 210 184 26 63 78 50 48 20mm 14mm TC1433
HSK80A-WF12-108 HSK80A M3-M12 148 108 82 26 80 36 67 19 8mm 5mm TC312
HSK80A-WF20-148 HSK80A M8-M20 188 148 122 26 80 53 67 31 13mm 10mm TC820
HSK80A-WF33-205 HSK80A M14-M33 245 205 179 26 80 78 67 48 20mm 14mm TC1433
HSK100A-WF12-108 HSK100A M3-M12 158 108 79 29 100 36 85 19 8mm 5mm TC312
HSK100A-WF20-148 HSK100A M8-M20 198 148 119 29 100 53 85 31 13mm 10mm TC820
HSK100A-WF33-205 HSK100A M14-M33 255 205 176 29 100 78 85 48 20mm 14mm TC1433

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

C1433, C312, C820, HSK100A, HSK40A, HSK50A, HSK63A, HSK80A
Tapping Range

M3-M12
