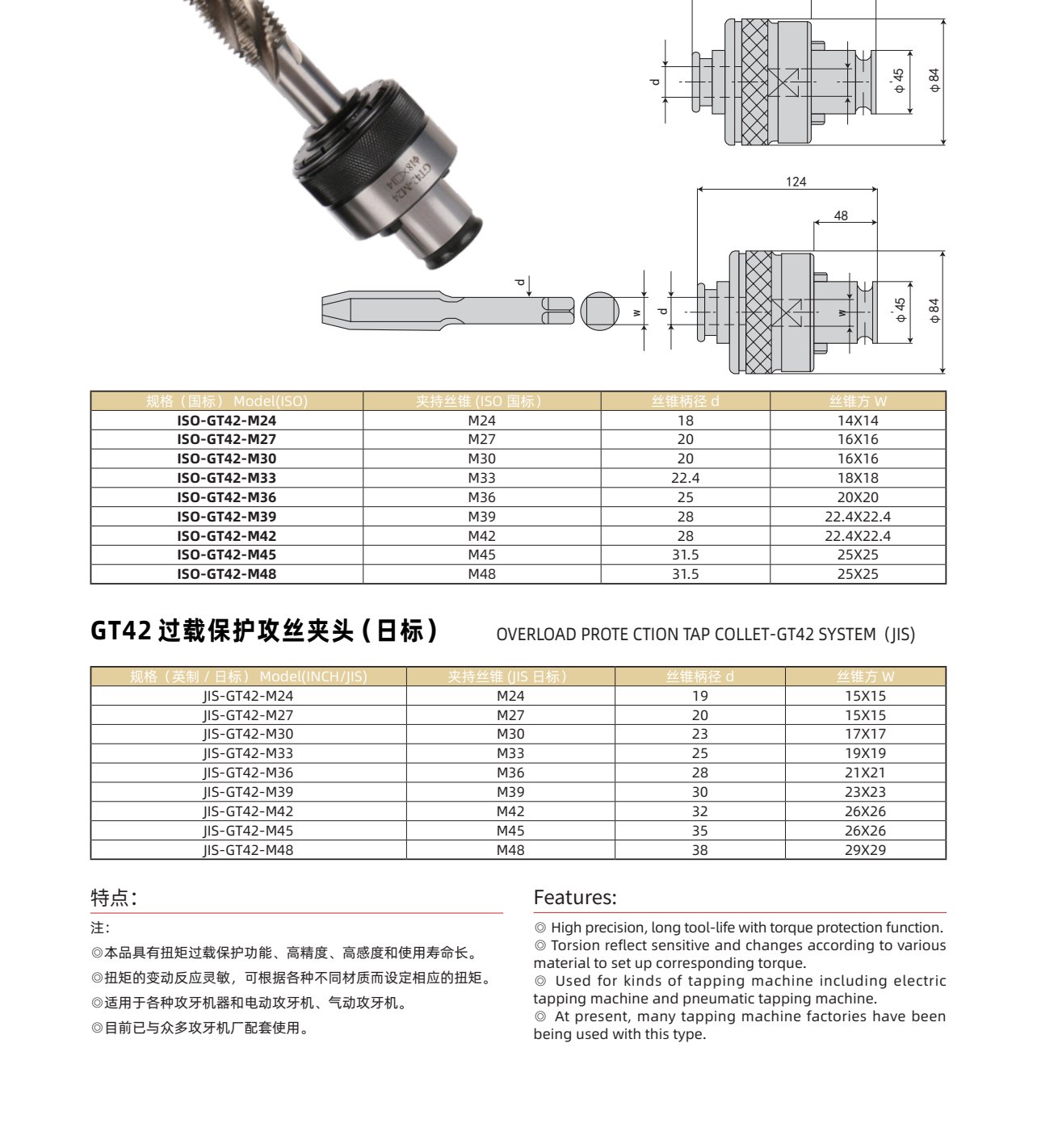

GT42 Overload Protection Tap Collet M24-M42 (ISO/JIS)

Name: GT42 Overload Protection Tap Collet M24-M42 (ISO/JIS)
Brand: NBD
SKU: ISO-GT42-M24
Availability: InStock

Description

The GT42 Overload Protection Tap Collet M24-M42 (ISO/JIS) is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for quick-change tap holding with overload protection. Tapping range M24-M42 with 18 catalogue models.

Features

High precision, long tool-life with torque protection function.
Torsion reflect sensitive and changes according to various
Used for kinds of tapping machine including electric
At present, many tapping machine factories have been

Model Naming

Model = Standard prefix (ISO/JIS) + collet size (GT12/GT24/GT42 or TC312/TC820/TC1433) + tap size (e.g. M12); d = tap shank dia., W = tap square.

Specification

Model	Spec	Dimensions (mm)
ISO-GT42-M24	M24	18	14X14
ISO-GT42-M27	M27	20	16X16
ISO-GT42-M30	M30	20	16X16
ISO-GT42-M33	M33	22.4	18X18
ISO-GT42-M36	M36	25	20X20
ISO-GT42-M39	M39	28	22.4X22.4
ISO-GT42-M42	M42	28	22.4X22.4
ISO-GT42-M45	M45	31.5	25X25
ISO-GT42-M48	M48	31.5	25X25
JIS-GT42-M24	M24	19	15X15
JIS-GT42-M27	M27	20	15X15
JIS-GT42-M30	M30	23	17X17
JIS-GT42-M33	M33	25	19X19
JIS-GT42-M36	M36	28	21X21
JIS-GT42-M39	M39	30	23X23
JIS-GT42-M42	M42	32	26X26
JIS-GT42-M45	M45	35	26X26
JIS-GT42-M48	M48	38	29X29

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper	—
Tapping Range	M24-M42

GT42 Overload Protection Tap Collet M24-M42 (ISO/JIS)
