HSK-E Slim From C — 薄壁C型
HSK-E Slim From C（薄壁C型）— NBD 铣削刀具刀柄 series. 50 spec rows in catalogue. Factory-direct, custom sizes on request.
Description
The HSK-E Slim From C（薄壁C型）is part of NBD’s 铣削刀具刀柄 line. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
Specification
| HSK-E | Shrink | chuck | 3°slim | form | C | ||||
| HSK32E-SFA3-50-M22 | 3 | 6 | 50 | 22 | 8 | 8.3 | 20 | 9 | 42 |
| HSK32E-SFA3-70-M42 | 3 | 6 | 70 | 42 | 8 | 10.4 | 20 | 9 | 62 |
| HSK32E-SFA3-85-M42 | 3 | 6 | 85 | 42 | 23 | 10.4 | 25 | 9 | 69 |
| HSK32E-SFASA4-50-M22 | 4 | 7 | 50 | 22 | 8 | 9.3 | 20 | 12 | 35 |
| HSK32E-SFA4-70-M42 | 4 | 7 | 70 | 42 | 8 | 11.4 | 20 | 12 | 54 |
| HSK32E-SFA4-85-M42 | 4 | 7 | 85 | 42 | 23 | 11.4 | 25 | 12 | 69 |
| HSK32E-SFA6-70-M42 | 6 | 9 | 70 | 42 | 8 | 13.4 | 20 | 18 | 54 |
| HSK40E-SFA3-50-M22 | 3 | 6 | 50 | 22 | 8 | 8.3 | 20 | 9 | 42 |
| HSK40E-SFA3-70-M42 | 3 | 6 | 70 | 42 | 8 | 10.4 | 20 | 9 | 62 |
| HSK40E-SFA3-85-M42 | 3 | 6 | 85 | 42 | 23 | 10.4 | 25 | 9 | 69 |
| HSK40E-SFA3-110-M67 | 3 | 6 | 110 | 67 | 23 | 13 | 25 | 9 | 94 |
| HSK40E-SFA4-50-M22 | 4 | 7 | 50 | 22 | 8 | 9.3 | 20 | 12 | 42 |
| HSK40E-SFA4-70-M42 | 4 | 7 | 70 | 42 | 8 | 11.4 | 20 | 12 | 62 |
| HSK40E-SFA4-85-M42 | 4 | 7 | 85 | 42 | 23 | 11.4 | 25 | 12 | 74 |
| HSK40E-SFA4-110-M67 | 4 | 7 | 110 | 67 | 23 | 14 | 25 | 12 | 88 |
| HSK40E-SFA6-50-M22 | 6 | 9 | 50 | 22 | 8 | 11.3 | 20 | 18 | 36 |
| HSK40E-SFA6-70-M42 | 6 | 9 | 70 | 42 | 8 | 13.4 | 20 | 18 | 36 |
| HSK40E-SFA6-85-M42 | 6 | 9 | 85 | 42 | 23 | 13.4 | 25 | 18 | 36 |
| HSK40E-SFA6-110-M67 | 6 | 9 | 110 | 67 | 23 | 16 | 25 | 18 | 36 |
| HSK40E-SFA8-60-M22 | 8 | 11 | 60 | 22 | 18 | 13.3 | 26 | 24 | 48 |
| HSK40E-SFA8-80-M42 | 8 | 11 | 80 | 42 | 18 | 15.4 | 26 | 24 | 48 |
| HSK40E-SFA8-100-M42 | 8 | 11 | 100 | 42 | 38 | 15.4 | 25 | 24 | 48 |
| HSK40E-SFA10-60-M22 | 10 | 13 | 60 | 22 | 18 | 15.3 | 26 | 30 | 49 |
| HSK40E-SFA10-80-M42 | 10 | 13 | 80 | 42 | 18 | 17.4 | 26 | 30 | 60 |
| HSK40E-SFA10-100-M42 | 10 | 13 | 100 | 42 | 38 | 17.4 | 25 | 30 | 60 |
| HSK40E-SFA3-50-M22 | 3 | 7.5 | 50 | 22 | 8 | 9.8 | 20 | 9 | 42 |
| HSK40E-SFA3-70-M42 | 3 | 7.5 | 70 | 42 | 8 | 11.9 | 20 | 9 | 62 |
| HSK40E-SFA3-85-M42 | 3 | 7.5 | 85 | 42 | 23 | 11.9 | 25 | 9 | 69 |
| HSK40E-SFA3-110-M67 | 3 | 7.5 | 110 | 67 | 23 | 14.5 | 25 | 9 | 94 |
| HSK40E-SFA4-50-M22 | 4 | 10 | 50 | 22 | 8 | 12.3 | 20 | 12 | 42 |
| HSK40E-SFA4-70-M42 | 4 | 10 | 70 | 42 | 8 | 14.4 | 20 | 12 | 62 |
| HSK40E-SFA4-85-M42 | 4 | 10 | 85 | 42 | 23 | 14.4 | 25 | 12 | 69 |
| HSK40E-SFA4-110-M67 | 4 | 10 | 110 | 67 | 23 | 17 | 25 | 12 | 94 |
| HSK40E-SFA6-50-M22 | 6 | 12 | 50 | 22 | 8 | 14.3 | 26 | 18 | 36 |
| HSK40E-SFA6-70-M42 | 6 | 12 | 70 | 42 | 8 | 16.4 | 26 | 18 | 36 |
| HSK40E-SFA6-85-M42 | 6 | 12 | 85 | 42 | 23 | 16.4 | 25 | 18 | 36 |
| HSK40E-SFA6-110-M67 | 6 | 12 | 110 | 67 | 23 | 19 | 25 | 18 | 36 |
| HSK40E-SFA8-50-M22 | 8 | 14 | 50 | 22 | 8 | 16.3 | 26 | 20 | 48 |
| HSK40E-SFA8-85-M42 | 8 | 14 | 85 | 42 | 23 | 18.4 | 25 | 24 | 48 |
| HSK40E-SFA8-100-M42 | 8 | 14 | 100 | 42 | 38 | 18.4 | 25 | 24 | 48 |
| HSK40E-SFA10-55-M22 | 10 | 16 | 55 | 22 | 13 | 18.3 | 26 | 25 | 60 |
| HSK40E-SFA10-85-M42 | 10 | 16 | 85 | 42 | 23 | 20.4 | 25 | 30 | 60 |
| HSK40E-SFA10-100-M42 | 10 | 16 | 100 | 42 | 38 | 20.4 | 25 | 30 | 60 |
| HSK40E-SFA12-55-M22 | 12 | 20 | 55 | 22 | 13 | 22.3 | 30 | 25 | 44 |
| HSK40E-SFA12-85-M42 | 12 | 20 | 85 | 42 | 23 | 24.4 | 32 | 30 | 72 |
| HSK40E-SFA16-55-M22 | 16 | 26 | 55 | 22 | 13 | 28.3 | 34 | 32 | 44 |
| HSK40E-SFA20-60-M40 | 20 | 32 | 60 | 40 | - | 34 | - | 38 | 49 |
| HSK50E-SFA3-60-M22 | 3 | 6 | 60 | 22 | 12 | 8.3 | 20 | 9 | 50 |
| HSK50E-SFA3-75-M22 | 3 | 6 | 75 | 22 | 27 | 8.3 | 25 | 9 | 61 |

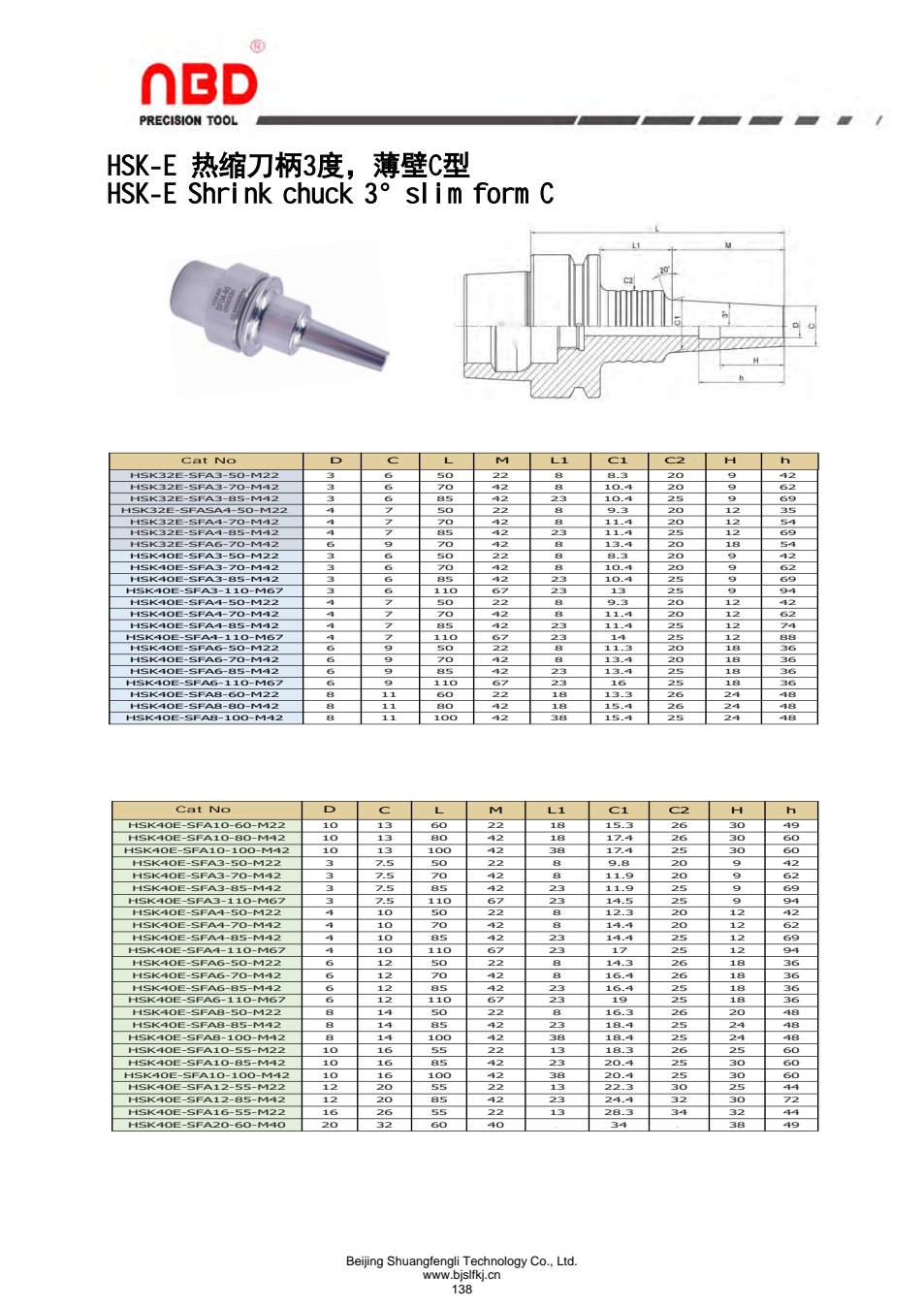

All dimensions in mm. Full specification sheets are shown in the product drawing above; custom sizes on request.
NBD (Beijing Shuangfengli Technology Co., Ltd.) — CNC tool holders, workholding, collets and lathe accessories for worldwide distributors and end users.
Additional information
| Series | HSK32E |
|---|
