HSK-T Inner Diameter Tool Holder for Drills TSD HSK63T
Mill-turn combined tool holder HSK series, fits HSK63T turrets, 17 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Inner Diameter Tool Holder for Drills TSD HSK63T is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for inner-diameter boring and drilling operations, holding tooling inserts . Available in HSK63T interfaces with 17 catalogue models covering common lengths and insert sizes.
Model Naming

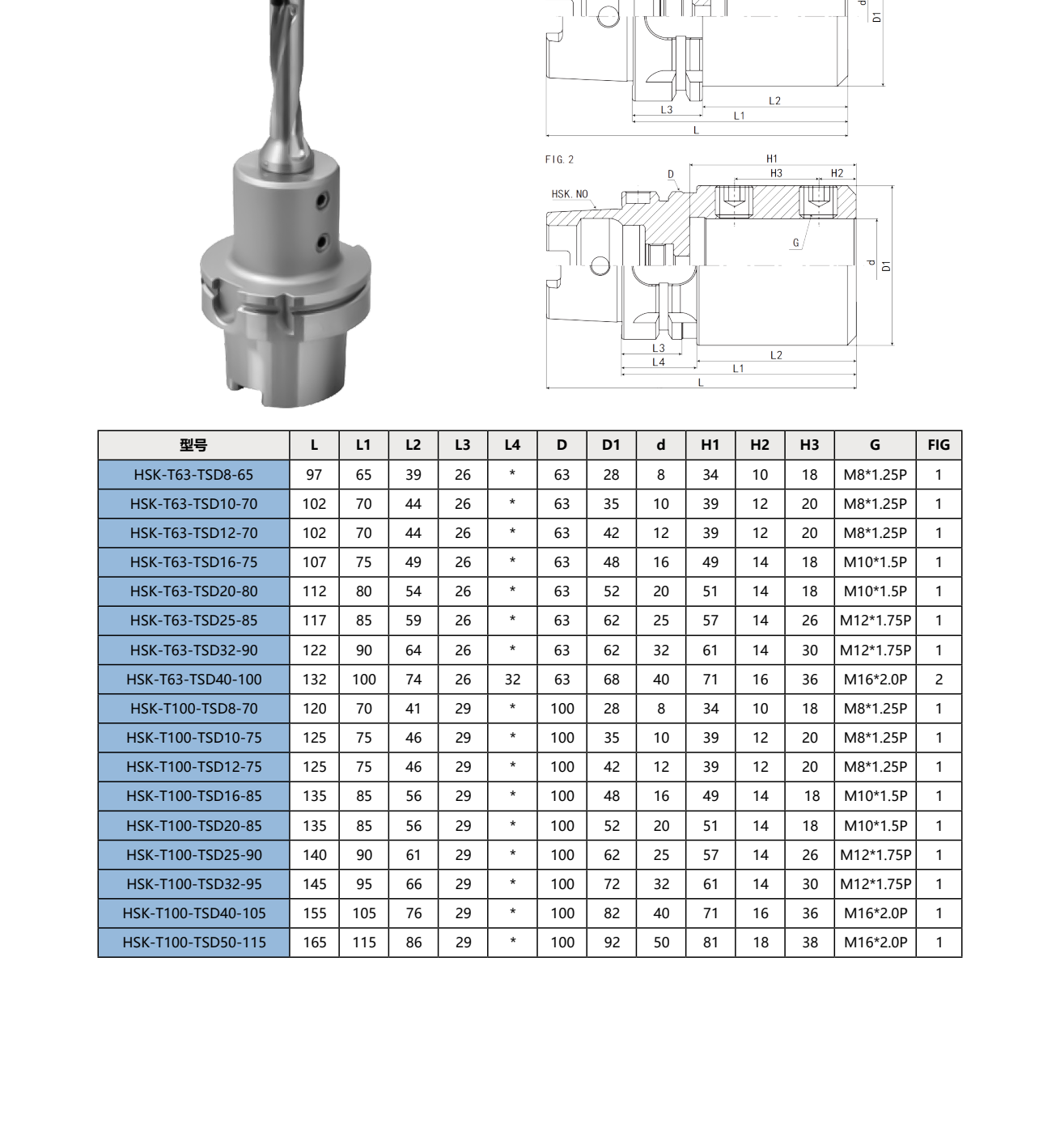

Example — HSK-T63-TSD8-65: the code encodes the turret interface (HSK63T / HSK100T), the holder series (TSD) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification
| 型号 | L | L1 | L2 | L3 | L4 | D | D1 | d | H1 | H2 | H3 | G | FIG |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK-T63-TSD8-65 | 97 | 65 | 39 | 26 | * | 63 | 28 | 8 | 34 | 10 | 18 | M8*1.25P | 1 |
| HSK-T63-TSD10-70 | 102 | 70 | 44 | 26 | * | 63 | 35 | 10 | 39 | 12 | 20 | M8*1.25P | 1 |
| HSK-T63-TSD12-70 | 102 | 70 | 44 | 26 | * | 63 | 42 | 12 | 39 | 12 | 20 | M8*1.25P | 1 |
| HSK-T63-TSD16-75 | 107 | 75 | 49 | 26 | * | 63 | 48 | 16 | 49 | 14 | 18 | M10*1.5P | 1 |
| HSK-T63-TSD20-80 | 112 | 80 | 54 | 26 | * | 63 | 52 | 20 | 51 | 14 | 18 | M10*1.5P | 1 |
| HSK-T63-TSD25-85 | 117 | 85 | 59 | 26 | * | 63 | 62 | 25 | 57 | 14 | 26 | M12*1.75P | 1 |
| HSK-T63-TSD32-90 | 122 | 90 | 64 | 26 | * | 63 | 62 | 32 | 61 | 14 | 30 | M12*1.75P | 1 |
| HSK-T63-TSD40-100 | 132 | 100 | 74 | 26 | 32 | 63 | 68 | 40 | 71 | 16 | 36 | M16*2.0P | 2 |
| HSK-T100-TSD8-70 | 120 | 70 | 41 | 29 | * | 100 | 28 | 8 | 34 | 10 | 18 | M8*1.25P | 1 |
| HSK-T100-TSD10-75 | 125 | 75 | 46 | 29 | * | 100 | 35 | 10 | 39 | 12 | 20 | M8*1.25P | 1 |
| HSK-T100-TSD12-75 | 125 | 75 | 46 | 29 | * | 100 | 42 | 12 | 39 | 12 | 20 | M8*1.25P | 1 |
| HSK-T100-TSD16-85 | 135 | 85 | 56 | 29 | * | 100 | 48 | 16 | 49 | 14 | 18 | M10*1.5P | 1 |
| HSK-T100-TSD20-85 | 135 | 85 | 56 | 29 | * | 100 | 52 | 20 | 51 | 14 | 18 | M10*1.5P | 1 |
| HSK-T100-TSD25-90 | 140 | 90 | 61 | 29 | * | 100 | 62 | 25 | 57 | 14 | 26 | M12*1.75P | 1 |
| HSK-T100-TSD32-95 | 145 | 95 | 66 | 29 | * | 100 | 72 | 32 | 61 | 14 | 30 | M12*1.75P | 1 |
| HSK-T100-TSD40-105 | 155 | 105 | 76 | 29 | * | 100 | 82 | 40 | 71 | 16 | 36 | M16*2.0P | 1 |
| HSK-T100-TSD50-115 | 165 | 115 | 86 | 29 | * | 100 | 92 | 50 | 81 | 18 | 38 | M16*2.0P | 1 |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 17 |
