HSK-T Turning Tool for Facing SBV HSK63T/HSK100T/20×20/25×25

Mill-turn combined tool holder HSK63T series, fits HSK63T / HSK100T / 20×20 / 25×25 turrets, 8 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK63T-SBV2020R-105 Category: Tag:

Description

The HSK-T Turning Tool for Facing SBV HSK63T/HSK100T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for end-face turning on mill-turn centers, holding tooling inserts . Available in HSK63T and HSK100T and 20×20 and 25×25 interfaces with 8 catalogue models covering common lengths and insert sizes.

Model Naming

Example — HSK63T-SBV2020R-105: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBV) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.

Specification

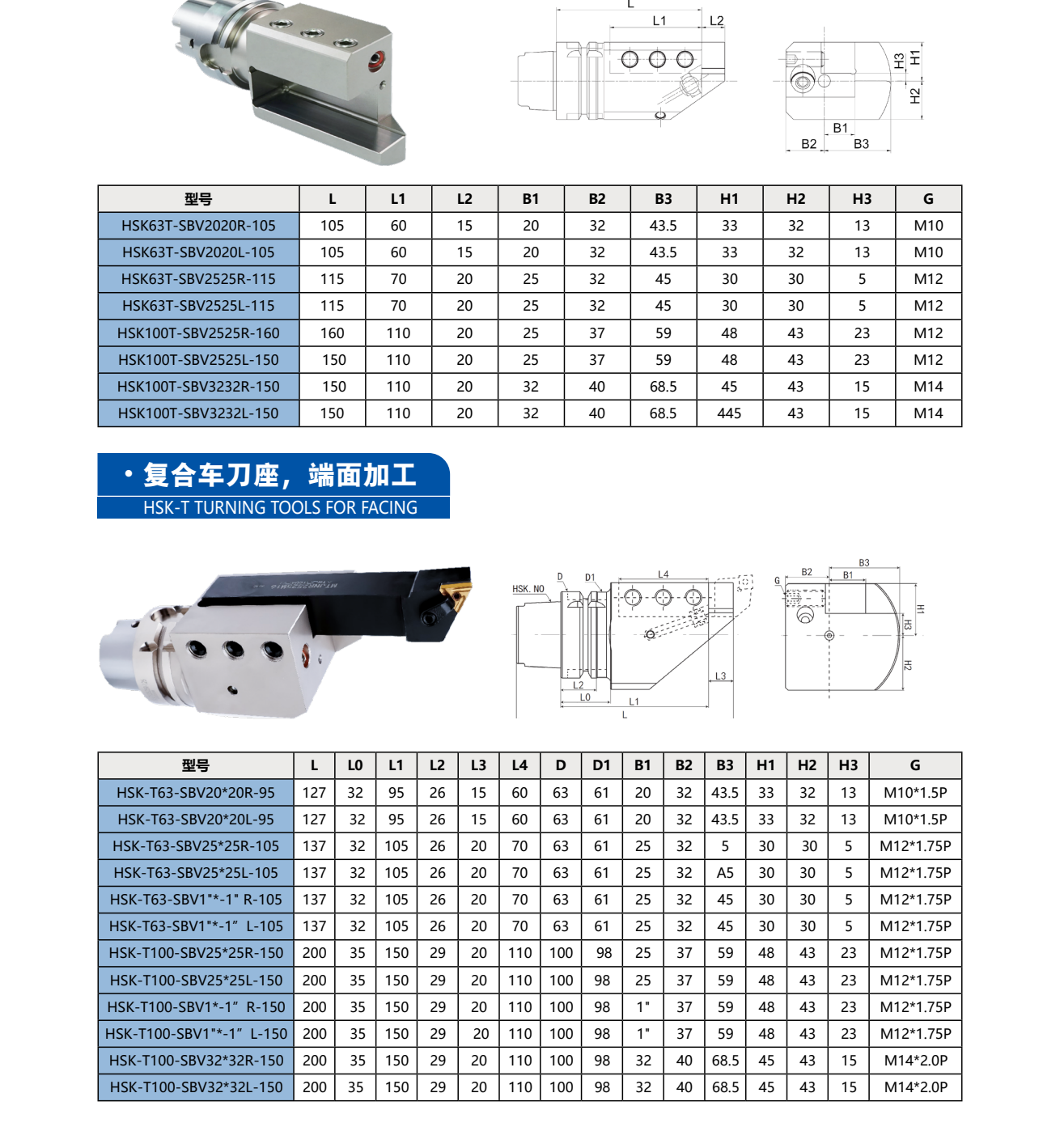

型号 L L1 L2 B1 B2 B3 H1 H2 H3 G
HSK63T-SBV2020R-105 105 60 15 20 32 43.5 33 32 13 M10
HSK63T-SBV2020L-105 105 60 15 20 32 43.5 33 32 13 M10
HSK63T-SBV2525R-115 115 70 20 25 32 45 30 30 5 M12
HSK63T-SBV2525L-115 115 70 20 25 32 45 30 30 5 M12
HSK100T-SBV2525R-160 160 110 20 25 37 59 48 43 23 M12
HSK100T-SBV2525L-150 150 110 20 25 37 59 48 43 23 M12
HSK100T-SBV3232R-150 150 110 20 32 40 68.5 45 43 15 M14
HSK100T-SBV3232L-150 150 110 20 32 40 68.5 445 43 15 M14

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.

Additional information

Taper

HSK63T, HSK100T, 20×20, 25×25
Insert Shape

—
Hand

N
Models

8
