HSK-T Turning Tool for External & Cut-off SBN HSK63T/20×20/25×25

Mill-turn combined tool holder HSK series, fits HSK63T / 20×20 / 25×25 turrets, 12 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK-T63-SBN20*20R-110 Category: Tag:

Description

The HSK-T Turning Tool for External & Cut-off SBN HSK63T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for outer-diameter grooving and cut-off operations, holding tooling inserts . Available in HSK63T and 20×20 and 25×25 interfaces with 12 catalogue models covering common lengths and insert sizes.

Model Naming

Example — HSK-T63-SBN20*20R-110: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBN) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.

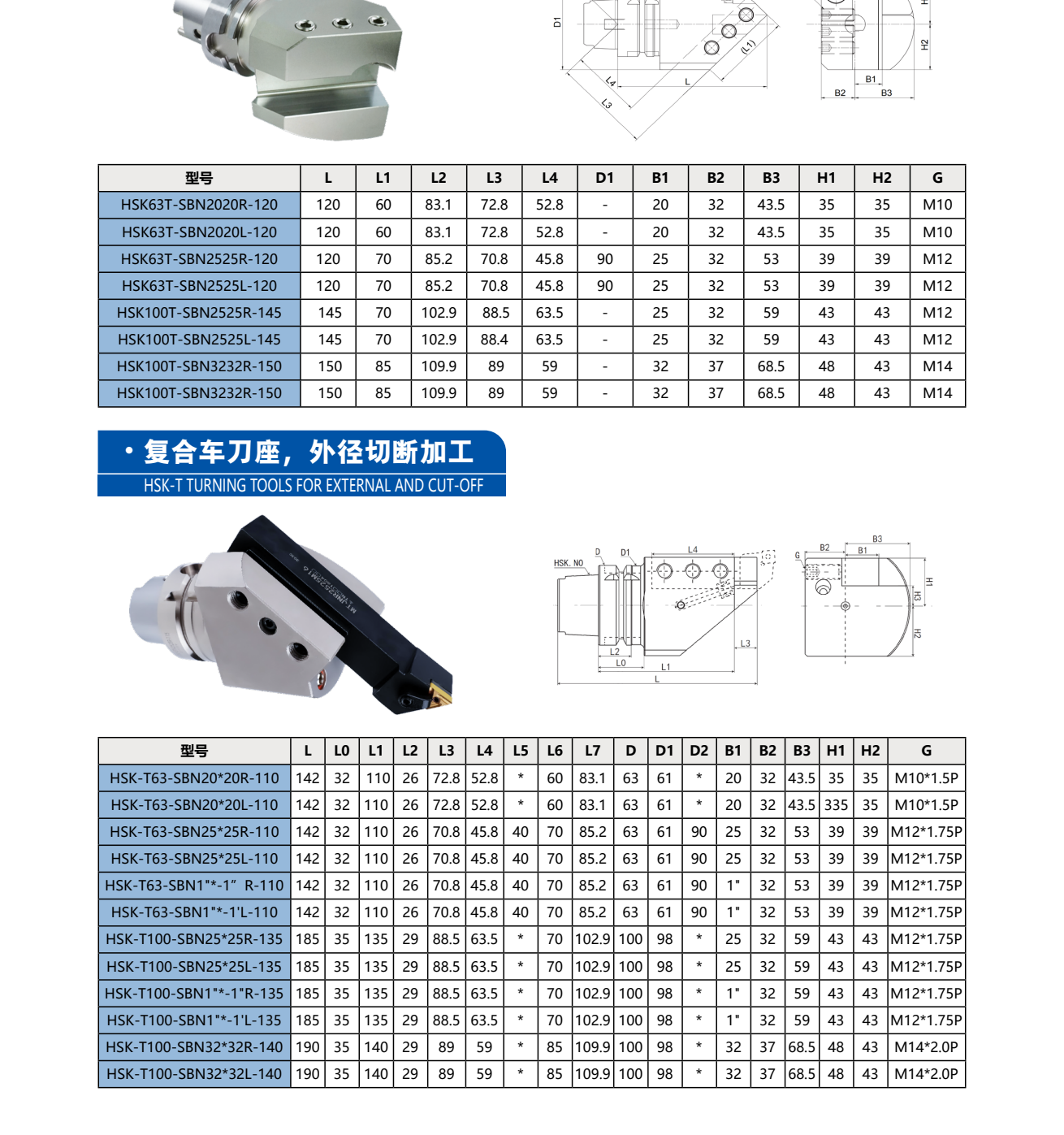

Specification

型号 L L0 L1 L2 L3 L4 L5 L6 L7 D D1 D2 B1 B2 B3 H1 H2 G
HSK-T63-SBN20*20R-110 142 32 110 26 72.8 52.8 * 60 83.1 63 61 * 20 32 43.5 35 35 M10*1.5P
HSK-T63-SBN20*20L-110 142 32 110 26 72.8 52.8 * 60 83.1 63 61 * 20 32 43.5 335 35 M10*1.5P
HSK-T63-SBN25*25R-110 142 32 110 26 70.8 45.8 40 70 85.2 63 61 90 25 32 53 39 39 M12*1.75P
HSK-T63-SBN25*25L-110 142 32 110 26 70.8 45.8 40 70 85.2 63 61 90 25 32 53 39 39 M12*1.75P
HSK-T63-SBN1"*-1”R-110 142 32 110 26 70.8 45.8 40 70 85.2 63 61 90 1" 32 53 39 39 M12*1.75P
HSK-T63-SBN1"*-1'L-110 142 32 110 26 70.8 45.8 40 70 85.2 63 61 90 1" 32 53 39 39 M12*1.75P
HSK-T100-SBN25*25R-135 185 35 135 29 88.5 63.5 * 70 102.9 100 98 * 25 32 59 43 43 M12*1.75P
HSK-T100-SBN25*25L-135 185 35 135 29 88.5 63.5 * 70 102.9 100 98 * 25 32 59 43 43 M12*1.75P
HSK-T100-SBN1"*-1"R-135 185 35 135 29 88.5 63.5 * 70 102.9 100 98 * 1" 32 59 43 43 M12*1.75P
HSK-T100-SBN1"*-1'L-135 185 35 135 29 88.5 63.5 * 70 102.9 100 98 * 1" 32 59 43 43 M12*1.75P
HSK-T100-SBN32*32R-140 190 35 140 29 89 59 * 85 109.9 100 98 * 32 37 68.5 48 43 M14*2.0P
HSK-T100-SBN32*32L-140 190 35 140 29 89 59 * 85 109.9 100 98 * 32 37 68.5 48 43 M14*2.0P

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Taper

HSK63T, 20×20, 25×25
Insert Shape

—
Hand

N
Models

12
