HSK-T Turning Tool for External & Cut-off SBN HSK63T/HSK100T/20×20/25×25

Mill-turn combined tool holder HSK63T series, fits HSK63T / HSK100T / 20×20 / 25×25 turrets, 8 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK63T-SBN2020R-120 Category: Tag:

Description

The HSK-T Turning Tool for External & Cut-off SBN HSK63T/HSK100T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for outer-diameter grooving and cut-off operations, holding tooling inserts . Available in HSK63T and HSK100T and 20×20 and 25×25 interfaces with 8 catalogue models covering common lengths and insert sizes.

Model Naming

Example — HSK63T-SBN2020R-120: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBN) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.

Specification

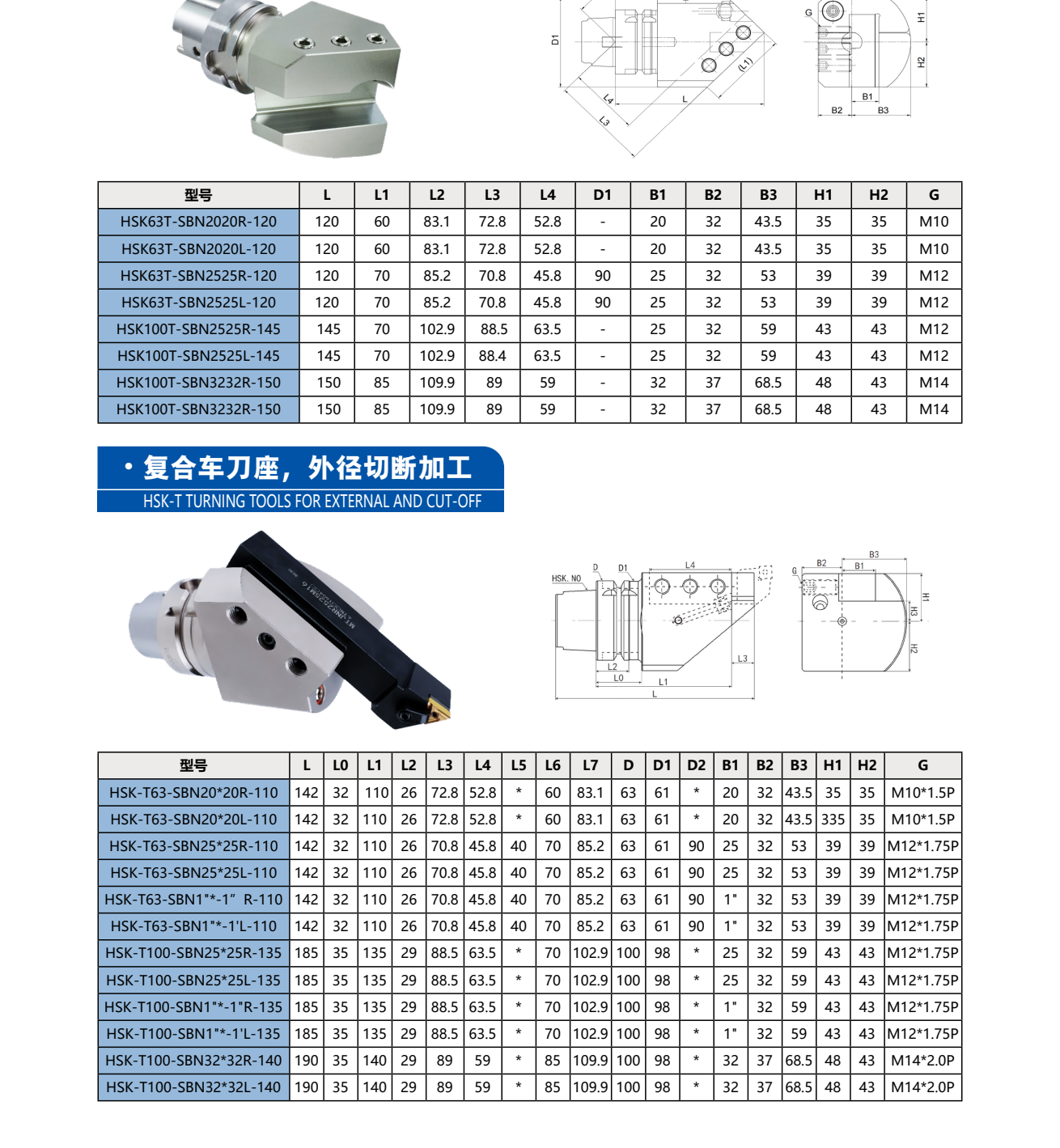

型号 L L1 L2 L3 L4 D1 B1 B2 B3 H1 H2 G
HSK63T-SBN2020R-120 120 60 83.1 72.8 52.8 - 20 32 43.5 35 35 M10
HSK63T-SBN2020L-120 120 60 83.1 72.8 52.8 - 20 32 43.5 35 35 M10
HSK63T-SBN2525R-120 120 70 85.2 70.8 45.8 90 25 32 53 39 39 M12
HSK63T-SBN2525L-120 120 70 85.2 70.8 45.8 90 25 32 53 39 39 M12
HSK100T-SBN2525R-145 145 70 102.9 88.5 63.5 - 25 32 59 43 43 M12
HSK100T-SBN2525L-145 145 70 102.9 88.4 63.5 - 25 32 59 43 43 M12
HSK100T-SBN3232R-150 150 85 109.9 89 59 - 32 37 68.5 48 43 M14
HSK100T-SBN3232R-150 150 85 109.9 89 59 - 32 37 68.5 48 43 M14

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.

Additional information

Taper

HSK63T, HSK100T, 20×20, 25×25
Insert Shape

—
Hand

N
Models

8
