HSK-T Turning Tool Holder PDJNR | PDJNL 55°/93° (Negative, DNMG)
Mill-turn combined tool holder HSK63T series for DNMG inserts with 55°/93° cutting geometry, fits HSK63T / HSK100T turrets, 4 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder PDJNR | PDJNL 55°/93° (Negative, DNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO DNMG inserts with 55°/93° geometry. Available in HSK63T and HSK100T interfaces with 4 catalogue models covering common lengths and insert sizes.
Insert: DNMG (55° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-PDJNR-45070-15: HSK63T = taper size; P = insert clamping way; D = insert shape (DNMG); J = holder lead angle; N = insert clearance angle; R = cutting direction (R/L/N); 45070 = f (mm); 15 = insert size.
Specification

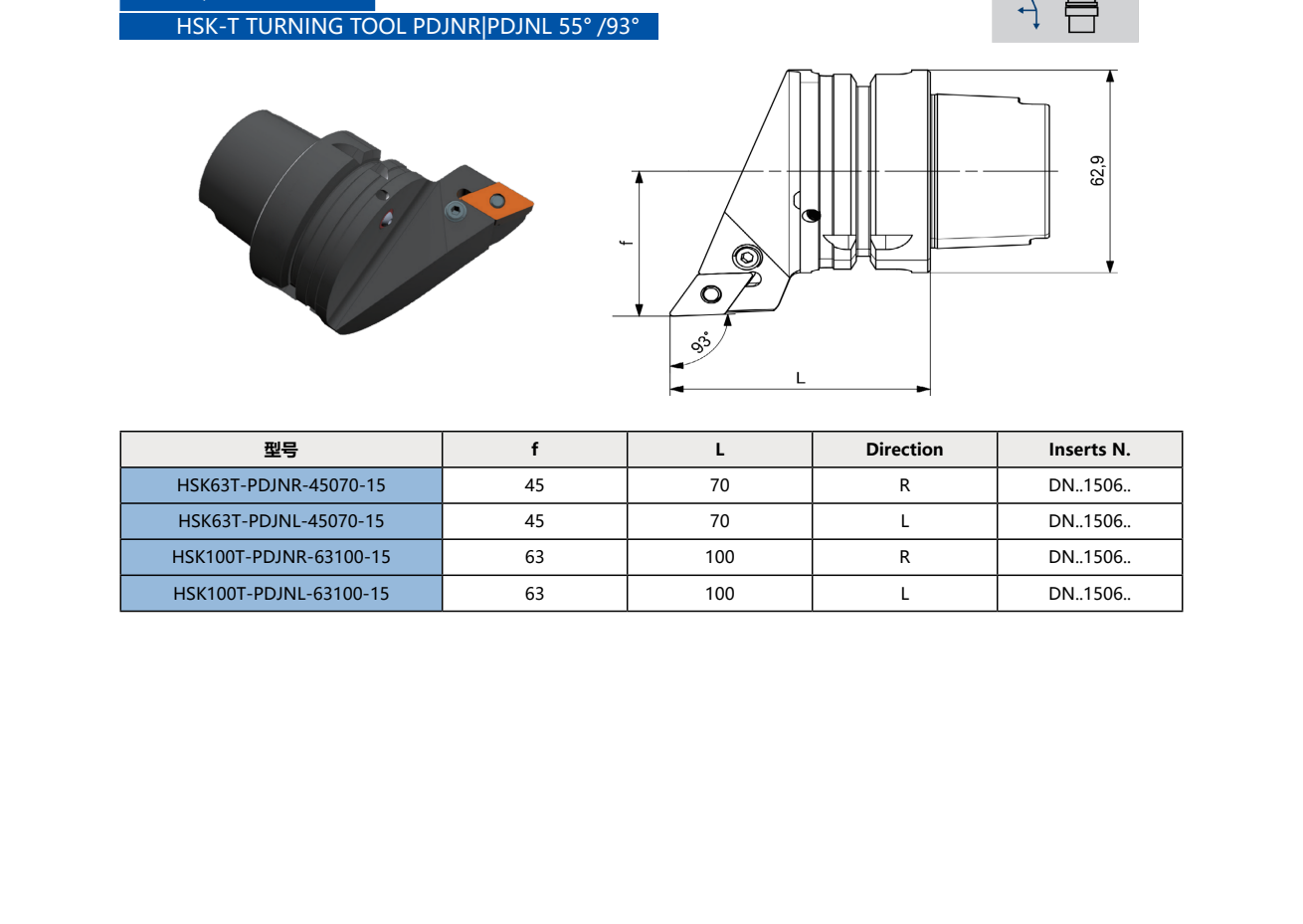

| 型号 | f | L | Direction | Inserts N. |
|---|---|---|---|---|
| HSK63T-PDJNR-45070-15 | 45 | 70 | R | DN..1506.. |
| HSK63T-PDJNL-45070-15 | 45 | 70 | L | DN..1506.. |
| HSK100T-PDJNR-63100-15 | 63 | 100 | R | DN..1506.. |
| HSK100T-PDJNL-63100-15 | 63 | 100 | L | DN..1506.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | DNMG |
| Hand | N |
| Models | 4 |
