HSK-T Turning Tool for External & Facing SBH HSK63T/20×20/25×25
Mill-turn combined tool holder HSK series, fits HSK63T / 20×20 / 25×25 turrets, 9 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool for External & Facing SBH HSK63T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding tooling inserts . Available in HSK63T and 20×20 and 25×25 interfaces with 9 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK-T63-SBH20*20R-90: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBH) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification

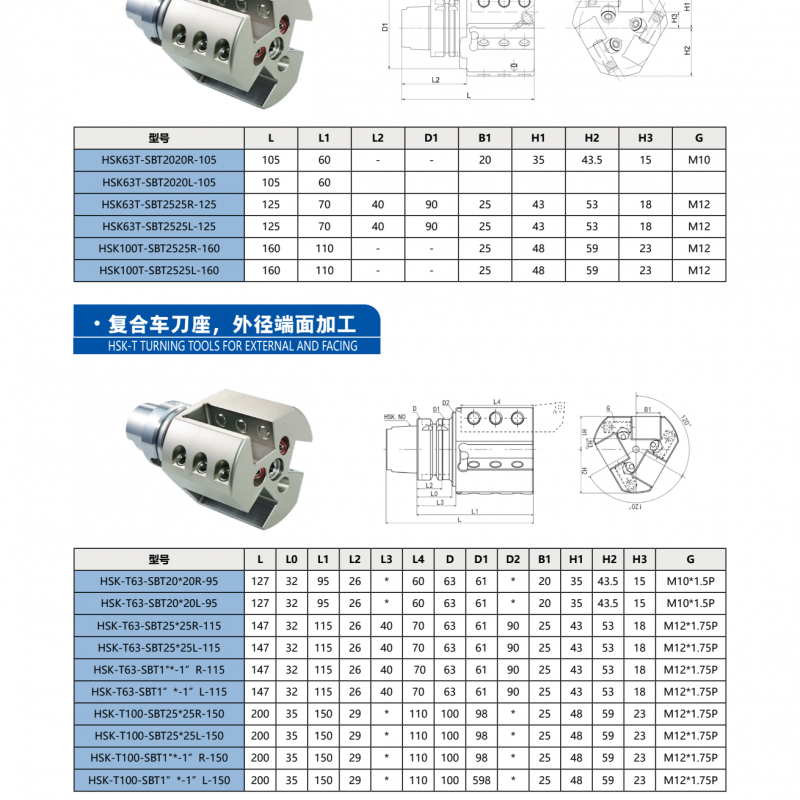

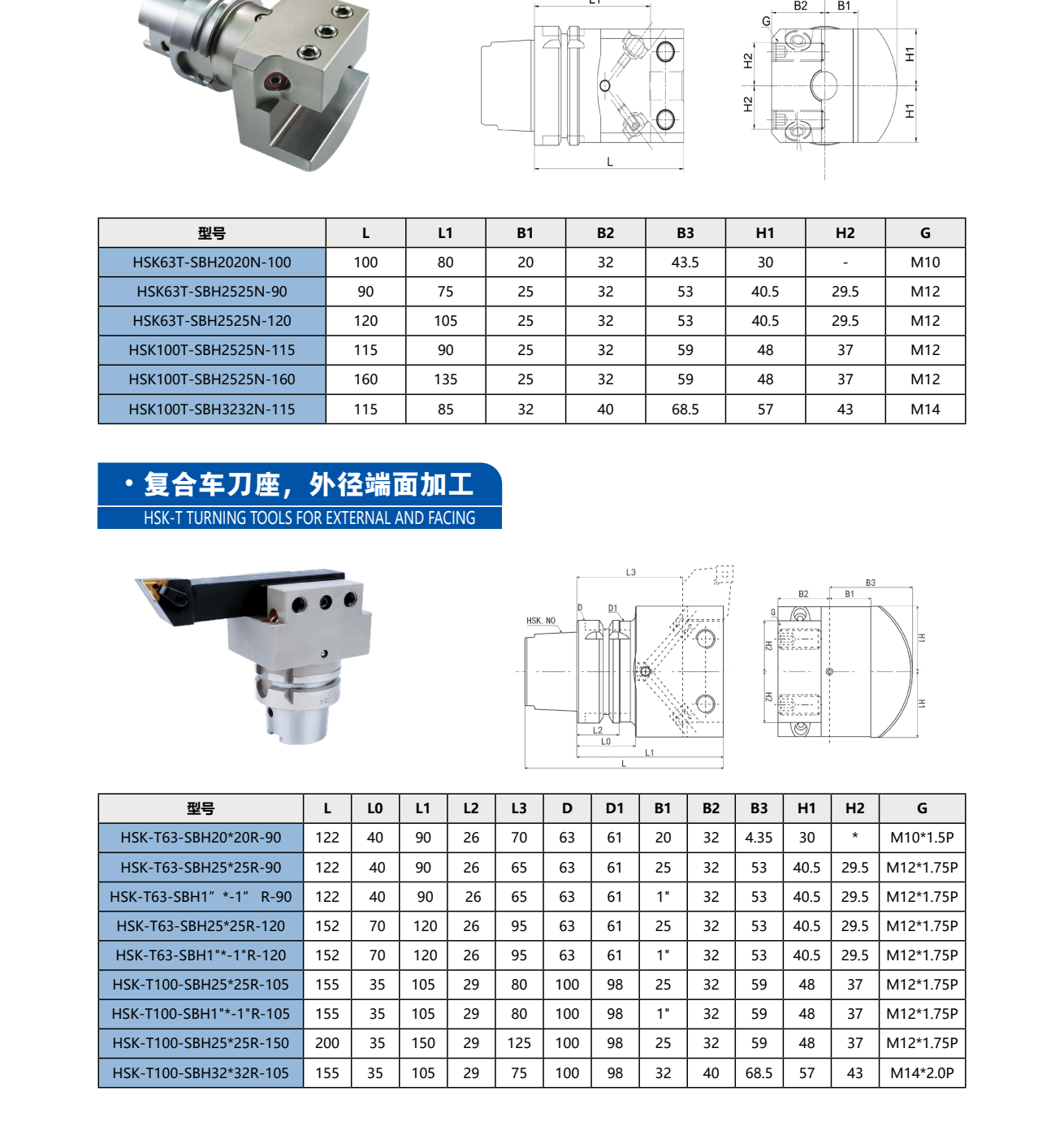

| 型号 | L | L0 | L1 | L2 | L3 | D | D1 | B1 | B2 | B3 | H1 | H2 | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK-T63-SBH20*20R-90 | 122 | 40 | 90 | 26 | 70 | 63 | 61 | 20 | 32 | 4.35 | 30 | * | M10*1.5P |
| HSK-T63-SBH25*25R-90 | 122 | 40 | 90 | 26 | 65 | 63 | 61 | 25 | 32 | 53 | 40.5 | 29.5 | M12*1.75P |
| HSK-T63-SBH1”*-1” R-90 | 122 | 40 | 90 | 26 | 65 | 63 | 61 | 1" | 32 | 53 | 40.5 | 29.5 | M12*1.75P |
| HSK-T63-SBH25*25R-120 | 152 | 70 | 120 | 26 | 95 | 63 | 61 | 25 | 32 | 53 | 40.5 | 29.5 | M12*1.75P |
| HSK-T63-SBH1"*-1"R-120 | 152 | 70 | 120 | 26 | 95 | 63 | 61 | 1" | 32 | 53 | 40.5 | 29.5 | M12*1.75P |
| HSK-T100-SBH25*25R-105 | 155 | 35 | 105 | 29 | 80 | 100 | 98 | 25 | 32 | 59 | 48 | 37 | M12*1.75P |
| HSK-T100-SBH1"*-1"R-105 | 155 | 35 | 105 | 29 | 80 | 100 | 98 | 1" | 32 | 59 | 48 | 37 | M12*1.75P |
| HSK-T100-SBH25*25R-150 | 200 | 35 | 150 | 29 | 125 | 100 | 98 | 25 | 32 | 59 | 48 | 37 | M12*1.75P |
| HSK-T100-SBH32*32R-105 | 155 | 35 | 105 | 29 | 75 | 100 | 98 | 32 | 40 | 68.5 | 57 | 43 | M14*2.0P |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, 20×20, 25×25 |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 9 |
