HSK-T Turning Tool Holder DCMNN 50°/80°/50° (Negative, CNMG)
Mill-turn combined tool holder HSK63T series for CNMG inserts with 50°/80°/50° cutting geometry, fits HSK63T / HSK100T turrets, 7 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder DCMNN 50°/80°/50° (Negative, CNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO CNMG inserts with 50°/80°/50° geometry. Available in HSK63T and HSK100T interfaces with 7 catalogue models covering common lengths and insert sizes.
Insert: CNMG (80° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming

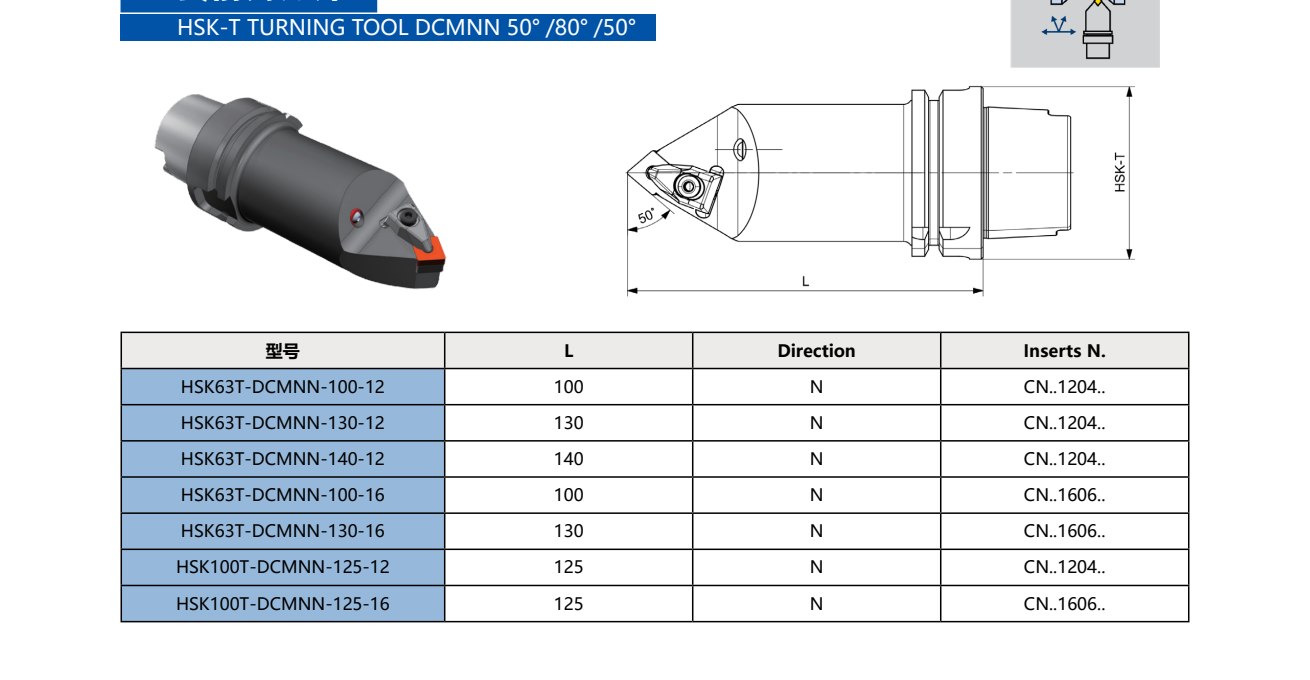

Example — HSK63T-DCMNN-100-12: HSK63T = taper size; D = insert clamping way; C = insert shape (CNMG); M = holder lead angle; N = insert clearance angle; N = cutting direction (R/L/N); 100 = f (mm); 12 = insert size.
Specification
| 型号 | L | Direction | Inserts N. |
|---|---|---|---|
| HSK63T-DCMNN-100-12 | 100 | N | CN..1204.. |
| HSK63T-DCMNN-130-12 | 130 | N | CN..1204.. |
| HSK63T-DCMNN-140-12 | 140 | N | CN..1204.. |
| HSK63T-DCMNN-100-16 | 100 | N | CN..1606.. |
| HSK63T-DCMNN-130-16 | 130 | N | CN..1606.. |
| HSK100T-DCMNN-125-12 | 125 | N | CN..1204.. |
| HSK100T-DCMNN-125-16 | 125 | N | CN..1606.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | CNMG |
| Hand | N |
| Models | 7 |
