HSK-T Turning Tool Holder PDNNN 62.5°/55°/62.5° (Negative, DNMG)

Description

The HSK-T Turning Tool Holder PDNNN 62.5°/55°/62.5° (Negative, DNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO DNMG inserts with 62.5°/55°/62.5° geometry. Available in HSK63T and HSK100T interfaces with 3 catalogue models covering common lengths and insert sizes.

Insert: DNMG (55° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.

Model Naming

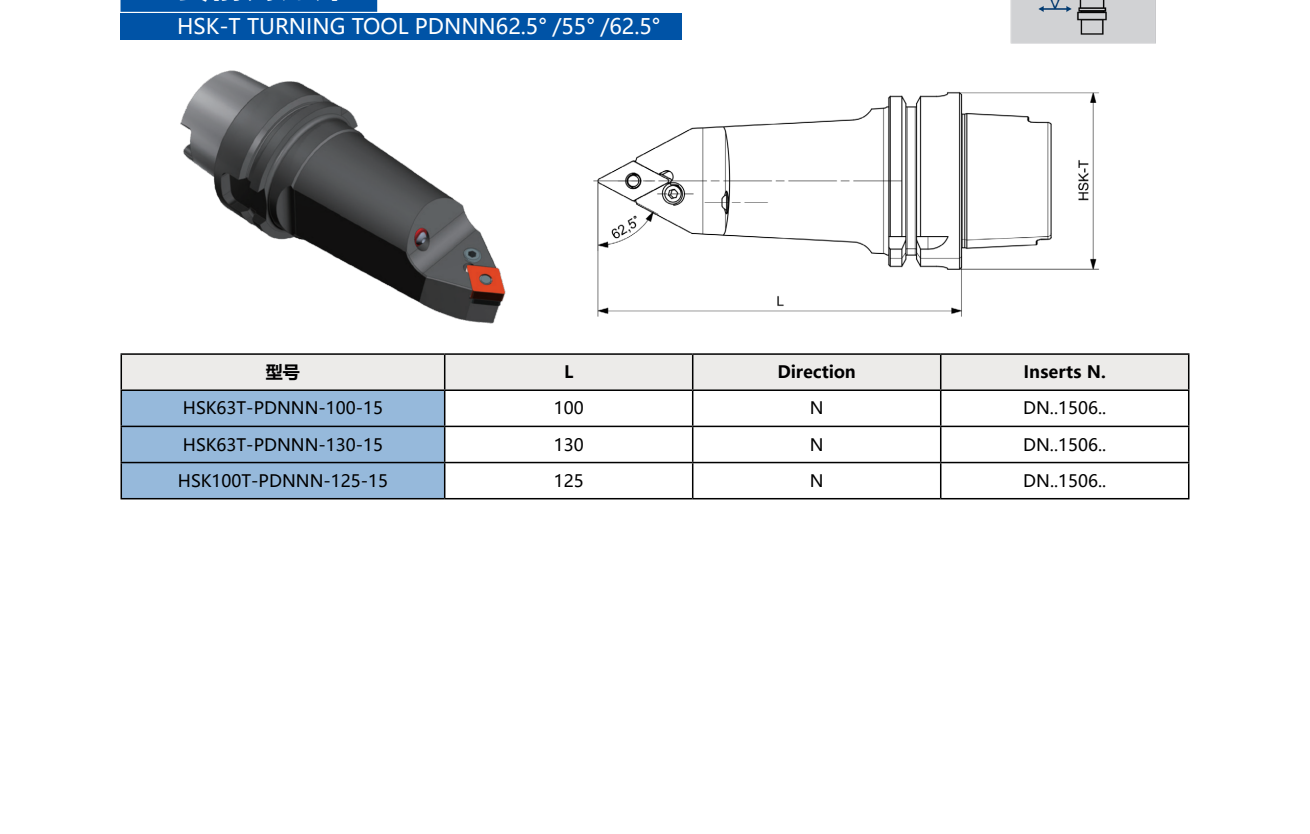

Example — HSK63T-PDNNN-100-15: HSK63T = taper size; P = insert clamping way; D = insert shape (DNMG); N = holder lead angle; N = insert clearance angle; N = cutting direction (R/L/N); 100 = f (mm); 15 = insert size.

Specification

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
