HSK-T Turning Tool Holder DSSNR 45°/90° (Negative)
Mill-turn combined tool holder HSK63T series with 45°/90° cutting geometry, fits HSK63T / HSK100T turrets, 4 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder DSSNR 45°/90° (Negative) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding tooling inserts with 45°/90° geometry. Available in HSK63T and HSK100T interfaces with 4 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK63T-DSSNR-45070-12: HSK63T = taper size; D = insert clamping way; S = insert shape (see table); S = holder lead angle; N = insert clearance angle; R = cutting direction (R/L/N); 45070 = f (mm); 12 = insert size.

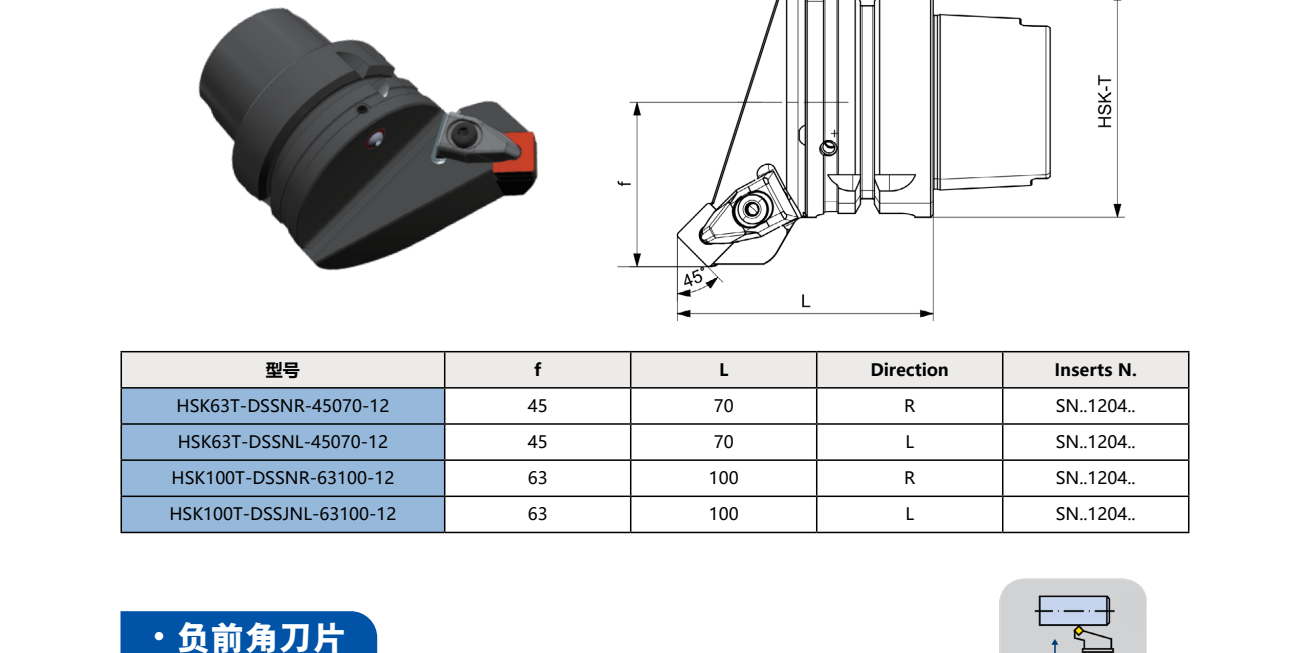

Specification
| 型号 | f | L | Direction | Inserts N. |
|---|---|---|---|---|
| HSK63T-DSSNR-45070-12 | 45 | 70 | R | SN..1204.. |
| HSK63T-DSSNL-45070-12 | 45 | 70 | L | SN..1204.. |
| HSK100T-DSSNR-63100-12 | 63 | 100 | R | SN..1204.. |
| HSK100T-DSSJNL-63100-12 | 63 | 100 | L | SN..1204.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 4 |
