HSK-T Turning Tool Holder DVJNR | DVJNL 93°/35° (Negative, VNMG)

Mill-turn combined tool holder HSK100T series for VNMG inserts with 93°/35° cutting geometry, fits HSK100T turrets, 2 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK100T-DVJNR16-100-63 Category: Tag:

Description

The HSK-T Turning Tool Holder DVJNR | DVJNL 93°/35° (Negative, VNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO VNMG inserts with 93°/35° geometry. Available in HSK100T interfaces with 2 catalogue models covering common lengths and insert sizes.

Insert: VNMG (35° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.

Model Naming

Example — HSK100T-DVJNR16-100-63: the code encodes the turret interface (HSK63T / HSK100T), the holder series (HSK100T) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.

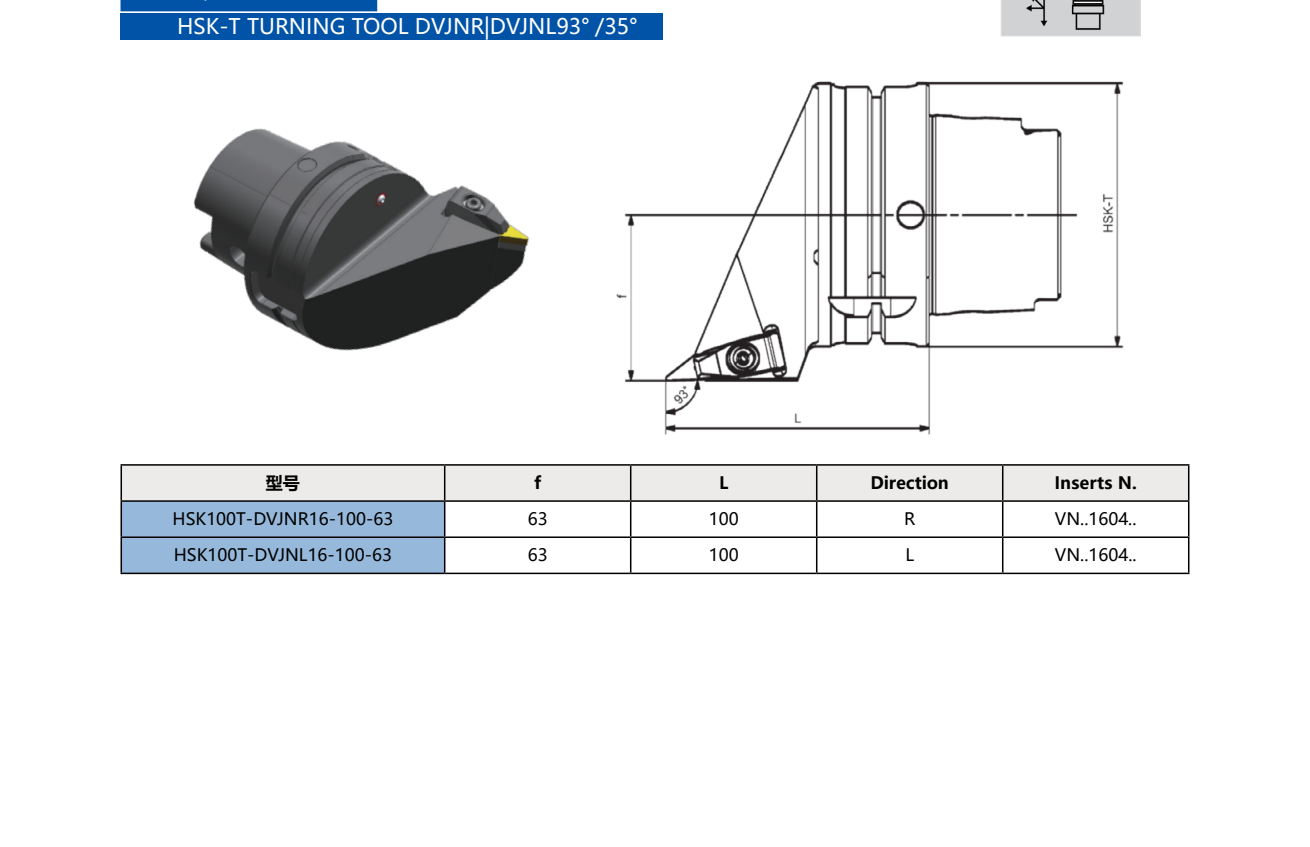

Specification

型号 f L Direction Inserts N.
HSK100T-DVJNR16-100-63 63 100 R VN..1604..
HSK100T-DVJNL16-100-63 63 100 L VN..1604..

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Taper

HSK100T
Insert Shape

VNMG
Hand

N
Models

2
