HSK-T Inner Diameter Tool Holder for Boring Bars TSB HSK63T - HSK-T63-TSB8-65 | NBD Machinery

HSK-T Inner Diameter Tool Holder for Boring Bars TSB HSK63T

Mill-turn combined tool holder HSK series, fits HSK63T turrets, 17 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: HSK-T63-TSB8-65 Category: Tags: , , , , , , , ,

Description

The HSK-T Inner Diameter Tool Holder for Boring Bars TSB HSK63T is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for inner-diameter boring and drilling operations, holding tooling inserts . Available in HSK63T interfaces with 17 catalogue models covering common lengths and insert sizes.

Model Naming

Example — HSK-T63-TSB8-65: the code encodes the turret interface (HSK63T / HSK100T), the holder series (TSB) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.

Specification

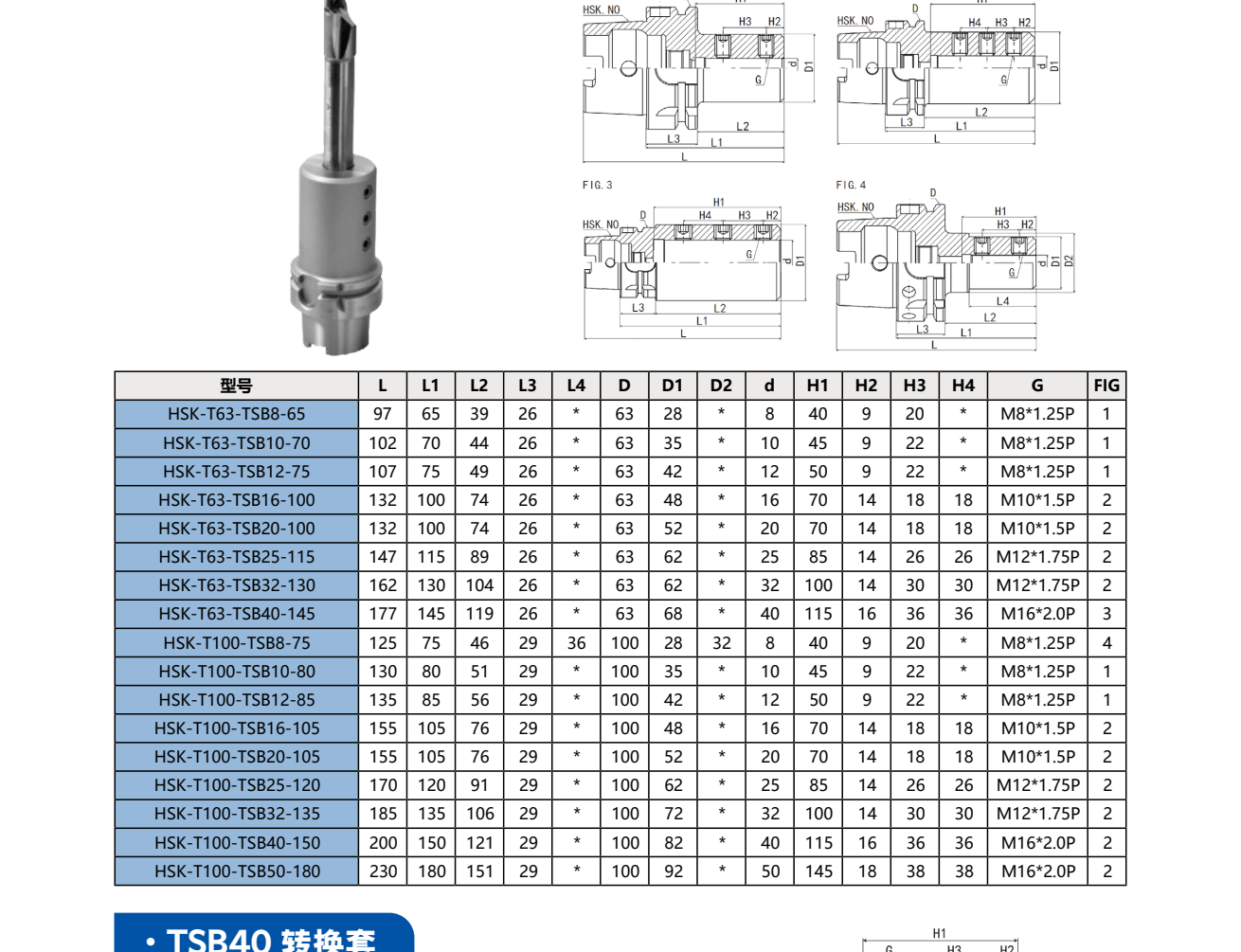

型号 L L1 L2 L3 L4 D D1 D2 d H1 H2 H3 H4 G FIG
HSK-T63-TSB8-65 97 65 39 26 * 63 28 * 8 40 9 20 * M8*1.25P 1
HSK-T63-TSB10-70 102 70 44 26 * 63 35 * 10 45 9 22 * M8*1.25P 1
HSK-T63-TSB12-75 107 75 49 26 * 63 42 * 12 50 9 22 * M8*1.25P 1
HSK-T63-TSB16-100 132 100 74 26 * 63 48 * 16 70 14 18 18 M10*1.5P 2
HSK-T63-TSB20-100 132 100 74 26 * 63 52 * 20 70 14 18 18 M10*1.5P 2
HSK-T63-TSB25-115 147 115 89 26 * 63 62 * 25 85 14 26 26 M12*1.75P 2
HSK-T63-TSB32-130 162 130 104 26 * 63 62 * 32 100 14 30 30 M12*1.75P 2
HSK-T63-TSB40-145 177 145 119 26 * 63 68 * 40 115 16 36 36 M16*2.0P 3
HSK-T100-TSB8-75 125 75 46 29 36 100 28 32 8 40 9 20 * M8*1.25P 4
HSK-T100-TSB10-80 130 80 51 29 * 100 35 * 10 45 9 22 * M8*1.25P 1
HSK-T100-TSB12-85 135 85 56 29 * 100 42 * 12 50 9 22 * M8*1.25P 1
HSK-T100-TSB16-105 155 105 76 29 * 100 48 * 16 70 14 18 18 M10*1.5P 2
HSK-T100-TSB20-105 155 105 76 29 * 100 52 * 20 70 14 18 18 M10*1.5P 2
HSK-T100-TSB25-120 170 120 91 29 * 100 62 * 25 85 14 26 26 M12*1.75P 2
HSK-T100-TSB32-135 185 135 106 29 * 100 72 * 32 100 14 30 30 M12*1.75P 2
HSK-T100-TSB40-150 200 150 121 29 * 100 82 * 40 115 16 36 36 M16*2.0P 2
HSK-T100-TSB50-180 230 180 151 29 * 100 92 * 50 145 18 38 38 M16*2.0P 2

All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.
