HSK-T Turning Tool Holder PCLNR | PCLNL 95°/80° Long Type (Negative, CNMG)
Mill-turn combined tool holder HSK63T series for CNMG inserts with 95°/80° cutting geometry, fits HSK63T / HSK100T turrets, 12 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder PCLNR | PCLNL 95°/80° Long Type (Negative, CNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO CNMG inserts with 95°/80° geometry. Available in HSK63T and HSK100T interfaces with 12 catalogue models covering common lengths and insert sizes.
Insert: CNMG (80° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-PCLNR-27140-12: HSK63T = taper size; P = insert clamping way; C = insert shape (CNMG); L = holder lead angle; N = insert clearance angle; R = cutting direction (R/L/N); 27140 = f (mm); 12 = insert size.
Specification

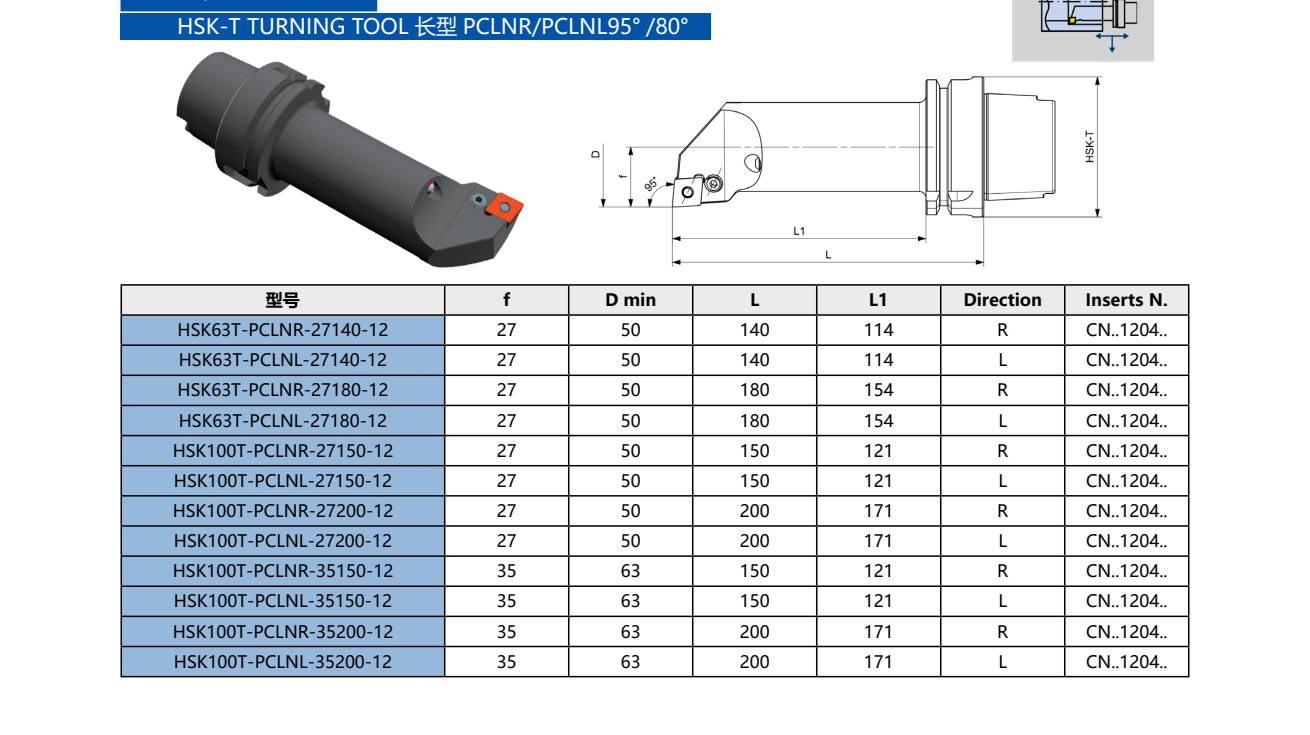

| 型号 | f | D min | L | L1 | Direction | Inserts N. |
|---|---|---|---|---|---|---|
| HSK63T-PCLNR-27140-12 | 27 | 50 | 140 | 114 | R | CN..1204.. |
| HSK63T-PCLNL-27140-12 | 27 | 50 | 140 | 114 | L | CN..1204.. |
| HSK63T-PCLNR-27180-12 | 27 | 50 | 180 | 154 | R | CN..1204.. |
| HSK63T-PCLNL-27180-12 | 27 | 50 | 180 | 154 | L | CN..1204.. |
| HSK100T-PCLNR-27150-12 | 27 | 50 | 150 | 121 | R | CN..1204.. |
| HSK100T-PCLNL-27150-12 | 27 | 50 | 150 | 121 | L | CN..1204.. |
| HSK100T-PCLNR-27200-12 | 27 | 50 | 200 | 171 | R | CN..1204.. |
| HSK100T-PCLNL-27200-12 | 27 | 50 | 200 | 171 | L | CN..1204.. |
| HSK100T-PCLNR-35150-12 | 35 | 63 | 150 | 121 | R | CN..1204.. |
| HSK100T-PCLNL-35150-12 | 35 | 63 | 150 | 121 | L | CN..1204.. |
| HSK100T-PCLNR-35200-12 | 35 | 63 | 200 | 171 | R | CN..1204.. |
| HSK100T-PCLNL-35200-12 | 35 | 63 | 200 | 171 | L | CN..1204.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | CNMG |
| Hand | N |
| Models | 12 |
