HSK-VER Micro Tension-Compression Tapping Holder M3-M20

Name: HSK-VER Micro Tension-Compression Tapping Holder M3-M20
Brand: NBD
SKU: HSK50A-VER16-125
Availability: InStock

Description

The HSK-VER Micro Tension-Compression Tapping Holder M3-M20 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for micro precision tapping in tight spaces. Tapping range M3-M10 with 12 catalogue models.

Features

本体规格：DIN 69893-1
刚性攻牙刀柄可使用 ER/ERG 筒夹代替，作为夹持钻头、铰刀和
Spindle Conicity Standard: DIN 69893-1
Rigid function ensures machining center spindle rotate in
Can be replaced by ER /ERG collet for gripping cutting
Don’t lock excessively of the clamping nut in case of damage,

Model Naming

Model = Shank size + VER (micro tension-compression code) + ER collet size (VER16…VER32) + L1 length.

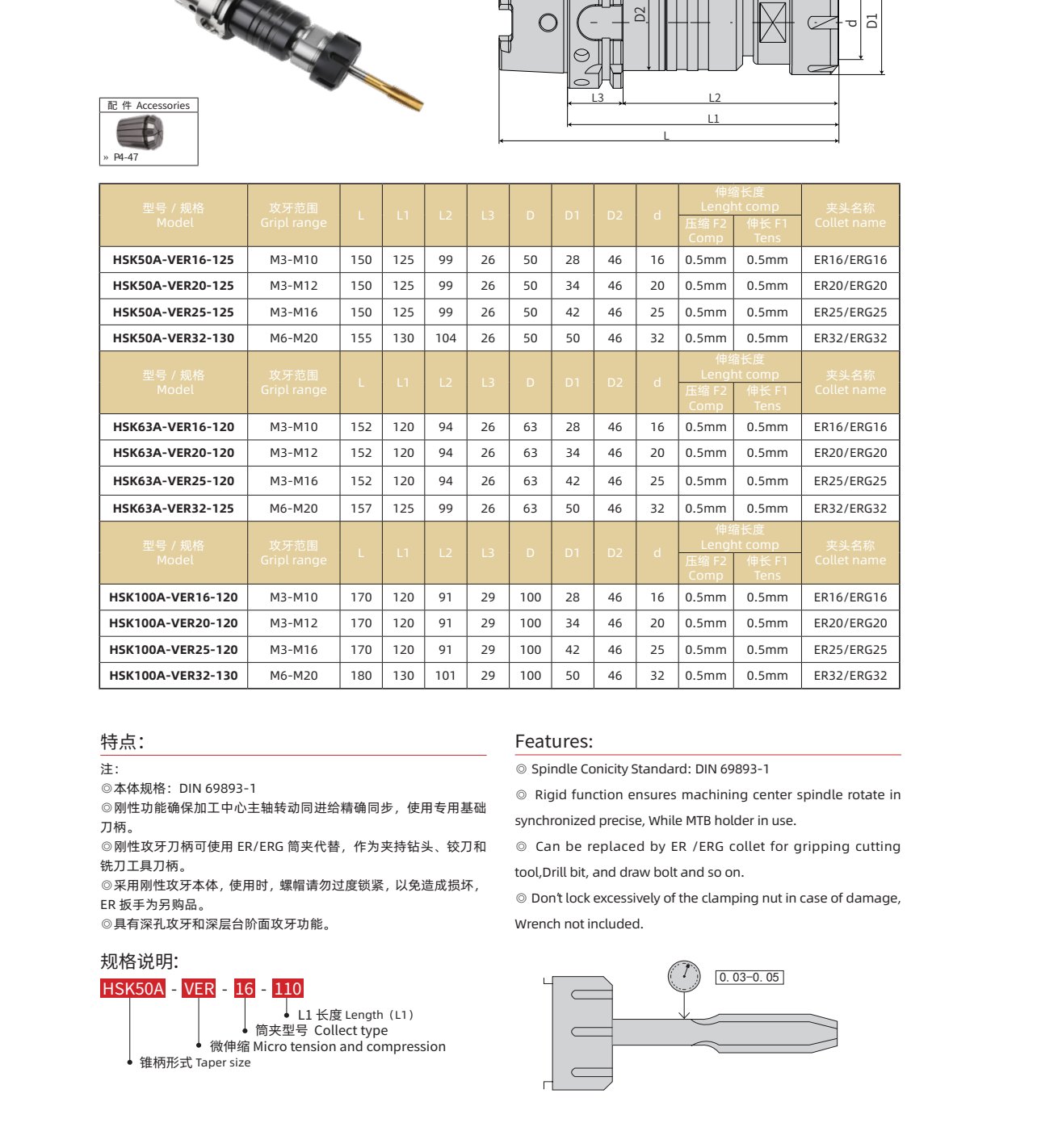

Specification

Model	Spec	Dimensions (mm)
HSK50A-VER16-125	M3-M10	150	125	99	26	50	28	46	16	0.5mm	0.5mm	ER16/ERG16
HSK50A-VER20-125	M3-M12	150	125	99	26	50	34	46	20	0.5mm	0.5mm	ER20/ERG20
HSK50A-VER25-125	M3-M16	150	125	99	26	50	42	46	25	0.5mm	0.5mm	ER25/ERG25
HSK50A-VER32-130	M6-M20	155	130	104	26	50	50	46	32	0.5mm	0.5mm	ER32/ERG32
HSK63A-VER16-120	M3-M10	152	120	94	26	63	28	46	16	0.5mm	0.5mm	ER16/ERG16
HSK63A-VER20-120	M3-M12	152	120	94	26	63	34	46	20	0.5mm	0.5mm	ER20/ERG20
HSK63A-VER25-120	M3-M16	152	120	94	26	63	42	46	25	0.5mm	0.5mm	ER25/ERG25
HSK63A-VER32-125	M6-M20	157	125	99	26	63	50	46	32	0.5mm	0.5mm	ER32/ERG32
HSK100A-VER16-120	M3-M10	170	120	91	29	100	28	46	16	0.5mm	0.5mm	ER16/ERG16
HSK100A-VER20-120	M3-M12	170	120	91	29	100	34	46	20	0.5mm	0.5mm	ER20/ERG20
HSK100A-VER25-120	M3-M16	170	120	91	29	100	42	46	25	0.5mm	0.5mm	ER25/ERG25
HSK100A-VER32-130	M6-M20	180	130	101	29	100	50	46	32	0.5mm	0.5mm	ER32/ERG32

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper	HSK100A, HSK50A, HSK63A
Tapping Range	M3-M10
