MTB-TER-B Morse Taper Rigid Tapping Holder M3-M20
Tapping chuck/holder M2-M12 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 12 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The MTB-TER-B Morse Taper Rigid Tapping Holder M3-M20 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M2-M12 with 12 catalogue models.
Features
- Rigid function ensures machining center spindle rotate in
- Can be replaced by ER collet for gripping cutting tool, Drill
- Don't lock excessively of the clamping nut in case of
Model Naming
Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

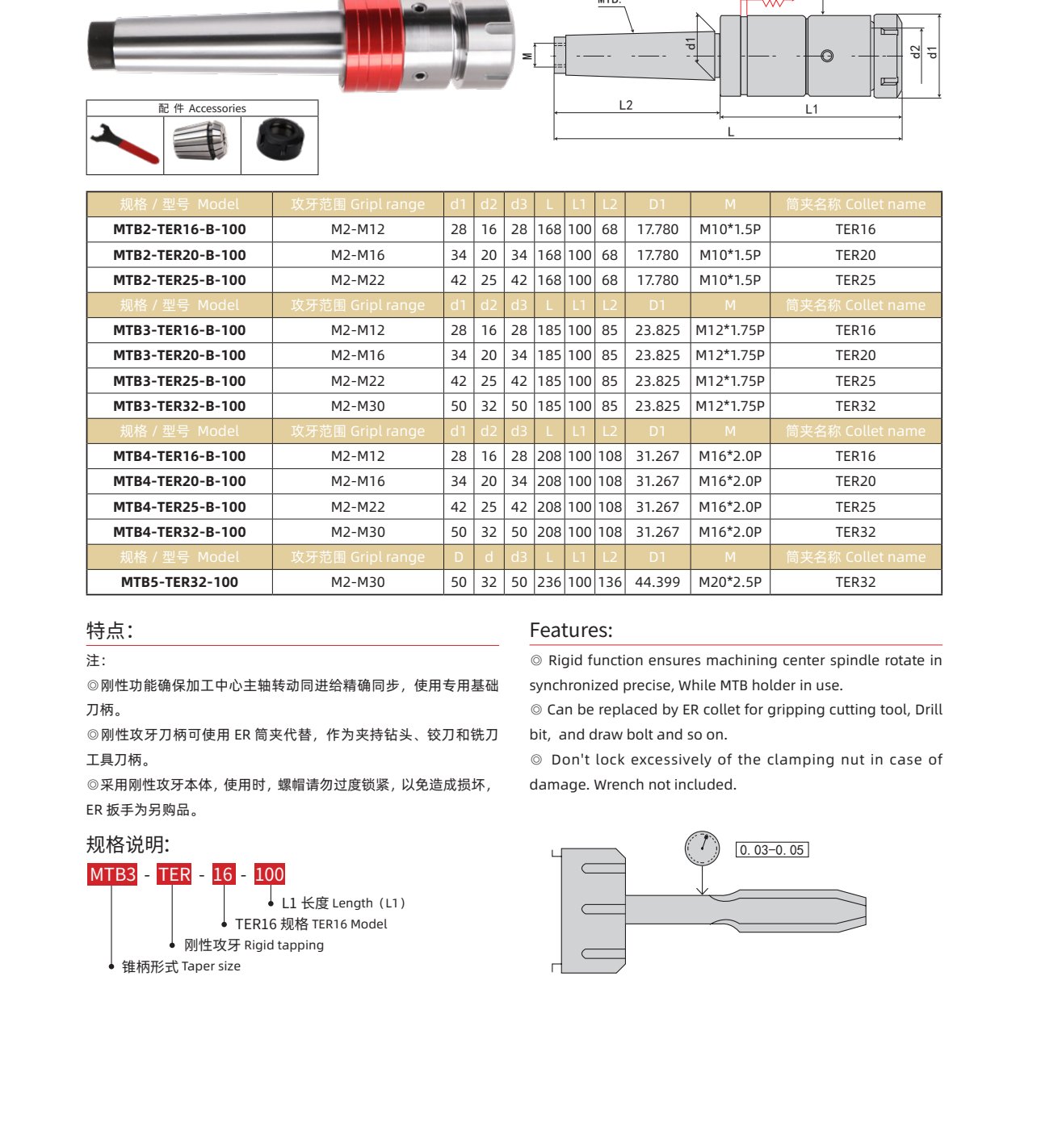

Specification
| Model | Spec | Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MTB2-TER16-B-100 | M2-M12 | 28 | 16 | 28 | 168 | 100 | 68 | 17.780 | M10*1.5P | TER16 |
| MTB2-TER20-B-100 | M2-M16 | 34 | 20 | 34 | 168 | 100 | 68 | 17.780 | M10*1.5P | TER20 |
| MTB2-TER25-B-100 | M2-M22 | 42 | 25 | 42 | 168 | 100 | 68 | 17.780 | M10*1.5P | TER25 |
| MTB3-TER16-B-100 | M2-M12 | 28 | 16 | 28 | 185 | 100 | 85 | 23.825 | M12*1.75P | TER16 |
| MTB3-TER20-B-100 | M2-M16 | 34 | 20 | 34 | 185 | 100 | 85 | 23.825 | M12*1.75P | TER20 |
| MTB3-TER25-B-100 | M2-M22 | 42 | 25 | 42 | 185 | 100 | 85 | 23.825 | M12*1.75P | TER25 |
| MTB3-TER32-B-100 | M2-M30 | 50 | 32 | 50 | 185 | 100 | 85 | 23.825 | M12*1.75P | TER32 |
| MTB4-TER16-B-100 | M2-M12 | 28 | 16 | 28 | 208 | 100 | 108 | 31.267 | M16*2.0P | TER16 |
| MTB4-TER20-B-100 | M2-M16 | 34 | 20 | 34 | 208 | 100 | 108 | 31.267 | M16*2.0P | TER20 |
| MTB4-TER25-B-100 | M2-M22 | 42 | 25 | 42 | 208 | 100 | 108 | 31.267 | M16*2.0P | TER25 |
| MTB4-TER32-B-100 | M2-M30 | 50 | 32 | 50 | 208 | 100 | 108 | 31.267 | M16*2.0P | TER32 |
| MTB5-TER32-100 | M2-M30 | 50 | 32 | 50 | 236 | 100 | 136 | 44.399 | M20*2.5P | TER32 |
All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Interface / Taper | MTB2, MTB3, MTB4, MTB5 |
|---|---|
| Tapping Range | M2-M12 |
