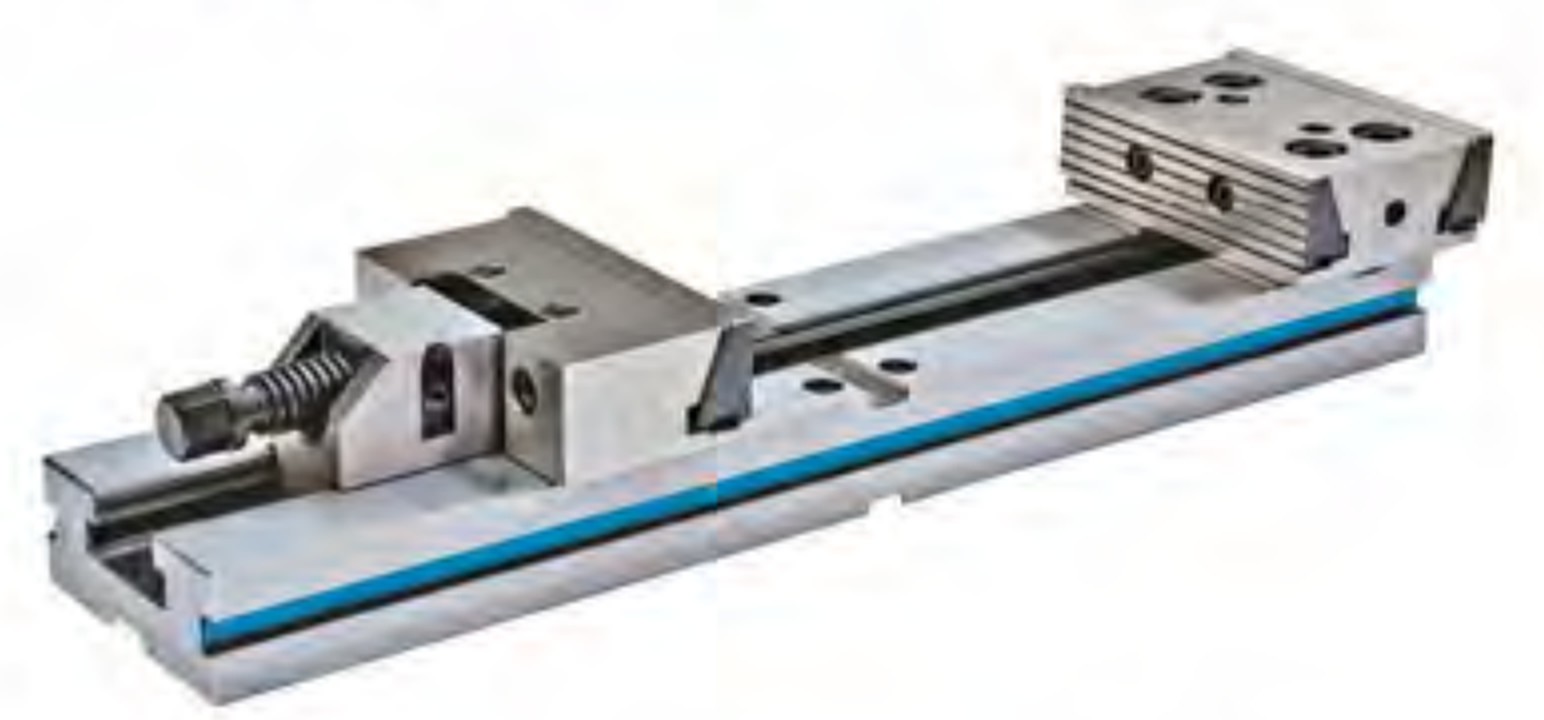

ART.20 Single Large Opening XL Vise — ART.20单向夹紧长钳
ART.20 XL vise（单向夹紧长钳）— single direction, extra large opening up to 800mm, 17 sizes.
Description
The ART.20 single large opening XL vise（ART.20单向夹紧长钳）is part of NBD’s XL vise series（长钳系列平口钳）.
XL vises enable 2 vises in 1 — quickly change from double vise（双工位开口度）to single vise（超长开口度）with very large opening.

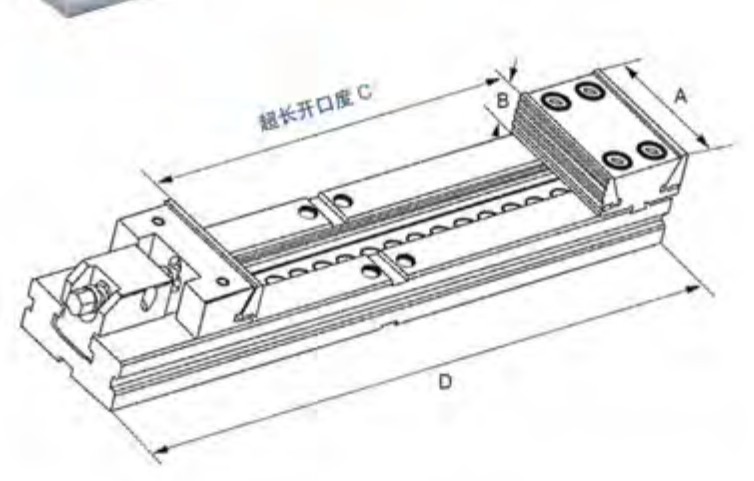

Dimension drawing（尺寸图）
Specification (17 models)
| Model | Jaw width A | Jaw height B | Jaw open C | Base length D | Weight (kg) |
|---|---|---|---|---|---|
| ART.20-1×290 | 100 | 30 | 290 | 460 | 10 |
| ART.20-2×320 | 125 | 40 | 320 | 520 | 17 |
| ART.20-3×360 | 150 | 50 | 360 | 580 | 31 |
| ART.20-3×460 | 150 | 50 | 460 | 680 | 34 |
| ART.20-4×400 | 175 | 60 | 400 | 666 | 46 |
| ART.20-4×500 | 175 | 60 | 500 | 766 | 51 |
| ART.20-4×600 | 175 | 60 | 600 | 866 | 56 |
| ART.20-4×700 | 175 | 60 | 700 | 966 | 61 |
| ART.20-5×500 | 200 | 65 | 500 | 805 | 85 |
| ART.20-5×600 | 200 | 65 | 600 | 905 | 92 |
| ART.20-5×700 | 200 | 65 | 700 | 1005 | 99 |
| ART.20-5×800 | 200 | 65 | 800 | 1105 | 106 |
| ART.20-5×900 | 200 | 65 | 900 | 1205 | 113 |
| ART.20-6×500 | 300 | 80 | 500 | 900 | 127 |
| ART.20-6×600 | 300 | 80 | 600 | 1000 | 137 |
| ART.20-6×700 | 300 | 80 | 700 | 1100 | 147 |
| ART.20-6×800 | 300 | 80 | 800 | 1200 | 157 |
Dimensions in mm. Beijing Shuangfengli (NBD Machinery) manufactures precision workholding and CNC tooling factory-direct with short lead times and worldwide support.
