SD-VER Straight Shank Micro Tapping Holder (DIN1835-B+E)

Tapping chuck/holder M3-M10 for micro precision tapping in tight spaces. 12 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: SD20-VER16-80 Category: Tags: , , , ,

Description

The SD-VER Straight Shank Micro Tapping Holder (DIN1835-B+E) is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for micro precision tapping in tight spaces. Tapping range M3-M10 with 12 catalogue models.

Model Naming

Model = Shank size + VER (micro tension-compression code) + ER collet size (VER16…VER32) + L1 length.

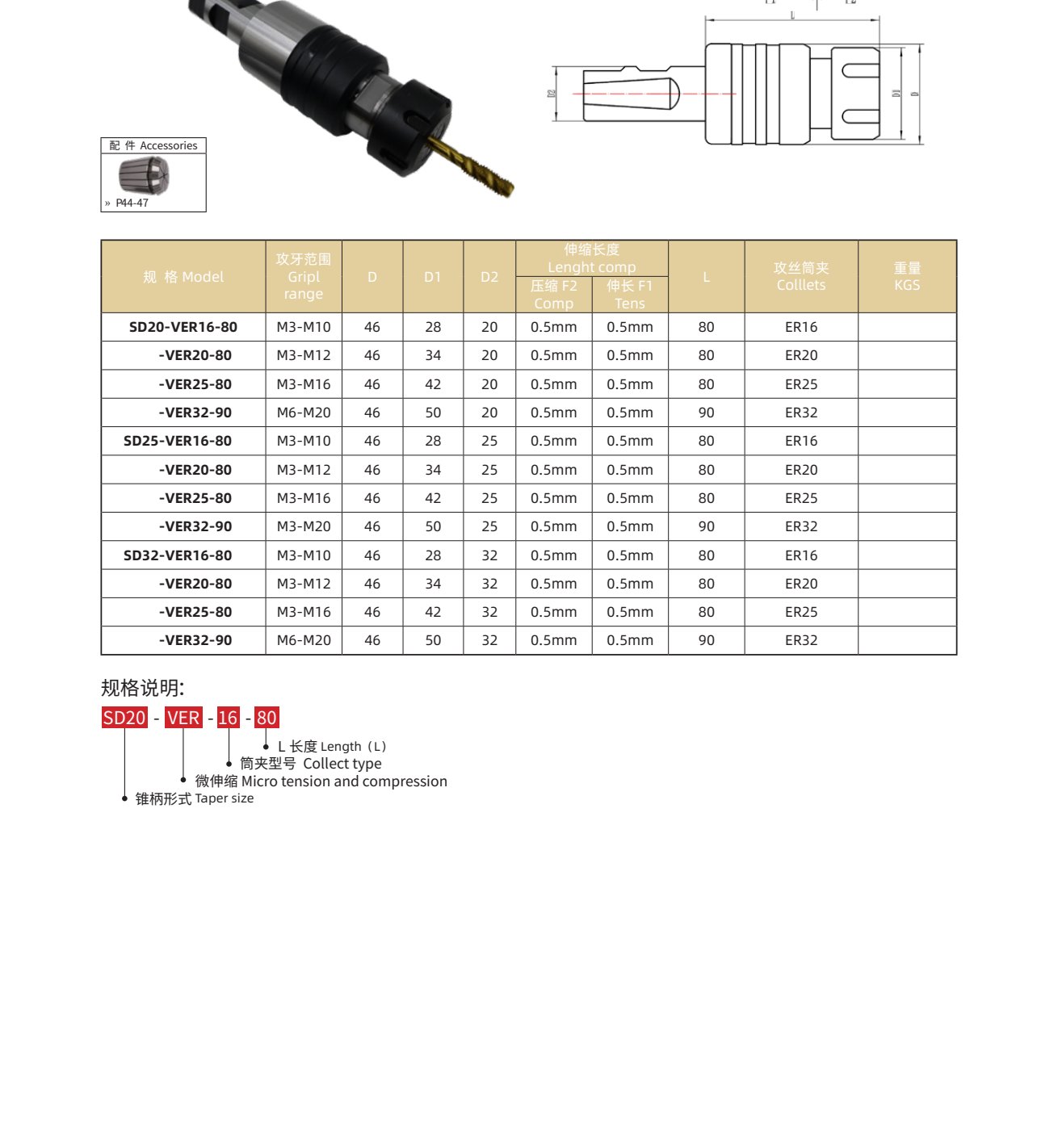

Specification

Model Spec Dimensions (mm)
SD20-VER16-80 M3-M10 46 28 20 0.5mm 0.5mm 80 ER16
SD20-VER20-80 M3-M12 46 34 20 0.5mm 0.5mm 80 ER20
SD20-VER25-80 M3-M16 46 42 20 0.5mm 0.5mm 80 ER25
SD20-VER32-90 M6-M20 46 50 20 0.5mm 0.5mm 90 ER32
SD25-VER16-80 M3-M10 46 28 25 0.5mm 0.5mm 80 ER16
SD25-VER20-80 M3-M12 46 34 25 0.5mm 0.5mm 80 ER20
SD25-VER25-80 M3-M16 46 42 25 0.5mm 0.5mm 80 ER25
SD25-VER32-90 M3-M20 46 50 25 0.5mm 0.5mm 90 ER32
SD32-VER16-80 M3-M10 46 28 32 0.5mm 0.5mm 80 ER16
SD32-VER20-80 M3-M12 46 34 32 0.5mm 0.5mm 80 ER20
SD32-VER25-80 M3-M16 46 42 32 0.5mm 0.5mm 80 ER25
SD32-VER32-90 M6-M20 46 50 32 0.5mm 0.5mm 90 ER32

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

SD20, SD25, SD32
Tapping Range

M3-M10
