HSK-T Turning Tool for External & Facing SBT HSK63T/20×20/25×25
Mill-turn combined tool holder HSK series, fits HSK63T / 20×20 / 25×25 turrets, 10 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool for External & Facing SBT HSK63T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding tooling inserts . Available in HSK63T and 20×20 and 25×25 interfaces with 10 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK-T63-SBT20*20R-95: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBT) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification

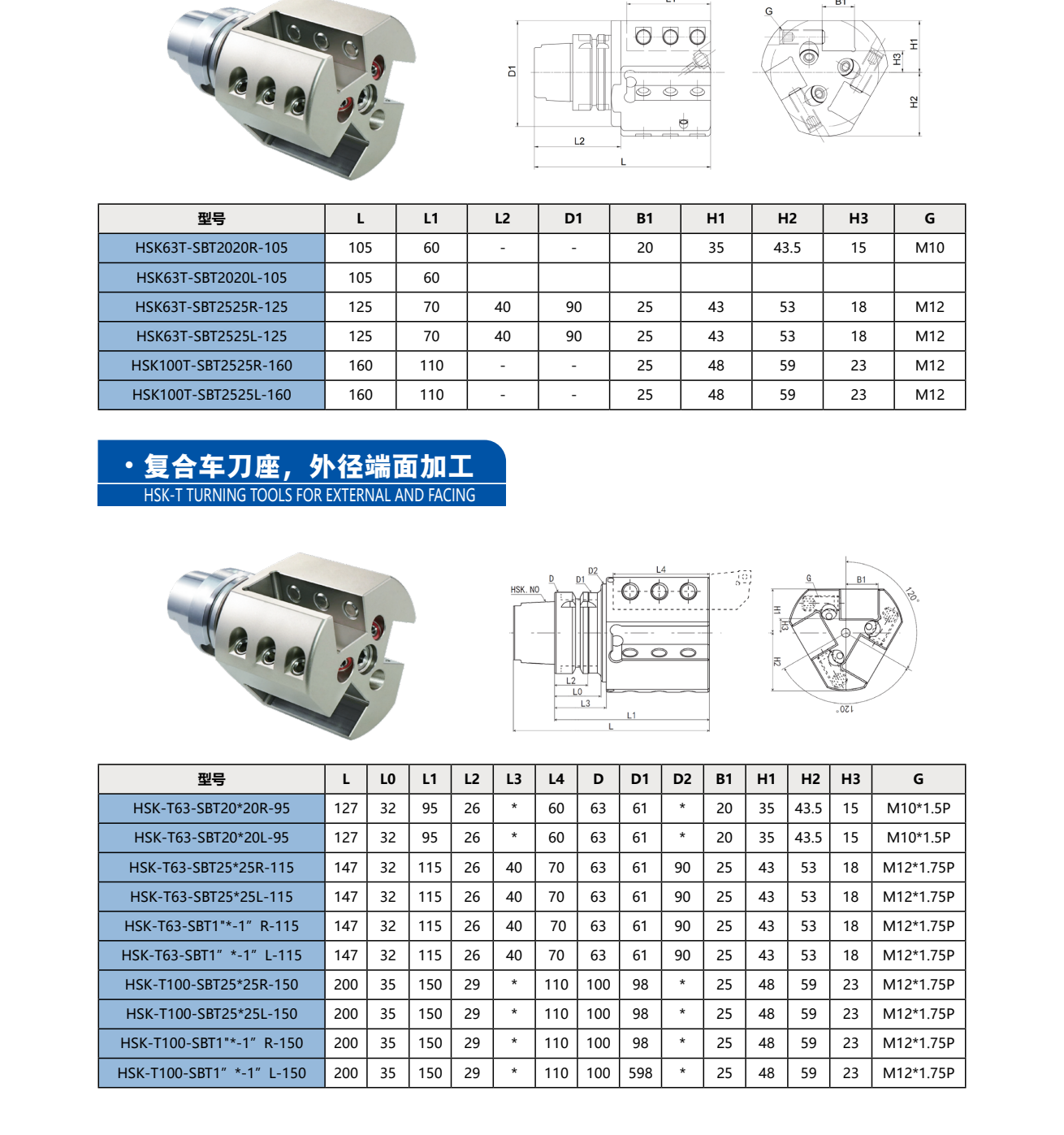

| 型号 | L | L0 | L1 | L2 | L3 | L4 | D | D1 | D2 | B1 | H1 | H2 | H3 | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HSK-T63-SBT20*20R-95 | 127 | 32 | 95 | 26 | * | 60 | 63 | 61 | * | 20 | 35 | 43.5 | 15 | M10*1.5P |
| HSK-T63-SBT20*20L-95 | 127 | 32 | 95 | 26 | * | 60 | 63 | 61 | * | 20 | 35 | 43.5 | 15 | M10*1.5P |
| HSK-T63-SBT25*25R-115 | 147 | 32 | 115 | 26 | 40 | 70 | 63 | 61 | 90 | 25 | 43 | 53 | 18 | M12*1.75P |
| HSK-T63-SBT25*25L-115 | 147 | 32 | 115 | 26 | 40 | 70 | 63 | 61 | 90 | 25 | 43 | 53 | 18 | M12*1.75P |
| HSK-T63-SBT1"*-1”R-115 | 147 | 32 | 115 | 26 | 40 | 70 | 63 | 61 | 90 | 25 | 43 | 53 | 18 | M12*1.75P |
| HSK-T63-SBT1”*-1”L-115 | 147 | 32 | 115 | 26 | 40 | 70 | 63 | 61 | 90 | 25 | 43 | 53 | 18 | M12*1.75P |
| HSK-T100-SBT25*25R-150 | 200 | 35 | 150 | 29 | * | 110 | 100 | 98 | * | 25 | 48 | 59 | 23 | M12*1.75P |
| HSK-T100-SBT25*25L-150 | 200 | 35 | 150 | 29 | * | 110 | 100 | 98 | * | 25 | 48 | 59 | 23 | M12*1.75P |
| HSK-T100-SBT1"*-1”R-150 | 200 | 35 | 150 | 29 | * | 110 | 100 | 98 | * | 25 | 48 | 59 | 23 | M12*1.75P |
| HSK-T100-SBT1”*-1”L-150 | 200 | 35 | 150 | 29 | * | 110 | 100 | 598 | * | 25 | 48 | 59 | 23 | M12*1.75P |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, 20×20, 25×25 |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 10 |
