HSK-T Turning Tool Holder DCLNR | DCLNL 95°/80° (Negative, CNMG)
Mill-turn combined tool holder HSK63T series for CNMG inserts with 95°/80° cutting geometry, fits HSK63T / HSK100T turrets, 12 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description

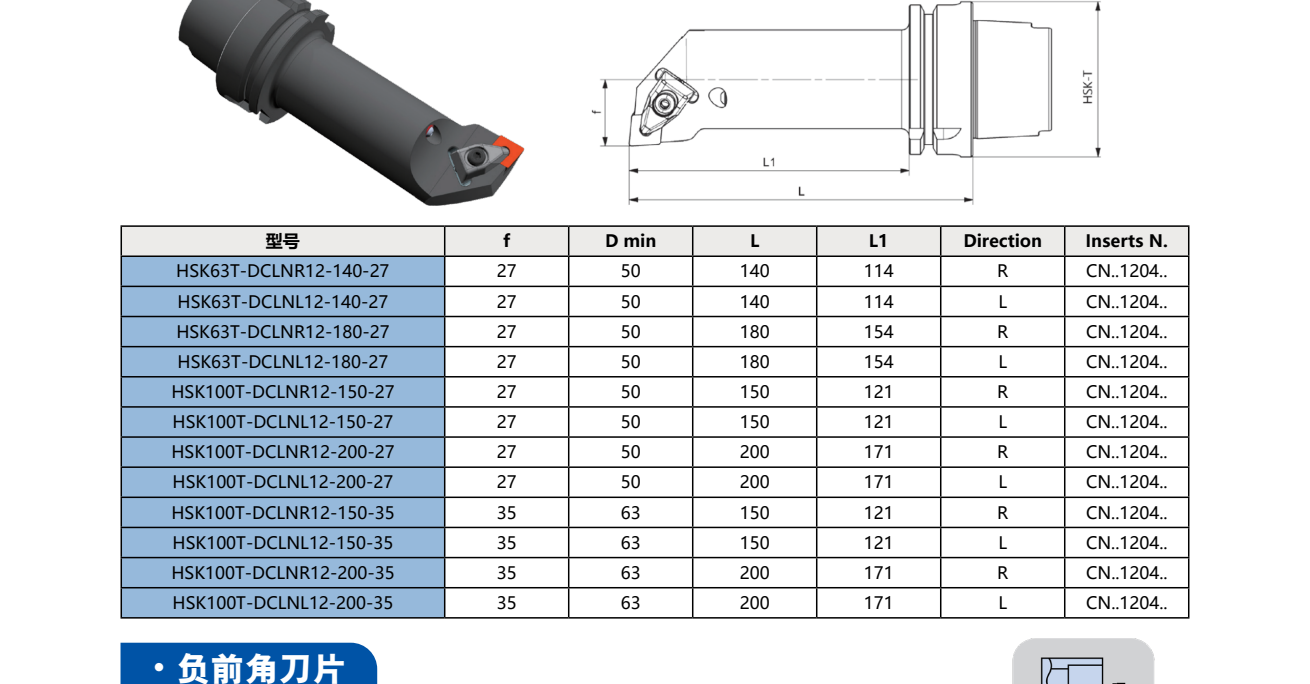

The HSK-T Turning Tool Holder DCLNR | DCLNL 95°/80° (Negative, CNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO CNMG inserts with 95°/80° geometry. Available in HSK63T and HSK100T interfaces with 12 catalogue models covering common lengths and insert sizes.
Insert: CNMG (80° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-DCLNR12-140-27: the code encodes the turret interface (HSK63T / HSK100T), the holder series (HSK63T) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification
| 型号 | f | D min | L | L1 | Direction | Inserts N. |
|---|---|---|---|---|---|---|
| HSK63T-DCLNR12-140-27 | 27 | 50 | 140 | 114 | R | CN..1204.. |
| HSK63T-DCLNL12-140-27 | 27 | 50 | 140 | 114 | L | CN..1204.. |
| HSK63T-DCLNR12-180-27 | 27 | 50 | 180 | 154 | R | CN..1204.. |
| HSK63T-DCLNL12-180-27 | 27 | 50 | 180 | 154 | L | CN..1204.. |
| HSK100T-DCLNR12-150-27 | 27 | 50 | 150 | 121 | R | CN..1204.. |
| HSK100T-DCLNL12-150-27 | 27 | 50 | 150 | 121 | L | CN..1204.. |
| HSK100T-DCLNR12-200-27 | 27 | 50 | 200 | 171 | R | CN..1204.. |
| HSK100T-DCLNL12-200-27 | 27 | 50 | 200 | 171 | L | CN..1204.. |
| HSK100T-DCLNR12-150-35 | 35 | 63 | 150 | 121 | R | CN..1204.. |
| HSK100T-DCLNL12-150-35 | 35 | 63 | 150 | 121 | L | CN..1204.. |
| HSK100T-DCLNR12-200-35 | 35 | 63 | 200 | 171 | R | CN..1204.. |
| HSK100T-DCLNL12-200-35 | 35 | 63 | 200 | 171 | L | CN..1204.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | CNMG |
| Hand | N |
| Models | 12 |
