HSK-T Turning Tool Holder DTJNR (Negative)
Mill-turn combined tool holder HSK63T series, fits HSK63T turrets, 2 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder DTJNR (Negative) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding tooling inserts . Available in HSK63T interfaces with 2 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK63T-DTJNR-45065-16: HSK63T = taper size; D = insert clamping way; T = insert shape (see table); J = holder lead angle; N = insert clearance angle; R = cutting direction (R/L/N); 45065 = f (mm); 16 = insert size.
Specification

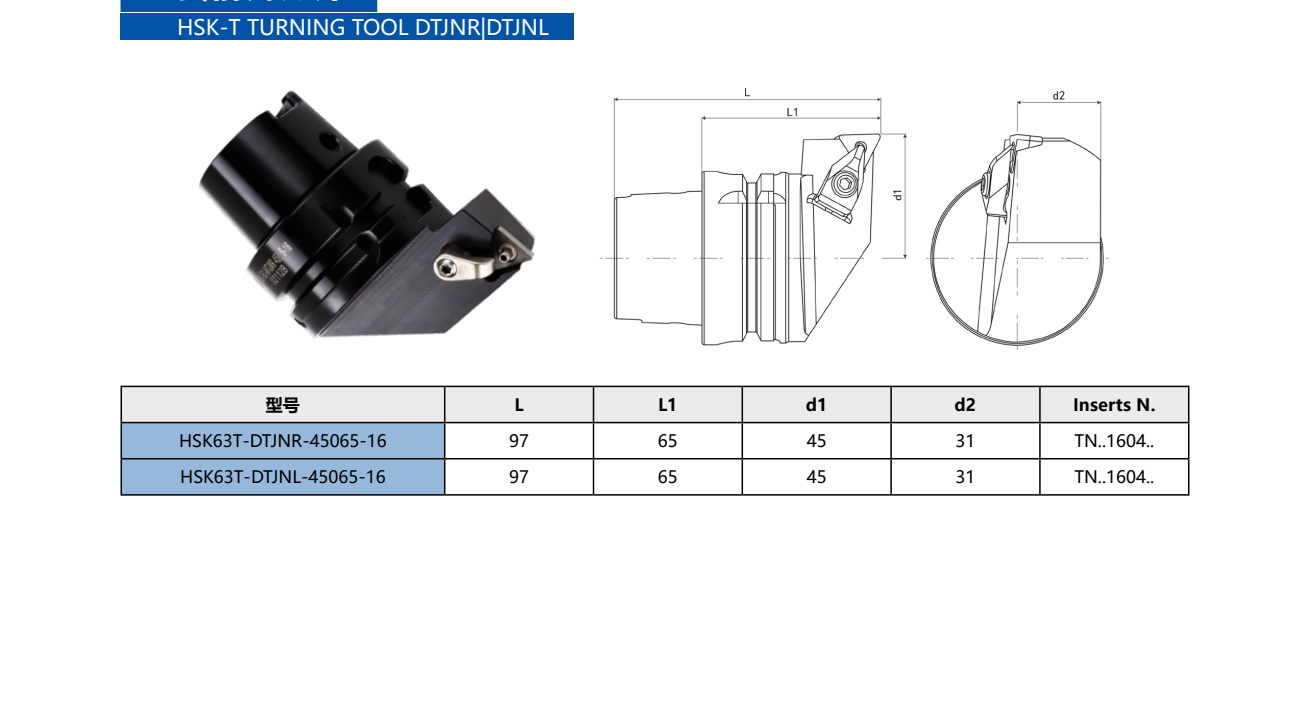

| 型号 | L | L1 | d1 | d2 | Inserts N. |
|---|---|---|---|---|---|
| HSK63T-DTJNR-45065-16 | 97 | 65 | 45 | 31 | TN..1604.. |
| HSK63T-DTJNL-45065-16 | 97 | 65 | 45 | 31 | TN..1604.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 2 |
