HSK-T Turning Tool Holder DVVNN 72.5°/35°/72.5° (Negative, VNMG)
Mill-turn combined tool holder HSK63T series for VNMG inserts with 72.5°/35°/72.5° cutting geometry, fits HSK63T / HSK100T turrets, 4 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder DVVNN 72.5°/35°/72.5° (Negative, VNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO VNMG inserts with 72.5°/35°/72.5° geometry. Available in HSK63T and HSK100T interfaces with 4 catalogue models covering common lengths and insert sizes.
Insert: VNMG (35° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-DVVNN-100-16: HSK63T = taper size; D = insert clamping way; V = insert shape (VNMG); V = holder lead angle; N = insert clearance angle; N = cutting direction (R/L/N); 100 = f (mm); 16 = insert size.
Specification
| 型号 | L | Direction | Inserts N. |
|---|---|---|---|

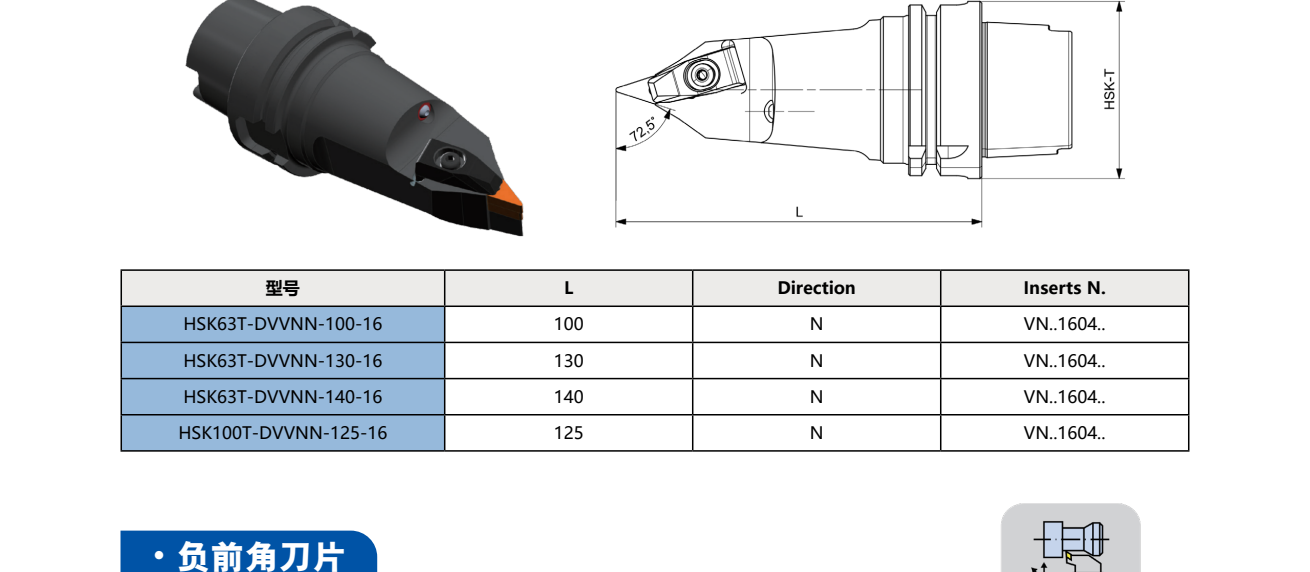

| HSK63T-DVVNN-100-16 | 100 | N | VN..1604.. |
| HSK63T-DVVNN-130-16 | 130 | N | VN..1604.. |
| HSK63T-DVVNN-140-16 | 140 | N | VN..1604.. |
| HSK100T-DVVNN-125-16 | 125 | N | VN..1604.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T |
|---|---|
| Insert Shape | VNMG |
| Hand | N |
| Models | 4 |
