HSK-T Turning Tool Holder SVPBR | SVPBL | SVPCR | SVPCL 117.5°/35° (Positive, VNMG)
Mill-turn combined tool holder HSK63T series for VNMG inserts with 117.5°/35° cutting geometry, fits HSK63T / HSK100T turrets, 8 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description

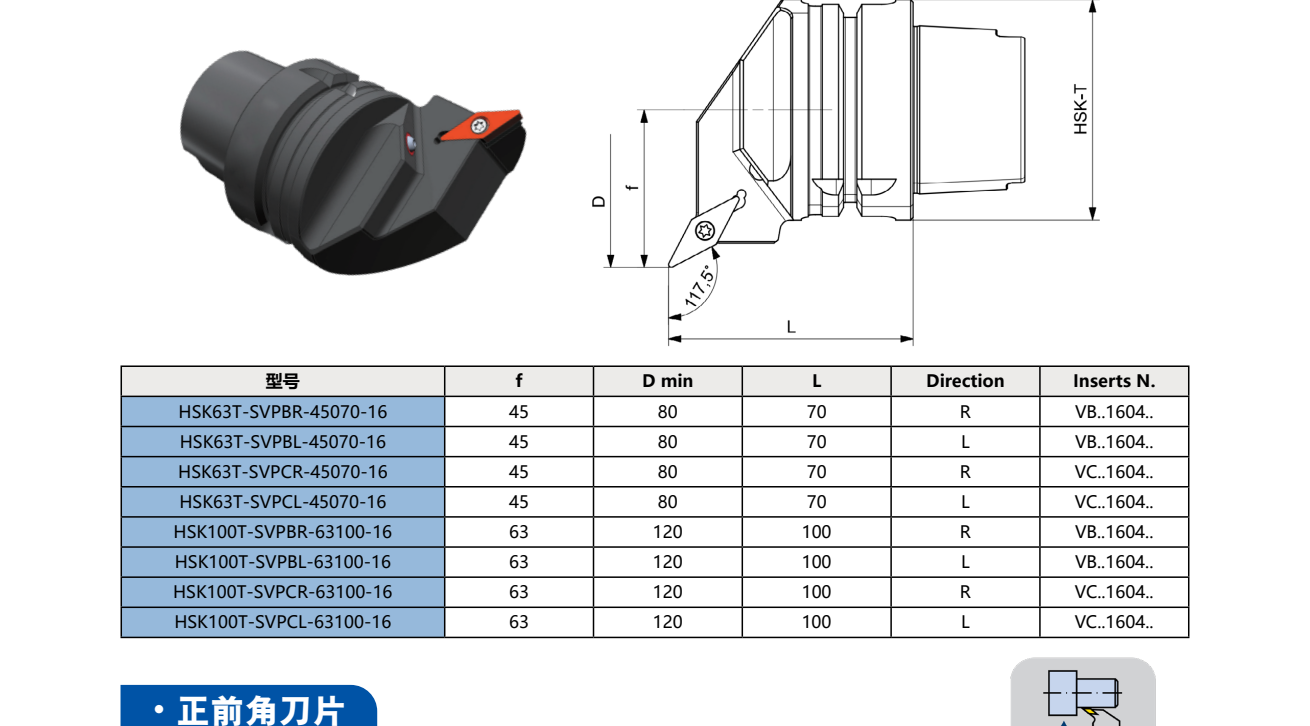

The HSK-T Turning Tool Holder SVPBR | SVPBL | SVPCR | SVPCL 117.5°/35° (Positive, VNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO VNMG inserts with 117.5°/35° geometry. Available in HSK63T and HSK100T interfaces with 8 catalogue models covering common lengths and insert sizes.
Insert: VNMG (35° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-SVPBR-45070-16: HSK63T = taper size; S = insert clamping way; V = insert shape (VNMG); P = holder lead angle; B = insert clearance angle; R = cutting direction (R/L/N); 45070 = f (mm); 16 = insert size.
Specification
| 型号 | f | D min | L | Direction | Inserts N. |
|---|---|---|---|---|---|
| HSK63T-SVPBR-45070-16 | 45 | 80 | 70 | R | VB..1604.. |
| HSK63T-SVPBL-45070-16 | 45 | 80 | 70 | L | VB..1604.. |
| HSK63T-SVPCR-45070-16 | 45 | 80 | 70 | R | VC..1604.. |
| HSK63T-SVPCL-45070-16 | 45 | 80 | 70 | L | VC..1604.. |
| HSK100T-SVPBR-63100-16 | 63 | 120 | 100 | R | VB..1604.. |
| HSK100T-SVPBL-63100-16 | 63 | 120 | 100 | L | VB..1604.. |
| HSK100T-SVPCR-63100-16 | 63 | 120 | 100 | R | VC..1604.. |
| HSK100T-SVPCL-63100-16 | 63 | 120 | 100 | L | VC..1604.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
