HSK-T Turning Tool for External & Facing SBT HSK63T/HSK100T/20×20/25×25
Mill-turn combined tool holder HSK63T series, fits HSK63T / HSK100T / 20×20 / 25×25 turrets, 6 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool for External & Facing SBT HSK63T/HSK100T/20×20/25×25 is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding tooling inserts . Available in HSK63T and HSK100T and 20×20 and 25×25 interfaces with 6 catalogue models covering common lengths and insert sizes.
Model Naming
Example — HSK63T-SBT2020R-105: the code encodes the turret interface (HSK63T / HSK100T), the holder series (SBT) and the tool bore or shank size with projection length — see the naming chart on the series page for the full key.
Specification

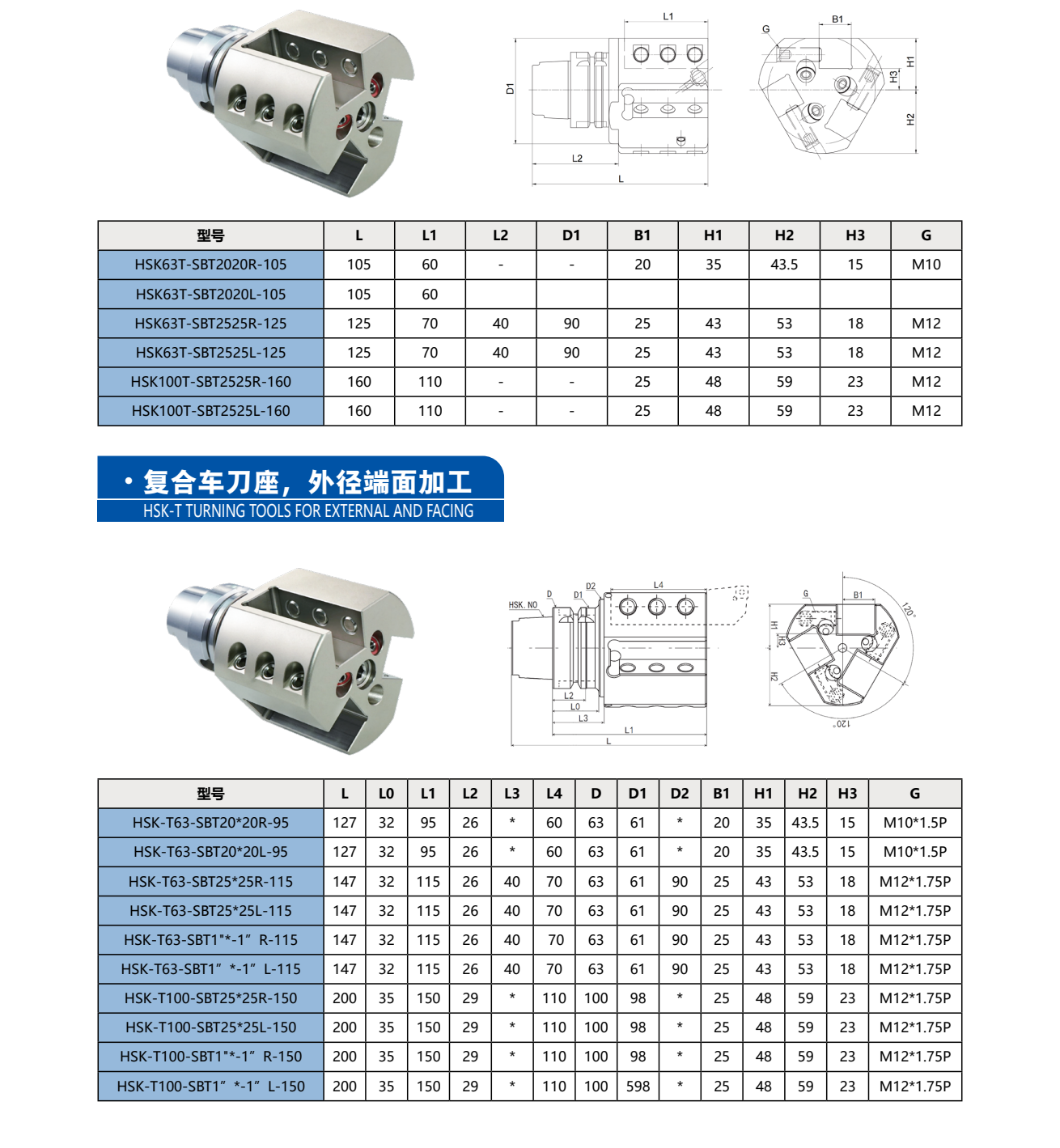

| 型号 | L | L1 | L2 | D1 | B1 | H1 | H2 | H3 | G |
|---|---|---|---|---|---|---|---|---|---|
| HSK63T-SBT2020R-105 | 105 | 60 | - | - | 20 | 35 | 43.5 | 15 | M10 |
| HSK63T-SBT2020L-105 | 105 | 60 | |||||||
| HSK63T-SBT2525R-125 | 125 | 70 | 40 | 90 | 25 | 43 | 53 | 18 | M12 |
| HSK63T-SBT2525L-125 | 125 | 70 | 40 | 90 | 25 | 43 | 53 | 18 | M12 |
| HSK100T-SBT2525R-160 | 160 | 110 | - | - | 25 | 48 | 59 | 23 | M12 |
| HSK100T-SBT2525L-160 | 160 | 110 | - | - | 25 | 48 | 59 | 23 | M12 |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T, HSK100T, 20×20, 25×25 |
|---|---|
| Insert Shape | — |
| Hand | N |
| Models | 6 |
