BT/SK Shrink Chuck 3° — BT/SK热缩刀柄3度
BT/SK热缩刀柄3度（BT/SK Shrink Chuck 3°）— NBD precision tool holder.
Description
The BT/SK Shrink Chuck 3°（BT/SK热缩刀柄3度）is part of NBD’s precision tool holder line for CNC machining centers.
Dimension drawing（尺寸图）
Specification（BT/SK热缩刀柄3度）— 56 models

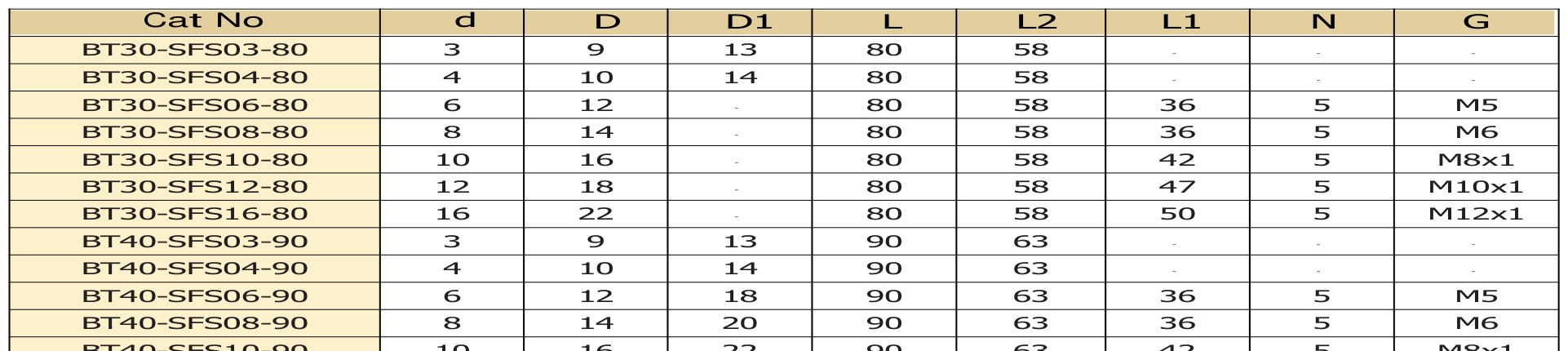

| Cat No | d | D | D1 | L | L2 | L1 | N | G |
|---|---|---|---|---|---|---|---|---|
| BT30-SFS03-80 | 3 | 9 | 13 | 80 | 58 | - | - | - |
| BT30-SFS04-80 | 4 | 10 | 14 | 80 | 58 | - | - | - |
| BT30-SFS06-80 | 6 | 12 | - | 80 | 58 | 36 | 5 | M5 |
| BT30-SFS08-80 | 8 | 14 | - | 80 | 58 | 36 | 5 | M6 |
| BT30-SFS10-80 | 10 | 16 | - | 80 | 58 | 42 | 5 | M8x1 |
| BT30-SFS12-80 | 12 | 18 | - | 80 | 58 | 47 | 5 | M10x1 |
| BT30-SFS16-80 | 16 | 22 | - | 80 | 58 | 50 | 5 | M12x1 |
| BT40-SFS03-90 | 3 | 9 | 13 | 90 | 63 | - | - | - |
| BT40-SFS04-90 | 4 | 10 | 14 | 90 | 63 | - | - | - |
| BT40-SFS06-90 | 6 | 12 | 18 | 90 | 63 | 36 | 5 | M5 |
| BT40-SFS08-90 | 8 | 14 | 20 | 90 | 63 | 36 | 5 | M6 |
| BT40-SFS10-90 | 10 | 16 | 22 | 90 | 63 | 42 | 5 | M8x1 |
| BT40-SFS12-90 | 12 | 18 | 24 | 90 | 63 | 47 | 5 | M10x1 |
| BT40-SFS16-90 | 16 | 22 | 28 | 90 | 63 | 50 | 5 | M12x1 |
| BT40-SFS03-120 | 3 | 9 | 16 | 120 | 93 | - | - | - |
| BT40-SFS04-120 | 4 | 10 | 17 | 120 | 93 | - | - | - |
| BT40-SFS06-120 | 6 | 12 | 21 | 120 | 93 | 36 | 5 | M5 |
| BT40-SFS08-120 | 8 | 14 | 23 | 120 | 93 | 36 | 5 | M6 |
| BT40-SFS10-120 | 10 | 16 | 25 | 120 | 93 | 42 | 5 | M8x1 |
| BT40-SFS12-120 | 12 | 18 | 27 | 120 | 93 | 47 | 5 | M10x1 |
| BT40-SFS16-120 | 16 | 22 | 31 | 120 | 93 | 50 | 5 | M12x1 |
| BT40-SFS03-160 | 3 | 9 | 19 | 160 | 133 | - | - | - |
| BT40-SFS04-160 | 4 | 10 | 20 | 160 | 133 | - | - | - |
| BT40-SFS06-160 | 6 | 12 | 24 | 160 | 133 | 36 | 5 | M5 |
| BT40-SFS08-160 | 8 | 14 | 26 | 160 | 133 | 36 | 5 | M6 |
| BT40-SFS10-160 | 10 | 16 | 28 | 160 | 133 | 42 | 5 | M8x1 |
| BT40-SFS12-160 | 12 | 18 | 30 | 160 | 133 | 47 | 5 | M10x1 |
| BT40-SFS16-160 | 16 | 22 | 34 | 160 | 133 | 50 | 5 | M12x1 |
| SK30-SFS03-80 | 3 | 9 | 13 | 80 | 60.9 | - | - | - |
| SK30-SFS04-80 | 4 | 10 | 14 | 80 | 60.9 | - | - | - |
| SK30-SFS06-80 | 6 | 12 | 18 | 80 | 60.9 | 36 | 5 | M5 |
| SK30-SFS08-80 | 8 | 14 | 20 | 80 | 60.9 | 36 | 5 | M6 |
| SK30-SFS10-80 | 10 | 16 | 22 | 80 | 60.9 | 42 | 5 | M8x1 |
| SK30-SFS12-80 | 12 | 18 | 24 | 80 | 60.9 | 47 | 5 | M10x1 |
| SK30-SFS16-80 | 16 | 22 | 28 | 80 | 60.9 | 50 | 5 | M12x1 |
| SK40-SFS03-90 | 3 | 9 | 13 | 90 | 70.9 | - | - | - |
| SK40-SFS04-90 | 4 | 10 | 14 | 90 | 70.9 | - | - | - |
| SK40-SFS06-90 | 6 | 12 | 18 | 90 | 70.9 | 36 | 5 | M5 |
| SK40-SFS08-90 | 8 | 14 | 20 | 90 | 70.9 | 36 | 5 | M6 |
| SK40-SFS10-90 | 10 | 16 | 22 | 90 | 70.9 | 42 | 5 | M8x1 |
| SK40-SFS12-90 | 12 | 18 | 24 | 90 | 70.9 | 47 | 5 | M10x1 |
| SK40-SFS16-90 | 16 | 22 | 28 | 90 | 70.9 | 50 | 5 | M12x1 |
| SK40-SFS03-120 | 3 | 9 | 16 | 120 | 100.9 | - | - | - |
| SK40-SFS04-120 | 4 | 10 | 17 | 120 | 100.9 | - | - | - |
| SK40-SFS06-120 | 6 | 12 | 21 | 120 | 100.9 | 36 | 5 | M5 |
| SK40-SFS08-120 | 8 | 14 | 23 | 120 | 100.9 | 36 | 5 | M6 |
| SK40-SFS10-120 | 10 | 16 | 25 | 120 | 100.9 | 42 | 5 | M8x1 |
| SK40-SFS12-120 | 12 | 18 | 27 | 120 | 100.9 | 47 | 5 | M10x1 |
| SK40-SFS16-120 | 16 | 22 | 31 | 120 | 100.9 | 50 | 5 | M12x1 |
| SK40-SFS03-160 | 3 | 9 | 19 | 160 | 140.9 | - | - | - |
| SK40-SFS04-160 | 4 | 10 | 20 | 160 | 140.9 | - | - | - |
| SK40-SFS06-160 | 6 | 12 | 24 | 160 | 140.9 | 36 | 5 | M5 |
| SK40-SFS08-160 | 8 | 14 | 26 | 160 | 140.9 | 36 | 5 | M6 |
| SK40-SFS10-160 | 10 | 16 | 28 | 160 | 140.9 | 42 | 5 | M8x1 |
| SK40-SFS12-160 | 12 | 18 | 30 | 160 | 140.9 | 47 | 5 | M10x1 |
| SK40-SFS16-160 | 16 | 22 | 34 | 160 | 140.9 | 50 | 5 | M12x1 |
Dimensions in mm. Beijing Shuangfengli (NBD Machinery) — factory-direct, short lead time.
