SK/DAT-TER-B Rigid Tension-Comp Tapping Holder M3-M20

Tapping chuck/holder M2-M16 for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). 10 catalogue models. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.

SKU: SK40-TER16-B-100 Category: Tags: , , , ,

Description

The SK/DAT-TER-B Rigid Tension-Comp Tapping Holder M3-M20 is part of NBD’s tapping tool holder line for CNC machining centers, tapping machines, drill presses and lathes, designed for rigid synchronous tapping on machining centers (spindle rotation and feed synchronized). Tapping range M2-M16 with 10 catalogue models.

Features

  • 本体规格：DIN69871-A 或 GB10944
  • Spindle Conicity Standard: JDIN69871A or GB10944
  • Rigid function ensures machining center spindle rotate in
  • Can be replaced by ER collet for gripping cutting tool, Drill
  • Don’t lock excessively of the clamping nut in case of damage,

Model Naming

Model = Shank size + TER (rigid tapping function code) + ER collet size (TER16…TER32) + A/B design + L1 length.

Specification

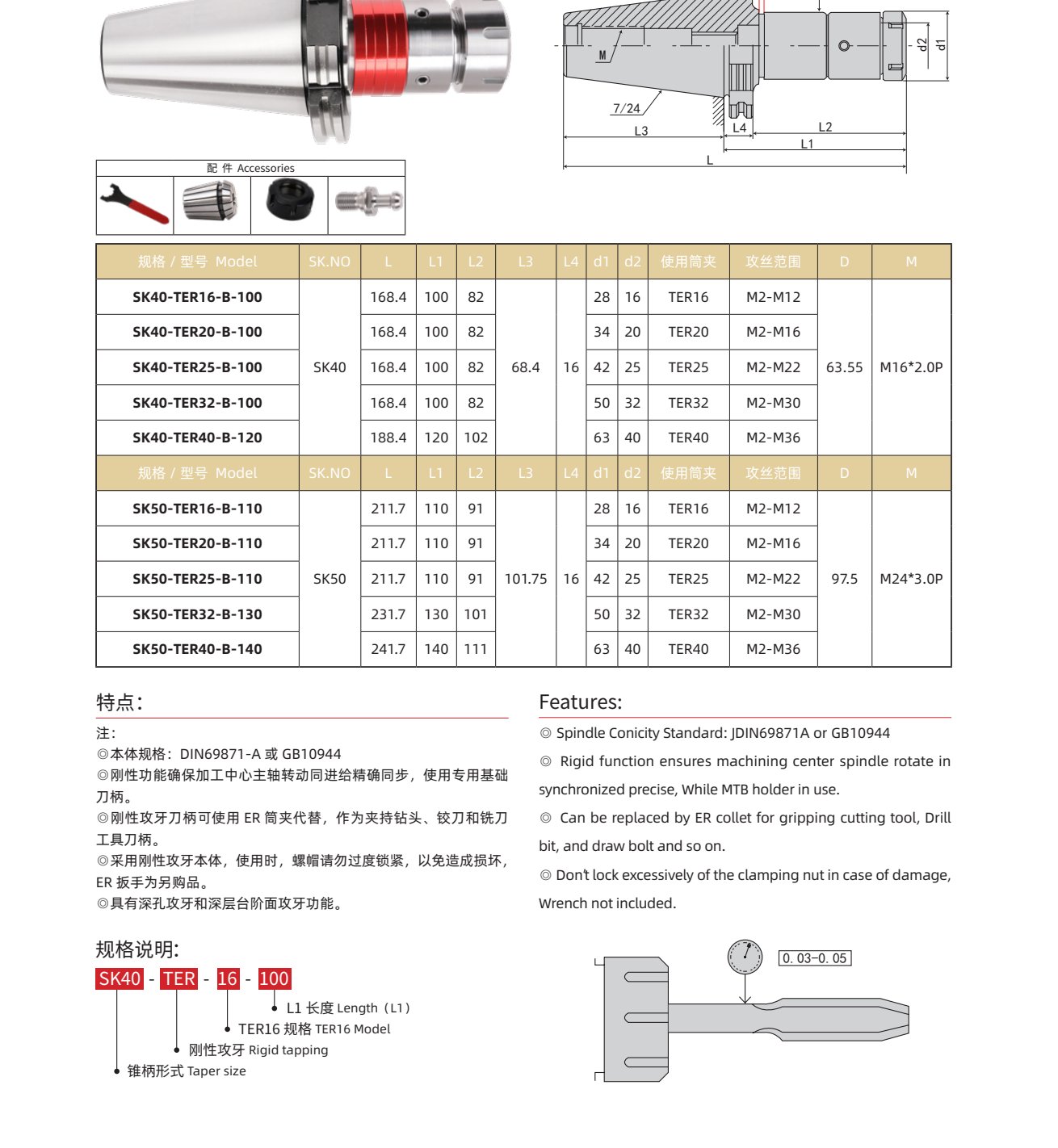

Model Spec Dimensions (mm)
SK40-TER16-B-100
SK40-TER20-B-100 168.4 100 82 34 20 TER20 M2-M16
SK40-TER25-B-100 168.4 100 82 42 25 TER25 M2-M22
SK40-TER32-B-100 168.4 100 82 50 32 TER32 M2-M30
SK40-TER40-B-120 188.4 120 102 63 40 TER40 M2-M36
SK50-TER16-B-110
SK50-TER20-B-110 211.7 110 91 34 20 TER20 M2-M16
SK50-TER25-B-110 211.7 110 91 42 25 TER25 M2-M22
SK50-TER32-B-130 231.7 130 101 50 32 TER32 M2-M30
SK50-TER40-B-140 241.7 140 111 63 40 TER40 M2-M36

All dimensions in mm. Custom sizes and other interfaces on request — send us your drawing for a fast quote.

NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders, tapping chucks and workholding with short lead times and factory-direct support for worldwide distributors and end users.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.

Additional information

Interface / Taper

SK40, SK50
Tapping Range

M2-M16
