Chuck for Shaft Machining II (SF) — SF 轴加工卡盘（二）

SF 轴加工卡盘（二）（Chuck for Shaft Machining II (SF)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.

SKU: NBD-CK-031 Categories: ,

Description

The Chuck for Shaft Machining II (SF)（SF 轴加工卡盘（二））is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

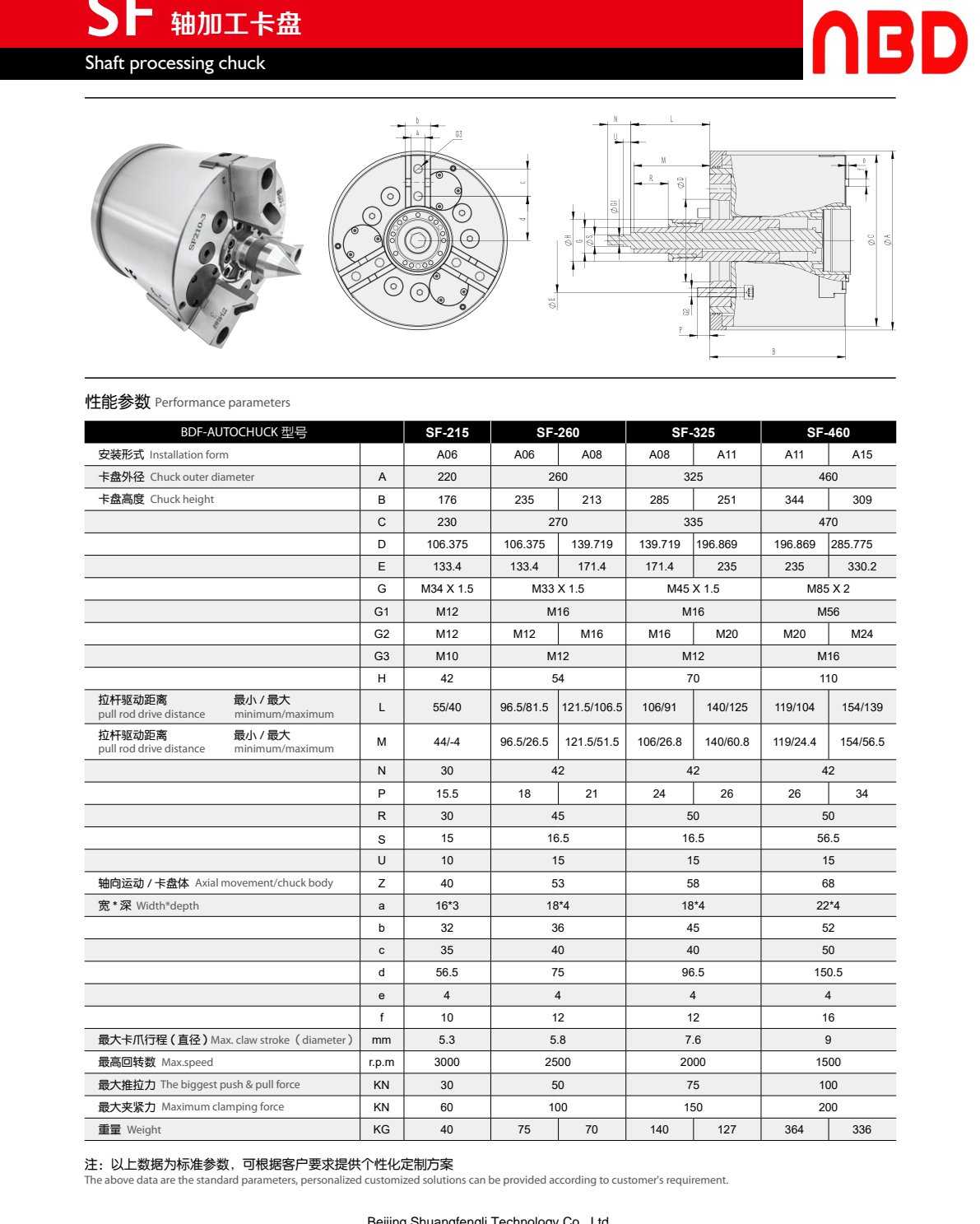

BDF-AUTOCHUCK 型号 SF-215 SF-260 SF-325 SF-460 安装形式 Installation form A06 A06 A08 A08 A11 A11 A15 卡盘外径 Chuck outer diameter A 220 260 325 460 卡盘高度 Chuck height B 176 235 213 285 251 344 309 pull rod drive distance minimum/maximum L 55/40 96.5/81.5 121.5/106.5 106/91 140/125 119/104 154/139 pull rod drive distance minimum/maximum M 44/-4 96.5/26.5 121.5/51.5 106/26.8 140/60.8 119/24.4 154/56.5

All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.
