Description
The Chuck-Seat Type Holder (KJ-T)（KJ-T 夹座式卡盘）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

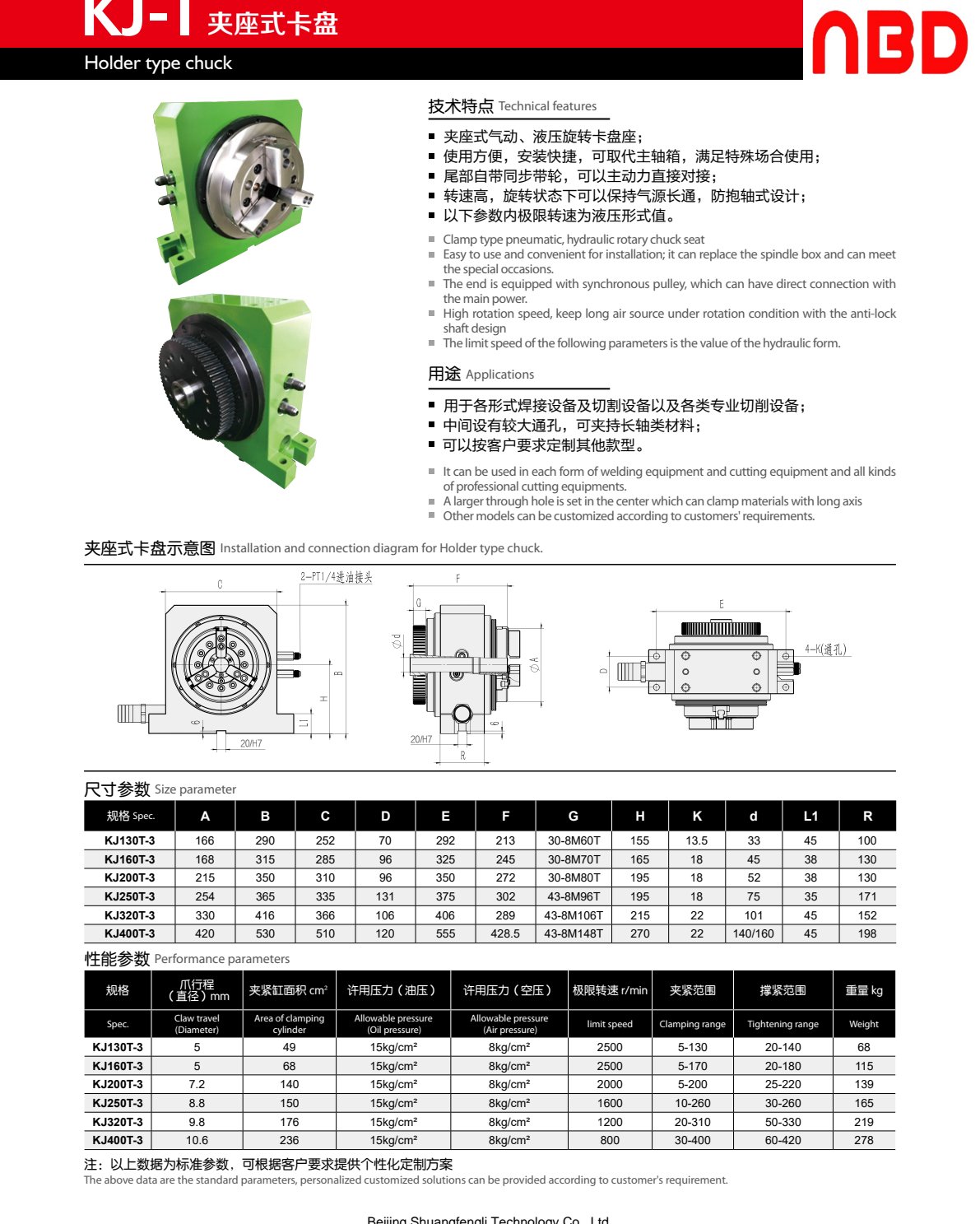

夹座式卡盘示意图 Installation and connection diagram for Holder type chuck. Clamp type pneumatic, hydraulic rotary chuck seat Easy to use and convenient for installation; it can replace the spindle box and can meet the special occasions. The end is equipped with synchronous pulley, which can have direct connection with High rotation speed, keep long air source under rotation condition with the anti-lock
| 规格 爪行程 （直径）mm 夹紧缸面积 cm² 许用压力（油压） 许用压力（空压） 极限转速 r/min 夹紧范围 撑紧范围 重量 kg |
|---|
| (Diameter) |
| (Oil pressure) |
| (Air pressure) limit speed Clamping range Tightening range Weight |
| KJ130T-3 5 49 15kg/cm² 8kg/cm² 2500 5-130 20-140 68 |
| KJ160T-3 5 68 15kg/cm² 8kg/cm² 2500 5-170 20-180 115 |
| KJ200T-3 7.2 140 15kg/cm² 8kg/cm² 2000 5-200 25-220 139 |
| KJ250T-3 8.8 150 15kg/cm² 8kg/cm² 1600 10-260 30-260 165 |
| KJ320T-3 9.8 176 15kg/cm² 8kg/cm² 1200 20-310 50-330 219 |
| KJ400T-3 10.6 236 15kg/cm² 8kg/cm² 800 30-400 60-420 278 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
