High-Speed Hollow Rotary Oil Cylinder (TK) — TK 高速中空回转油缸

TK 高速中空回转油缸（High-Speed Hollow Rotary Oil Cylinder (TK)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.

SKU: NBD-CK-061 Category:

Description

The High-Speed Hollow Rotary Oil Cylinder (TK)（TK 高速中空回转油缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

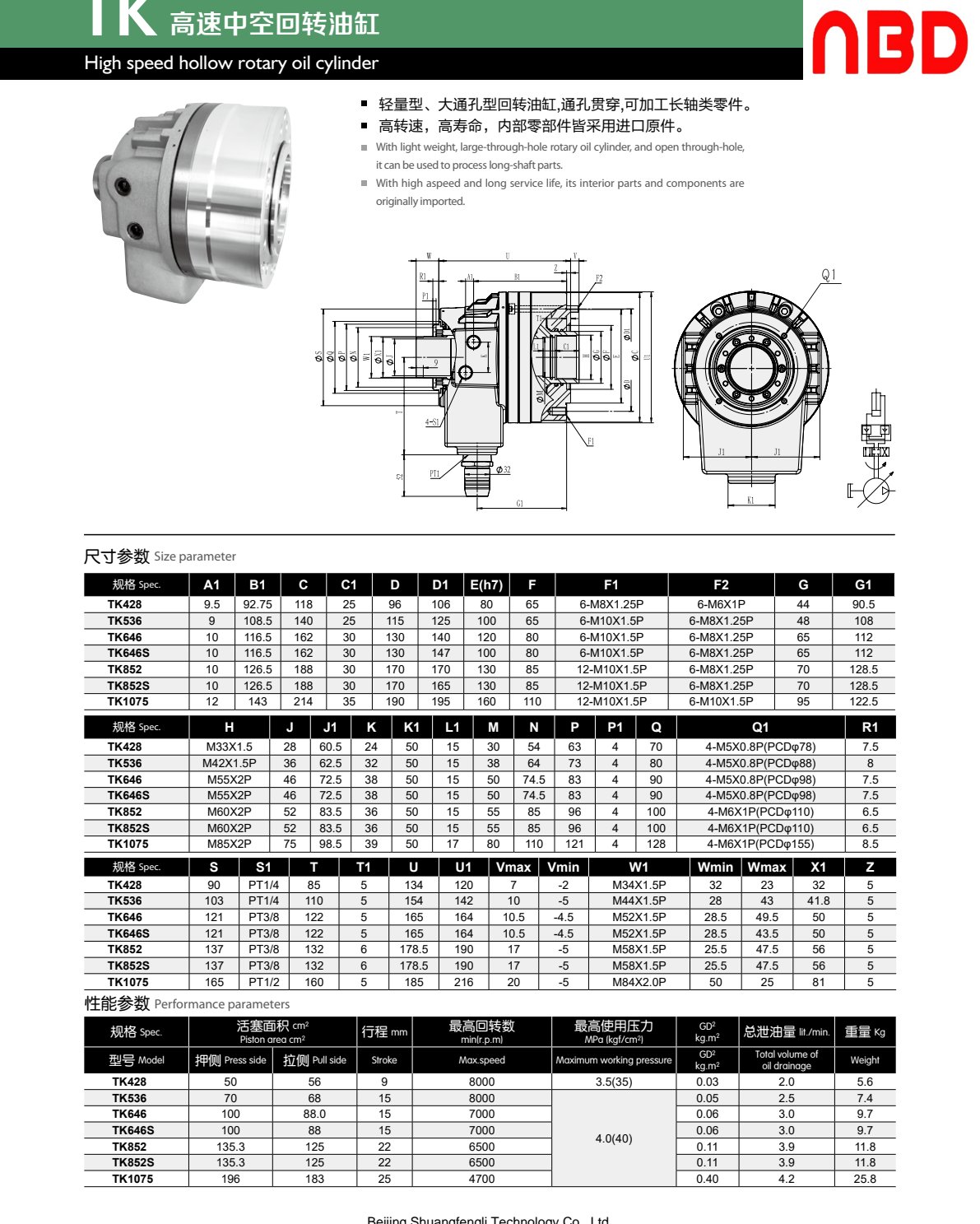

With light weight, large-through-hole rotary oil cylinder, and open through-hole, it can be used to process long-shaft parts. With high aspeed and long service life, its interior parts and components are originally imported. High speed hollow rotary oil cylinder

型号 Model 押侧 Press side 拉侧 Pull side Stroke Max.speed Maximum working pressure GD2
TK428 50 56 9 8000 3.5(35) 0.03 2.0 5.6
TK536 70 68 15 8000
0.05 2.5 7.4
TK646 100 88.0 15 7000 0.06 3.0 9.7
TK646S 100 88 15 7000 0.06 3.0 9.7
TK852 135.3 125 22 6500 0.11 3.9 11.8
TK852S 135.3 125 22 6500 0.11 3.9 11.8
TK1075 196 183 25 4700 0.40 4.2 25.8
69

All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
