Description
The Middle-Solid Rotary Cylinder, Water-Injection (RK-C)（RK-C 中实回转油缸（注水型））is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

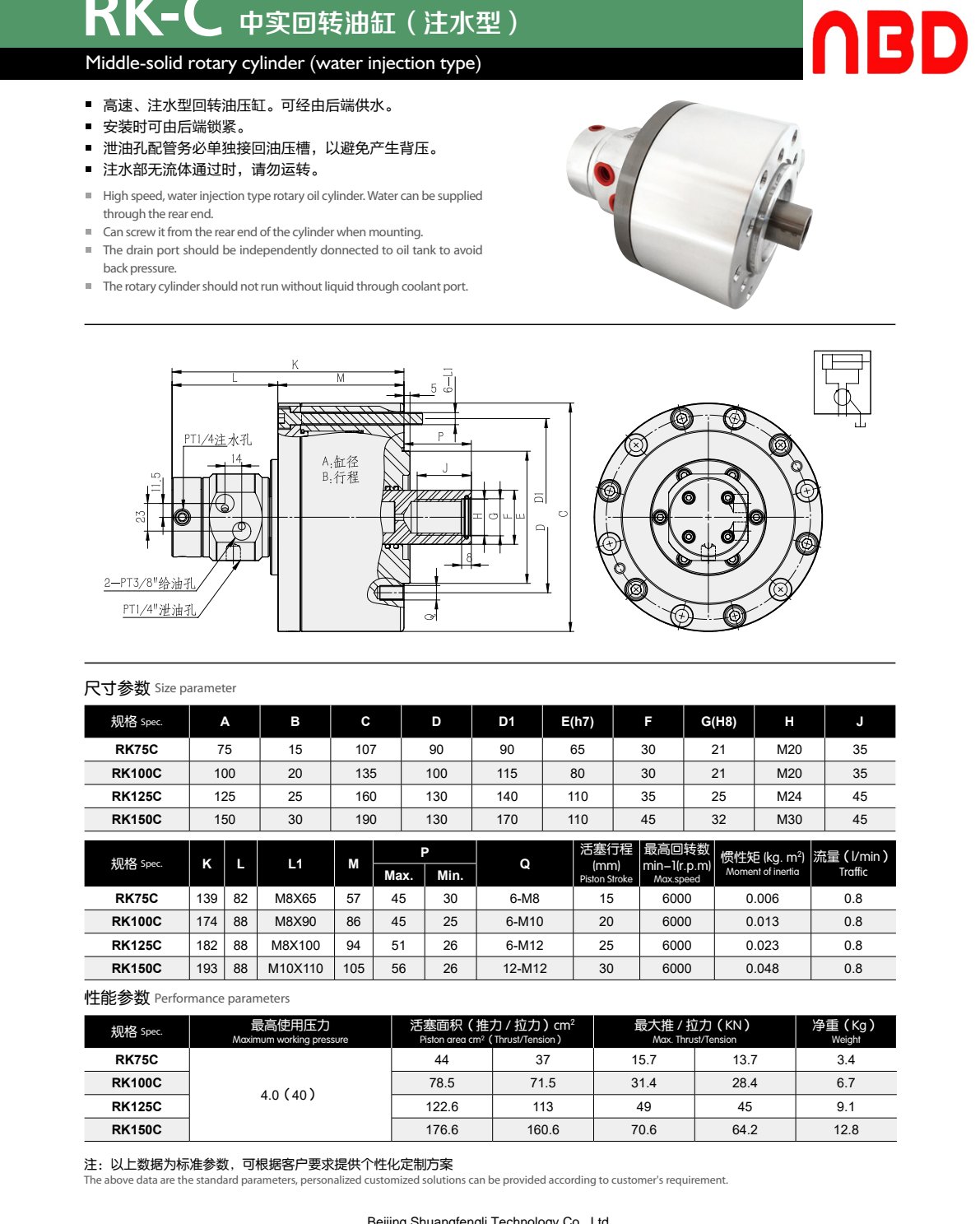

Middle-solid rotary cylinder (water injection type) High speed, water injection type rotary oil cylinder. Water can be supplied through the rear end. Can screw it from the rear end of the cylinder when mounting. The drain port should be independently donnected to oil tank to avoid The rotary cylinder should not run without liquid through coolant port.
| 规格 Spec. 最高使用压力 |
|---|
| 44 37 15.7 13.7 3.4 |
| RK100C 78.5 71.5 31.4 28.4 6.7 |
| RK125C 122.6 113 49 45 9.1 |
| RK150C 176.6 160.6 70.6 64.2 12.8 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
