Description
The Hollow Double-Piston Rotary Air Cylinder (RQ-B)（RQ-B 中空双活塞回转气缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
Large through-hole, double piston design, and the pull force can increase 1 times. The hole is through out for processing of parts with The valve body is specially designed with lightweight and high rotation, which can reduce the consumption of the compressed air, give full play to the high efficient and economic effectiveness. Internal components and parts are imported with balanced movement

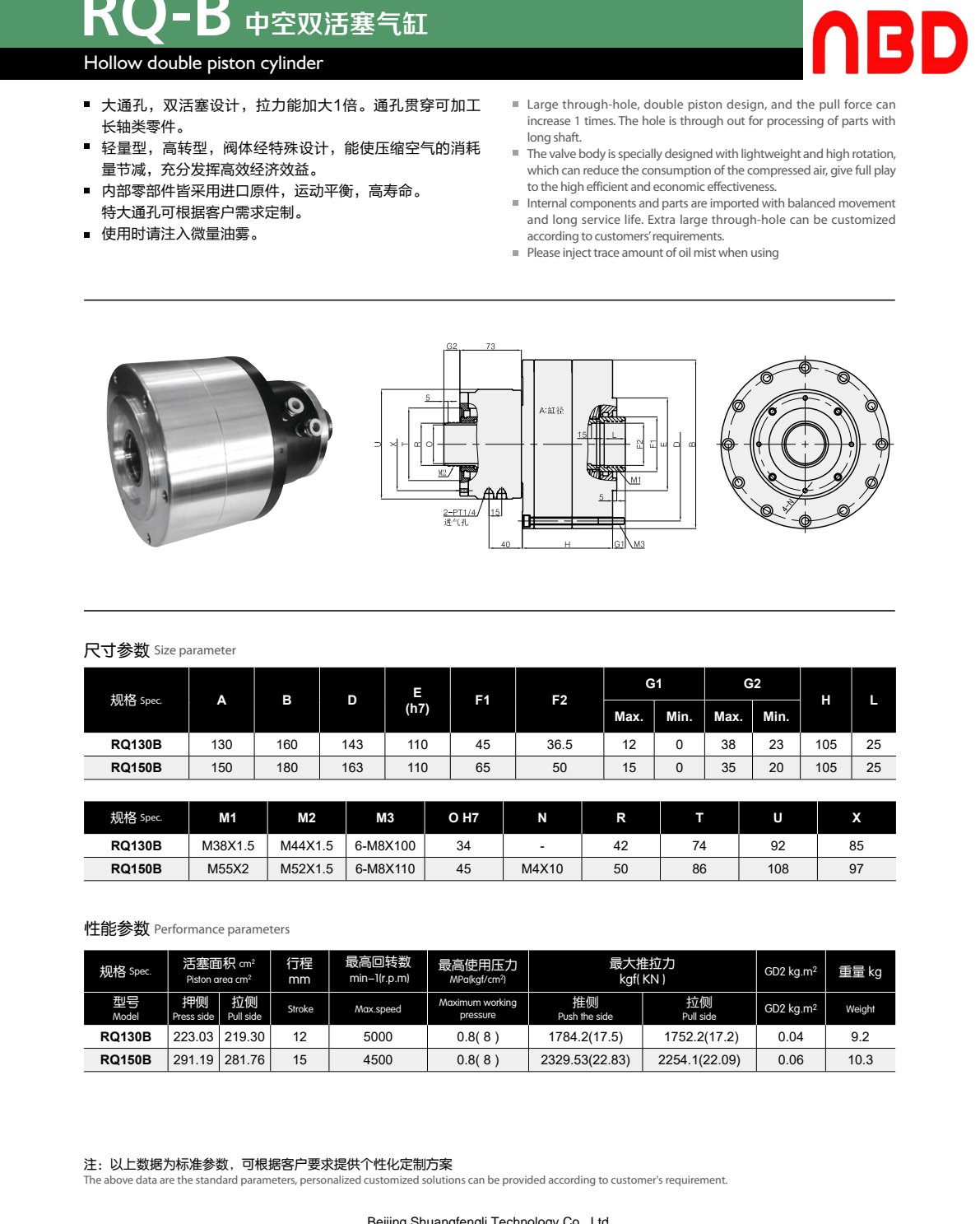

| 规格 Spec. 活塞面积 cm2 |
|---|
| RQ130B 223.03 219.30 12 5000 0.8( 8 ) 1784.2(17.5) 1752.2(17.2) 0.04 9.2 |
| RQ150B 291.19 281.76 15 4500 0.8( 8 ) 2329.53(22.83) 2254.1(22.09) 0.06 10.3 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
