Description
The Middle-Solid Rotary Cylinder, Air-Injection (RK-Q)（RK-Q 中实回转油缸（注气型））is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

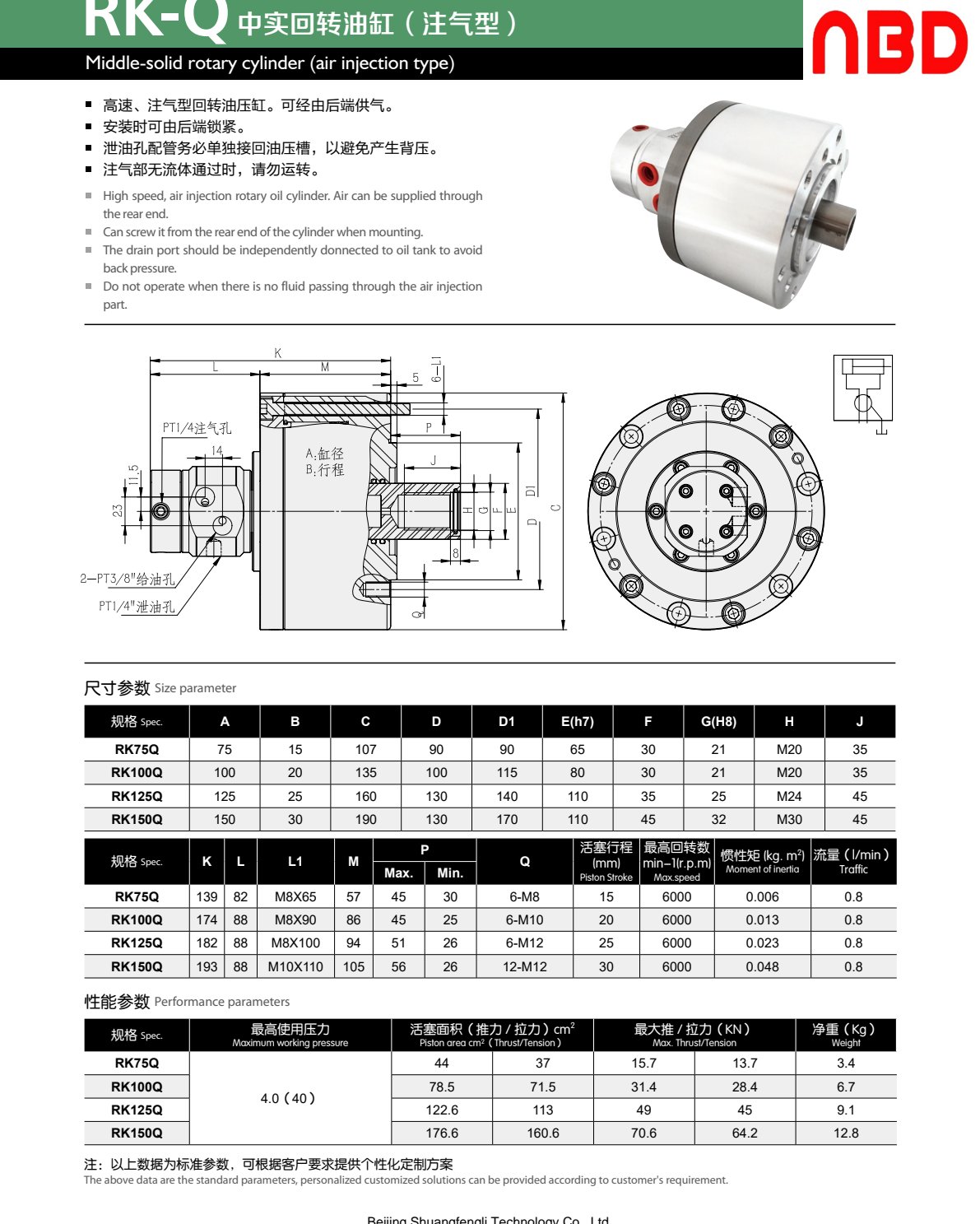

Middle-solid rotary cylinder (air injection type) High speed, air injection rotary oil cylinder. Air can be supplied through Can screw it from the rear end of the cylinder when mounting. The drain port should be independently donnected to oil tank to avoid Do not operate when there is no fluid passing through the air injection
| 规格 Spec. 最高使用压力 |
|---|
| 44 37 15.7 13.7 3.4 |
| RK100Q 78.5 71.5 31.4 28.4 6.7 |
| RK125Q 122.6 113 49 45 9.1 |
| RK150Q 176.6 160.6 70.6 64.2 12.8 |
| 68 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
