HSK-T Turning Tool Holder SCLCR | SCLCL 95°/80° (Positive, CNMG)
Mill-turn combined tool holder HSK63T series for CNMG inserts with 95°/80° cutting geometry, fits HSK63T turrets, 8 models in stock range. Factory-direct from NBD (Beijing Shuangfengli) — custom sizes on request.
Description
The HSK-T Turning Tool Holder SCLCR | SCLCL 95°/80° (Positive, CNMG) is part of NBD’s HSK-T turning-milling combined tool holder line for CNC mill-turn centers and turning centers with HSK-T turrets. It is designed for external turning and facing on mill-turn centers, holding ISO CNMG inserts with 95°/80° geometry. Available in HSK63T interfaces with 8 catalogue models covering common lengths and insert sizes.
Insert: CNMG (80° rhombic). Right-hand (R) and left-hand (L) versions are listed where available; codes ending in N are neutral.
Model Naming
Example — HSK63T-SCLCR-22125-12: HSK63T = taper size; S = insert clamping way; C = insert shape (CNMG); L = holder lead angle; C = insert clearance angle; R = cutting direction (R/L/N); 22125 = f (mm); 12 = insert size.

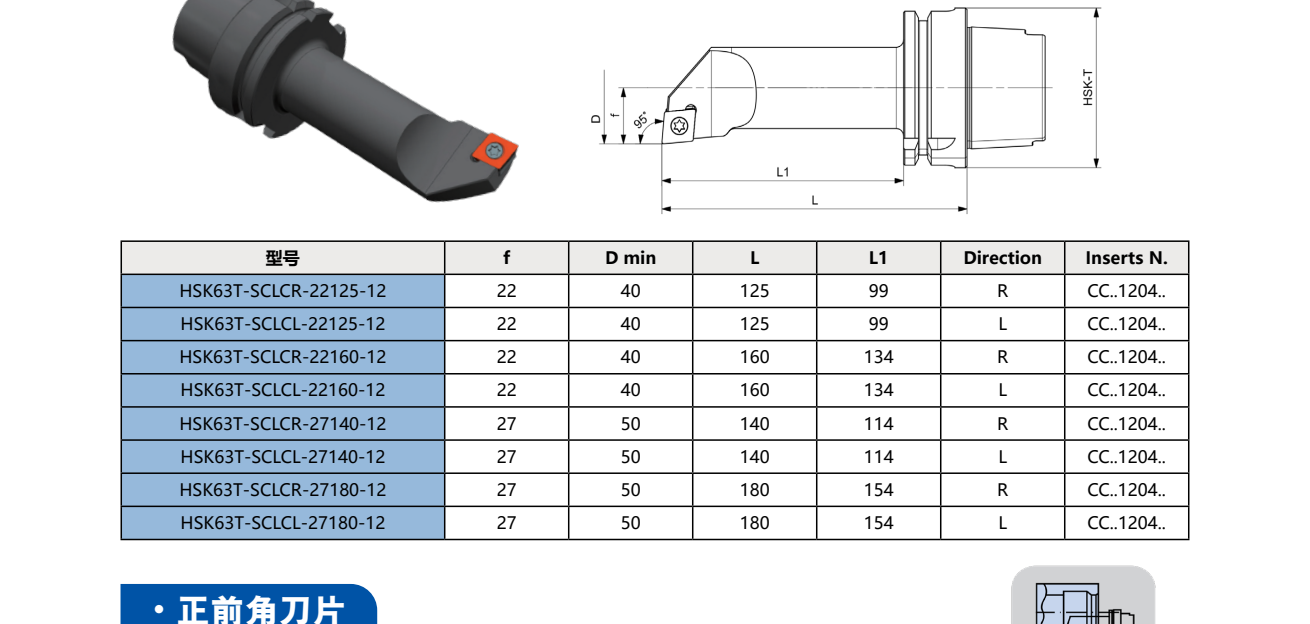

Specification
| 型号 | f | D min | L | L1 | Direction | Inserts N. |
|---|---|---|---|---|---|---|
| HSK63T-SCLCR-22125-12 | 22 | 40 | 125 | 99 | R | CC..1204.. |
| HSK63T-SCLCL-22125-12 | 22 | 40 | 125 | 99 | L | CC..1204.. |
| HSK63T-SCLCR-22160-12 | 22 | 40 | 160 | 134 | R | CC..1204.. |
| HSK63T-SCLCL-22160-12 | 22 | 40 | 160 | 134 | L | CC..1204.. |
| HSK63T-SCLCR-27140-12 | 27 | 50 | 140 | 114 | R | CC..1204.. |
| HSK63T-SCLCL-27140-12 | 27 | 50 | 140 | 114 | L | CC..1204.. |
| HSK63T-SCLCR-27180-12 | 27 | 50 | 180 | 154 | R | CC..1204.. |
| HSK63T-SCLCL-27180-12 | 27 | 50 | 180 | 154 | L | CC..1204.. |
All dimensions in mm. Other sizes, HSK100T versions or custom geometries can be manufactured on request — send us your drawing for a fast quote.
NBD (Beijing Shuangfengli Technology Co., Ltd.) manufactures CNC tool holders and workholding with short lead times and factory-direct support for worldwide distributors and end users.
Additional information
| Taper | HSK63T |
|---|---|
| Insert Shape | CNMG |
| Hand | N |
| Models | 8 |
