Chuck for Laser Cutting Machine (JQ) — JQ 激光切割机专用卡盘

JQ 激光切割机专用卡盘（Chuck for Laser Cutting Machine (JQ)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.

SKU: NBD-CK-JQ120-2 Categories: ,

Description

The Chuck for Laser Cutting Machine (JQ)（JQ 激光切割机专用卡盘）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

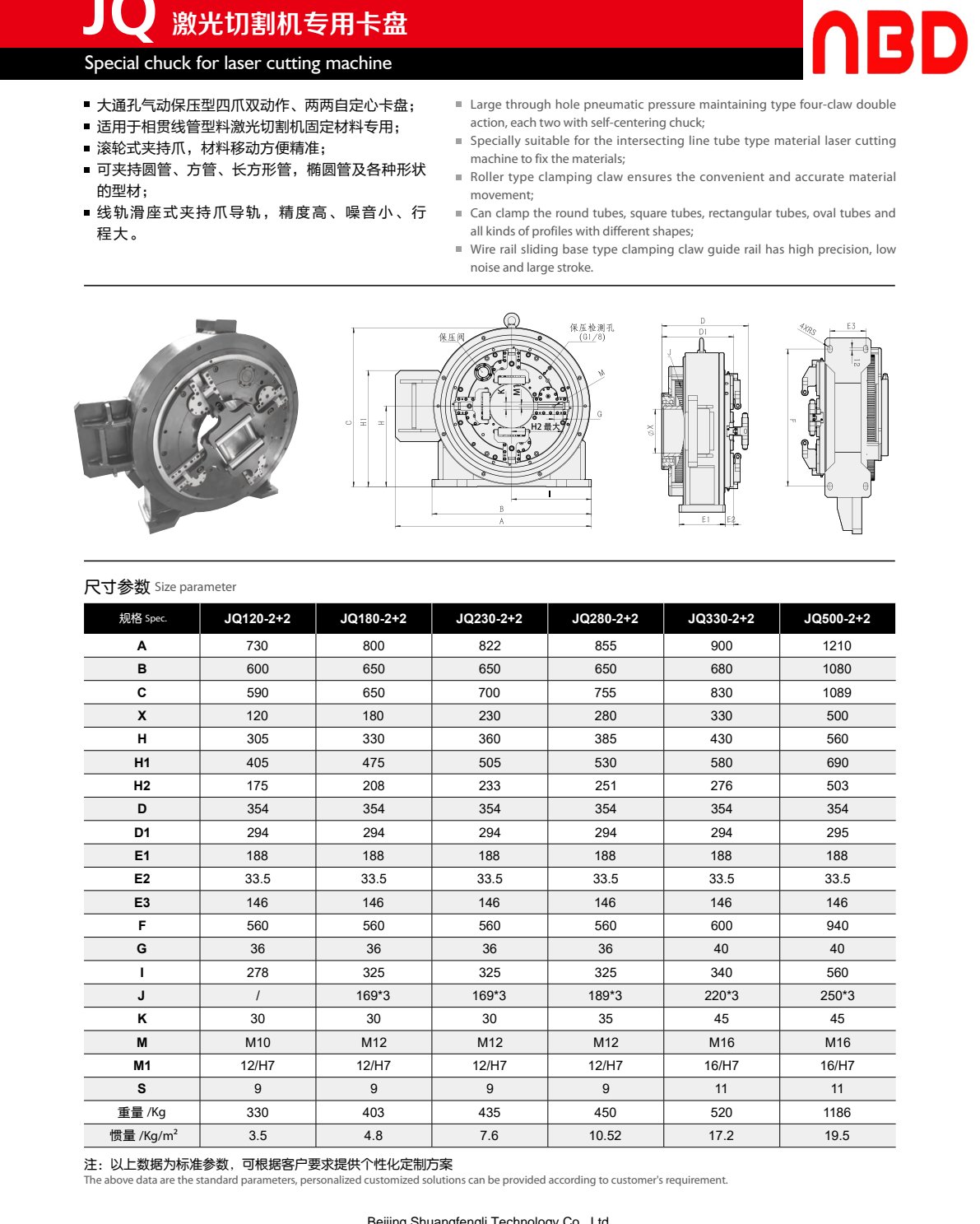

Special chuck for laser cutting machine Large through hole pneumatic pressure maintaining type four-claw double action, each two with self-centering chuck; Specially suitable for the intersecting line tube type material laser cutting machine to fix the materials; Roller type clamping claw ensures the convenient and accurate material

规格 Spec. JQ120-2+2 JQ180-2+2 JQ230-2+2 JQ280-2+2 JQ330-2+2 JQ500-2+2
A 730 800 822 855 900 1210
B 600 650 650 650 680 1080
C 590 650 700 755 830 1089
X 120 180 230 280 330 500
H 305 330 360 385 430 560
H1 405 475 505 530 580 690
H2 175 208 233 251 276 503
D 354 354 354 354 354 354
D1 294 294 294 294 294 295
E1 188 188 188 188 188 188
E2 33.5 33.5 33.5 33.5 33.5 33.5
E3 146 146 146 146 146 146
F 560 560 560 560 600 940
G 36 36 36 36 40 40
I 278 325 325 325 340 560
J / 169*3 169*3 189*3 220*3 250*3
K 30 30 30 35 45 45
M1 12/H7 12/H7 12/H7 12/H7 16/H7 16/H7
S 9 9 9 9 11 11

All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.
