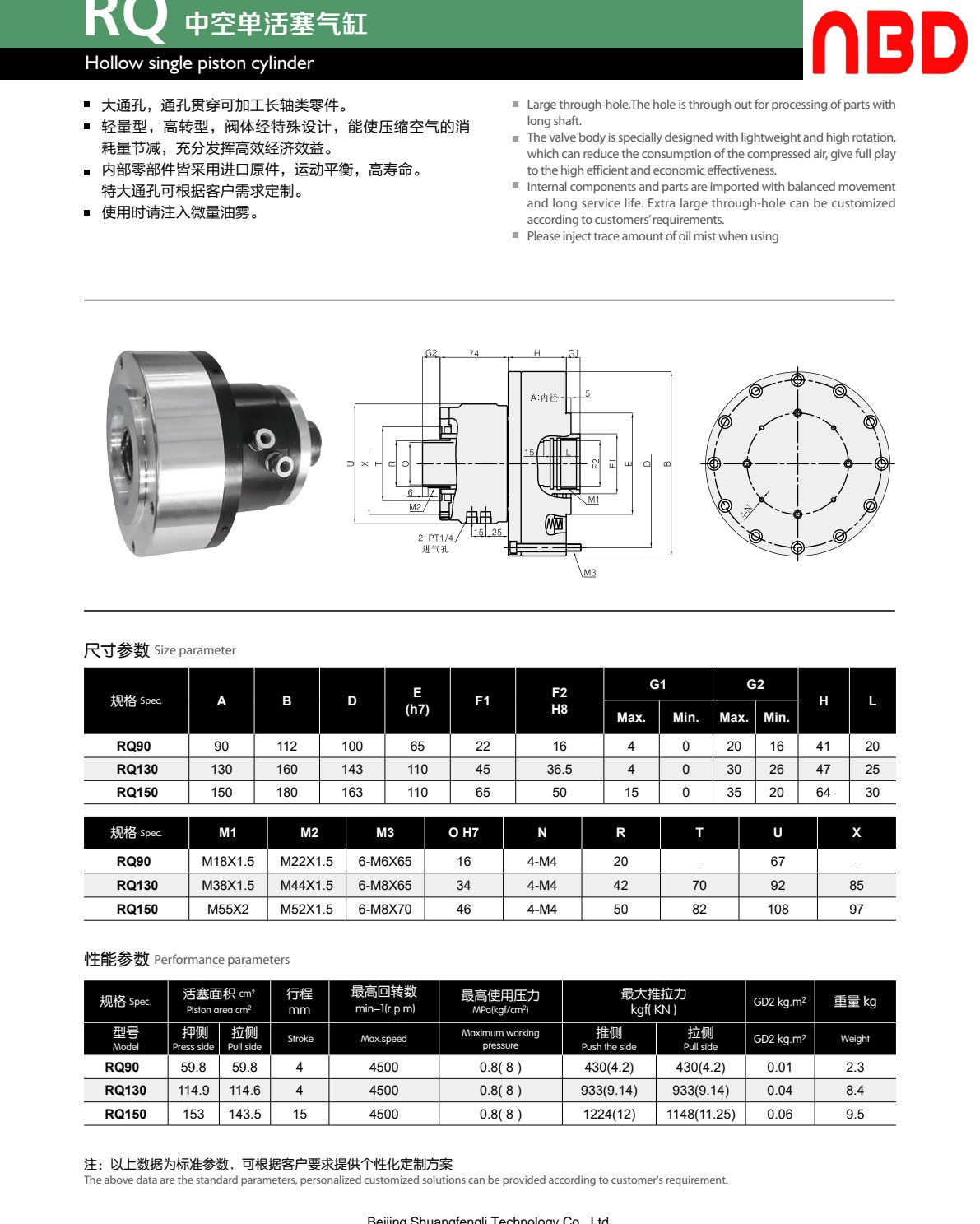

Hollow Single-Piston Rotary Air Cylinder (RQ) — RQ 中空单活塞回转气缸
RQ 中空单活塞回转气缸（Hollow Single-Piston Rotary Air Cylinder (RQ)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Hollow Single-Piston Rotary Air Cylinder (RQ)（RQ 中空单活塞回转气缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
Hollow single piston cylinder Large through-hole,The hole is through out for processing of parts with The valve body is specially designed with lightweight and high rotation, which can reduce the consumption of the compressed air, give full play to the high efficient and economic effectiveness. Internal components and parts are imported with balanced movement
| 规格 Spec. 活塞面积 cm2 |
|---|
| RQ90 59.8 59.8 4 4500 0.8( 8 ) 430(4.2) 430(4.2) 0.01 2.3 |
| RQ130 114.9 114.6 4 4500 0.8( 8 ) 933(9.14) 933(9.14) 0.04 8.4 |
| RQ150 153 143.5 15 4500 0.8( 8 ) 1224(12) 1148(11.25) 0.06 9.5 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
