Solid High-Speed Rotary Air Cylinder (KH) — KH 高速中实回转气缸

KH 高速中实回转气缸（Solid High-Speed Rotary Air Cylinder (KH)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.

SKU: NBD-CK-052 Category:

Description

The Solid High-Speed Rotary Air Cylinder (KH)（KH 高速中实回转气缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.

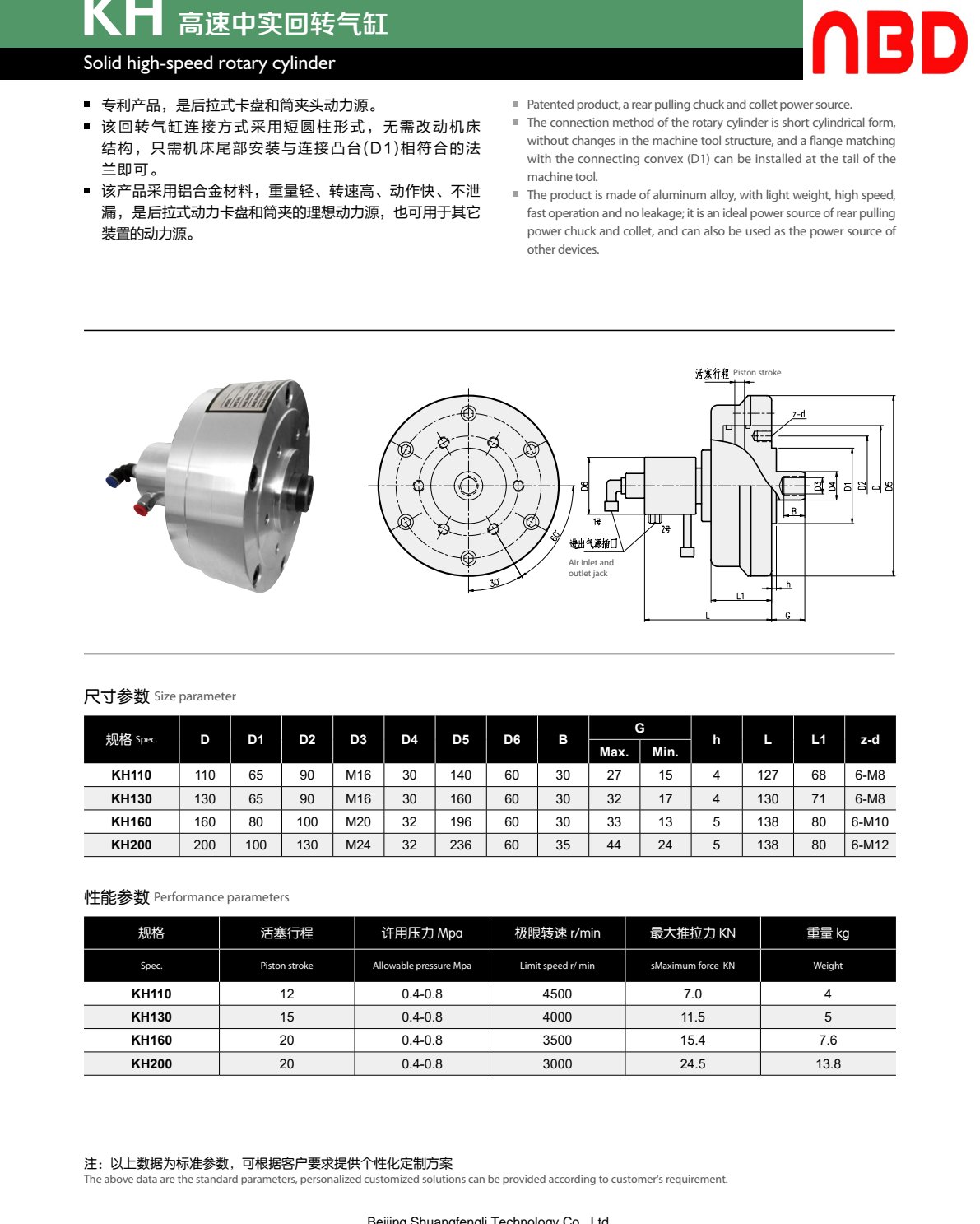

Patented product, a rear pulling chuck and collet power source. The connection method of the rotary cylinder is short cylindrical form, without changes in the machine tool structure, and a flange matching with the connecting convex (D1) can be installed at the tail of the The product is made of aluminum alloy, with light weight, high speed, fast operation and no leakage; it is an ideal power source of rear pulling

规格 活塞行程 许用压力 Mpa 极限转速 r/min 最大推拉力 KN 重量 kg
KH110 12 0.4-0.8 4500 7.0 4
KH130 15 0.4-0.8 4000 11.5 5
KH160 20 0.4-0.8 3500 15.4 7.6
KH200 20 0.4-0.8 3000 24.5 13.8

All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.

FAQ

What is your minimum order quantity (MOQ)?

For standard models the MOQ is 1 piece, and single-piece sample orders are welcome. For customized products or large-volume orders, the MOQ is quoted per model and specification.

What is your lead time?

In-stock items are shipped within 3-7 days after payment. Made-to-order items take 15-60 days, depending on the model and quantity.

How do you ship the goods?

We ship by international express (DHL, FedEx, UPS, EMS) for small orders, and by sea for bulk orders. The shipping method is arranged according to customer requirements.

Do you support OEM / ODM?

Yes. We support both OEM and ODM, including private labeling and manufacturing strictly from customer drawings or samples.

What payment methods do you accept?

Our standard payment method is T/T (bank transfer).

What is the warranty period?

All our products come with a one-year warranty.
