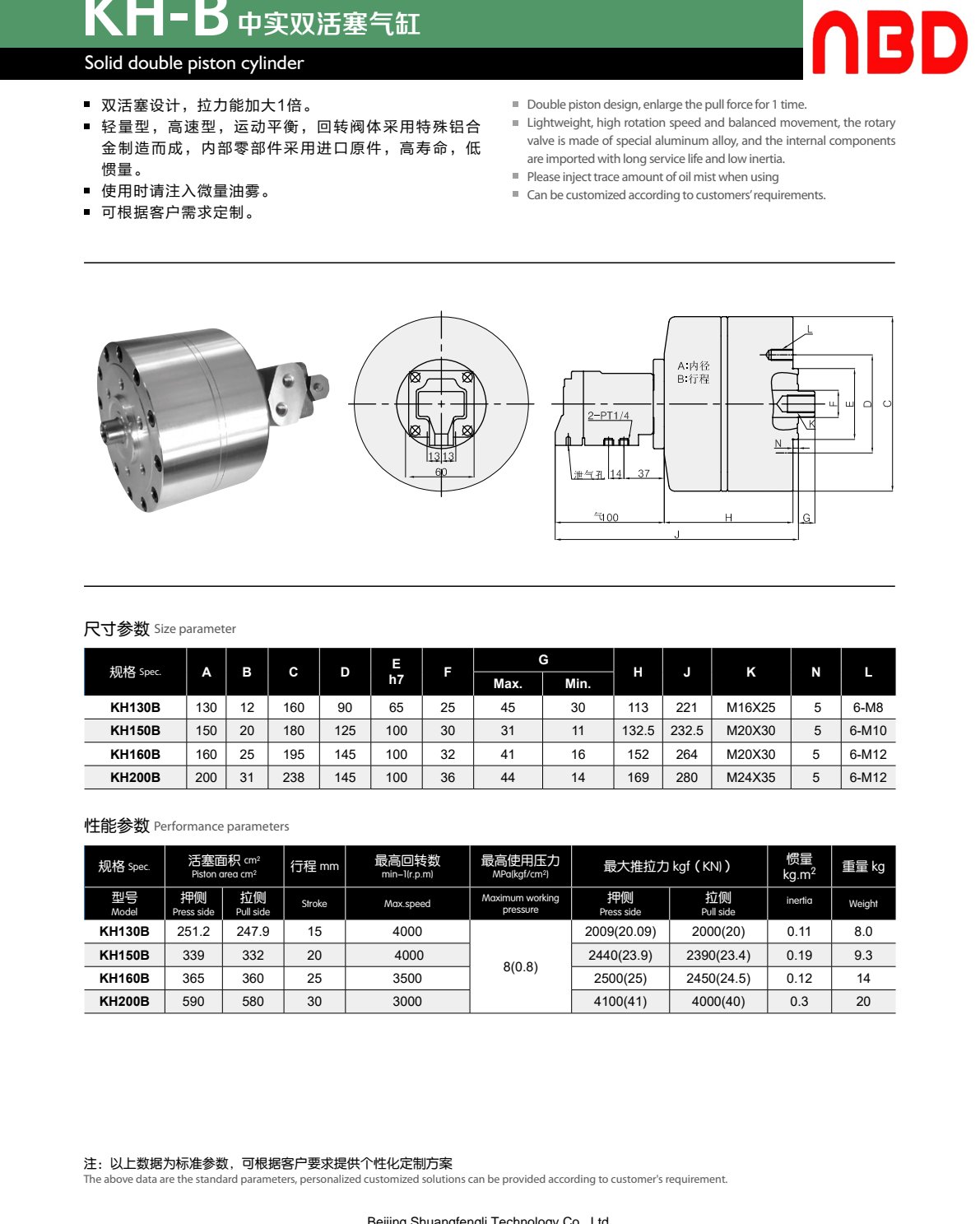

Solid Double-Piston Rotary Air Cylinder (KH-B) — KH-B 中实双活塞回转气缸
KH-B 中实双活塞回转气缸（Solid Double-Piston Rotary Air Cylinder (KH-B)）— factory-direct from NBD (Beijing Shuangfengli). Custom sizes available; fast worldwide delivery.
Description
The Solid Double-Piston Rotary Air Cylinder (KH-B)（KH-B 中实双活塞回转气缸）is part of NBD’s power chuck and rotary cylinder line for CNC lathes, machining centers and dedicated machines. Beijing Shuangfengli (NBD Machinery) supplies chucks and cylinders factory-direct with short lead times, custom bore/pipe options and worldwide support.
Double piston design, enlarge the pull force for 1 time. Lightweight, high rotation speed and balanced movement, the rotary valve is made of special aluminum alloy, and the internal components are imported with long service life and low inertia. Please inject trace amount of oil mist when using Can be customized according to customers’ requirements.
| 规格 Spec. 活塞面积 cm2 |
|---|
| KH130B 251.2 247.9 15 4000 |
| KH150B 339 332 20 4000 2440(23.9) 2390(23.4) 0.19 9.3 |
| KH160B 365 360 25 3500 2500(25) 2450(24.5) 0.12 14 |
| KH200B 590 580 30 3000 4100(41) 4000(40) 0.3 20 |
All dimensions in mm; data above are standard parameters — customized bores, jaws and connections available on request. Send your drawing for a fast quote.
